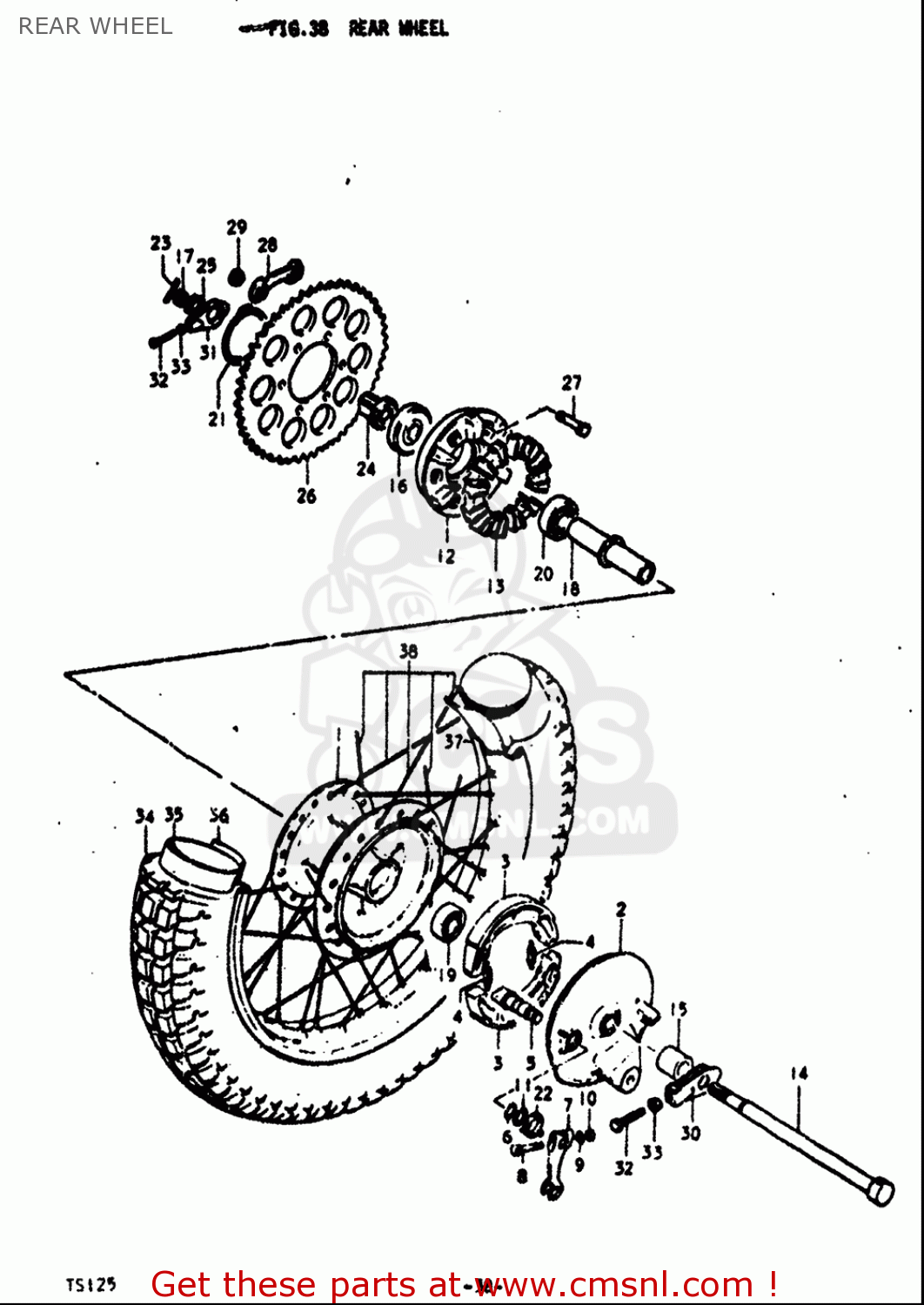

REAR WHEEL

ref

part #

description

quantity

4

0944307025
ref: 4

SPRING(L:35.8)

€ 2.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

8

0910006150
ref: 8

BOLT(6X31)

€ 1.50

9

0832201067
ref: 9

WASHER

€ 2.00

10

0831000067
ref: 10

NUT

€ 2.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

13

6465028002
ref: 13

ABSORBER,RR WHEEL HUB SHOCK

€ 15.00

14

6471141300
ref: 14

AXLE,REAR

€ 78.50

15

0918015038
ref: 15

SPACER(15.2X22X26)

€ 7.00

16

6475028000
ref: 16

SPACER,RR AXLE,L

€ 11.50

17

0831431128
ref: 17

NUT 12MM

€ 2.00

19

0814362027
ref: 19

BEARING

€ 12.50

20

08123C63027J000
ref: 20

B1 15X42X13 BEA

€ 0.00

21

0833131558
ref: 21

CIRCLIP

€ 4.00

22

0944827003
ref: 22

SPRING

€ 7.00

23

041113030A
ref: 23

PIN

€ 1.50

24-2

6479128001
ref: 24-2

SPACER,CHAIN ADJUSTER,L

€ 12.00

25

0914018501
ref: 25

NUT

€ 3.00

26-2

6451128700
ref: 26-2

SPROCKET,RR

€ 57.00

27-1

0910508006
ref: 27-1

BOLT(8X32)

€ 2.00

27-2

0910508001
ref: 27-2

BOLT(8X33.5)

€ 2.50

28

0916908013
ref: 28

WASHER

€ 2.50

29

0831000087
ref: 29

NUT

€ 2.00

30-2

6141028004A
ref: 30-2

ADJUSTER,CHAIN

€ 8.00

31-2

6142028003
ref: 31-2

ADJUSTER,CHAIN,L

€ 11.00

32-1

0910006065
ref: 32-1

BOLT(6X38)

€ 2.50

32-2

0910008146
ref: 32-2

BOLT(8X40)

€ 2.50

33-1

0831000067
ref: 33-1

NUT

€ 2.50

33-2

0831000087
ref: 33-2

NUT

€ 2.00

35

6520044AA0
ref: 35

TUBE ASSY,INNER

€ 35.00

36

5526111010
ref: 36

PROTECTOR,INNER TUBE

€ 3.50
