HANDLE SWITCH RH
TS125 1971 1972 (R) (J) USA (E03)

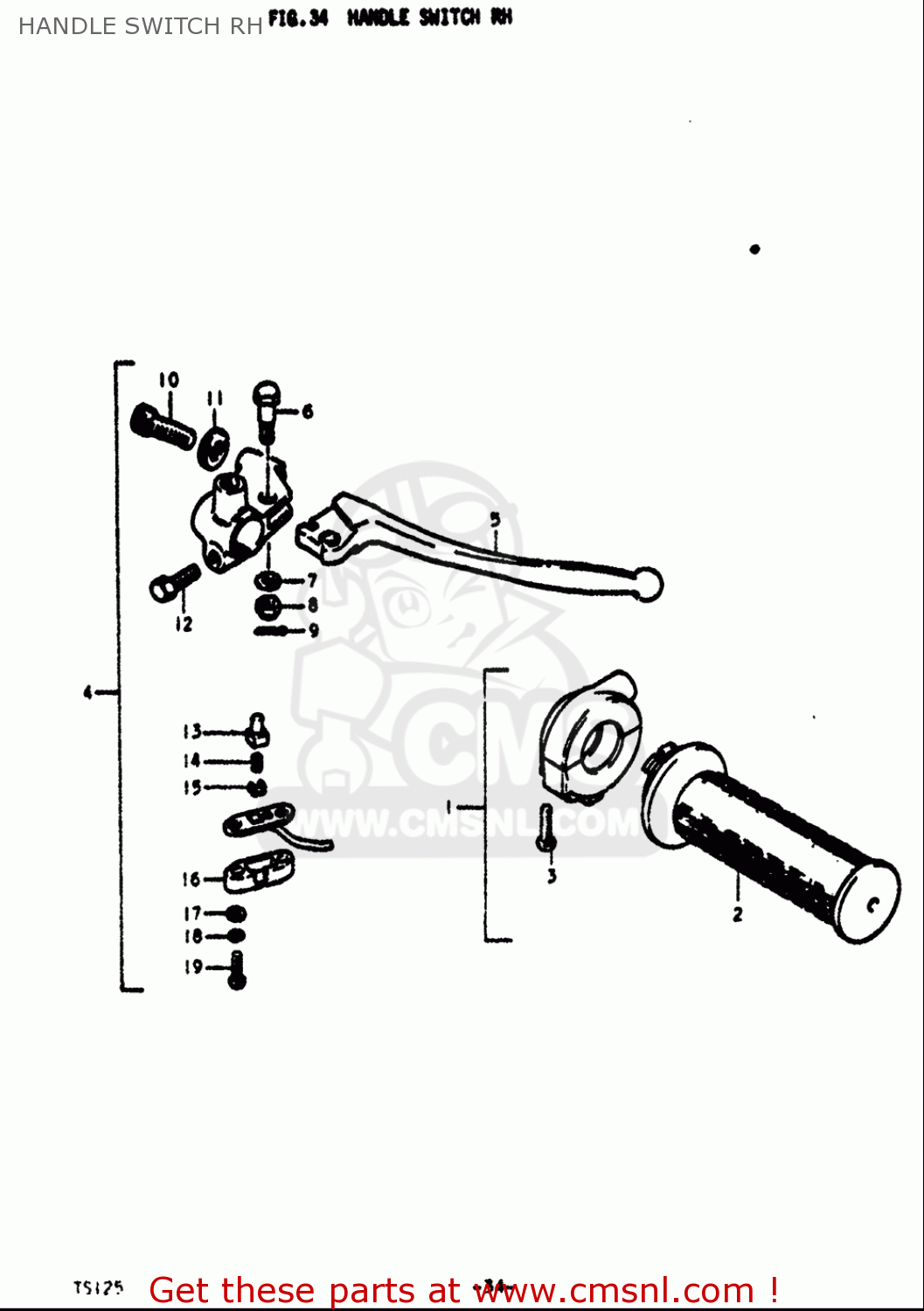

Handle switch rh diagram TS125 1971 1972 (R) (J) USA (E03)
HANDLE SWITCH RH TS125 1971 1972 (R) (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710028010
ref: 1
GRIP ASSY,THROTTLE
€ 65.50
2
5711028010
ref: 2
GRIP,THROTTLE
€ 26.50
3
0211205207
ref: 3
SCREW
€ 3.00
4
5730030501
ref: 4
BRAKE LEVER & SWITCH ASSY
€ 59.00
5
5742018602
ref: 5
LEVER,BRAKE
€ 37.00
6
5743111013
ref: 6
BOLT,LEVER PIVOT
€ 6.00
7
0832101067
ref: 7
WASHER,LOCK
€ 2.50
8
5743311010
ref: 8
NUT,LEVER FITTNG
€ 5.50
9
0411116208
ref: 9
PIN 16X20
€ 2.00
10
5744111010
ref: 10
ADJUSTER,CABLE
€ 8.00
11
5744211010
ref: 11
NUT,CABLE ADJUSTER
€ 4.00
12
0150006207
ref: 12
BOLT
€ 2.00
13
5746518601
ref: 13
CONTACT,SWITCH
€ 4.50
14
5746518601
ref: 14
CONTACT,SWITCH
€ 4.50
15
5746518601
ref: 15
CONTACT,SWITCH
€ 4.50
16
5748133010
ref: 16
COVER,FR BK TERMINAL BASE
€ 19.50
17
0832201037
ref: 17
WASHER
€ 2.00
18
0916203001
ref: 18
WASHER,LOCK
€ 1.50
19
0912503105
ref: 19
SCREW
€ 2.50
