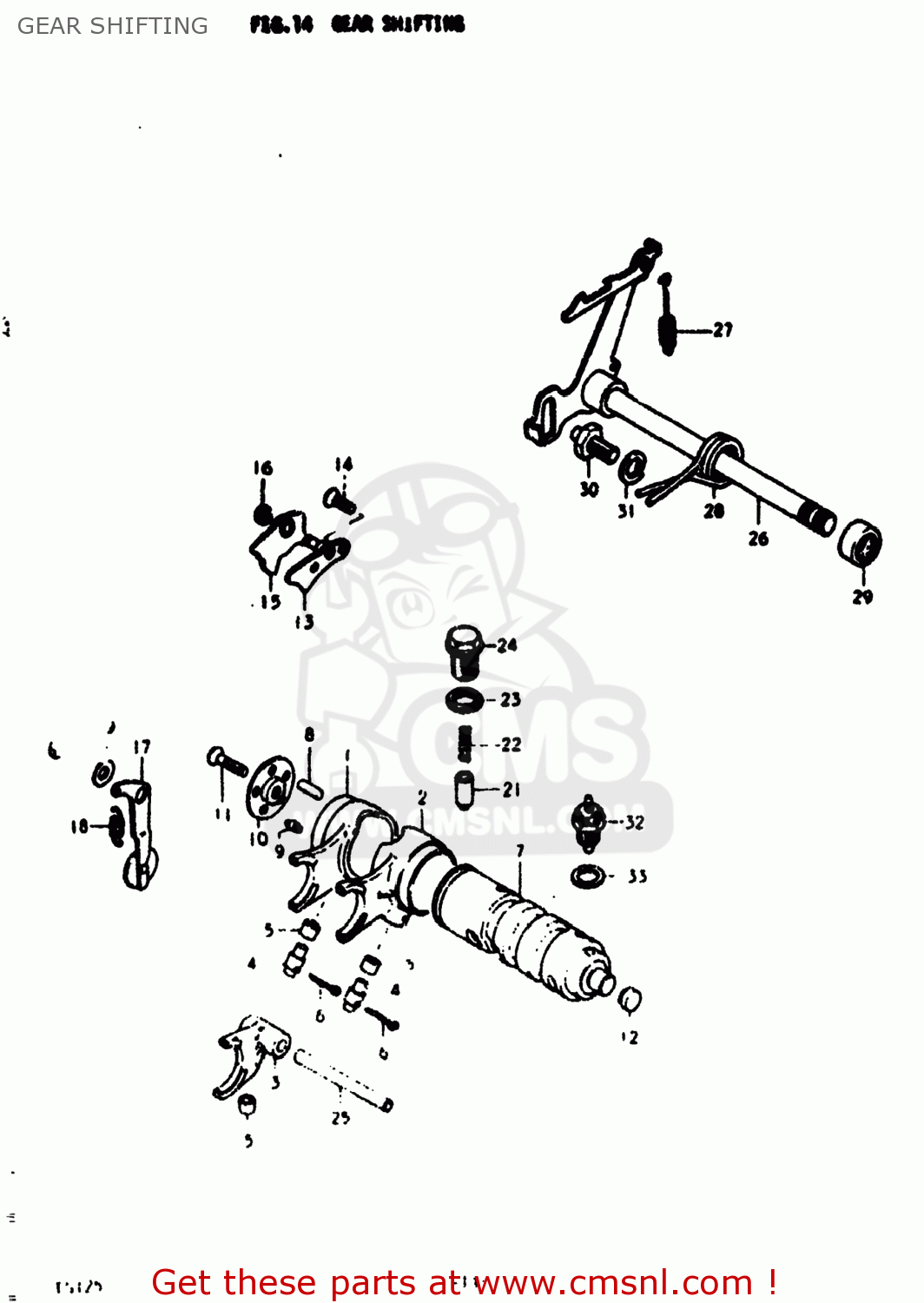

GEAR SHIFTING

ref

part #

description

quantity

1

2521128001
ref: 1
25211-28002

FORK,GEAR SHIFT NO.1

€ 58.50

2

2522128001
ref: 2
25221-28002

FORK,GEAR SHIFT NO.2

€ 25.00

3

2523128001
ref: 3

FORK,GEAR SHIFT NO.3

€ 28.50

4-1

0920910003
ref: 4-1

PIN

€ 8.50

4-2

0920910002
ref: 4-2

PIN

€ 8.50

5

0918006004
ref: 5
09180-06086

SPACER

€ 2.50

6

0411125208
ref: 6
04111-2520A

PIN 25X20

€ 2.00

7-1

2531028700
ref: 7-1

CAM,GEAR SHIFT

€ 30.50

7-2

2531028701
ref: 7-2

CAM,GEAR SHIFT

€ 30.50

8

0926104002
ref: 8

ROLLER(4X13.8)

€ 1.50

9-1

0920904006
ref: 9-1

PIN

€ 2.50

9-2

0920904012
ref: 9-2

PIN

€ 2.50

10

2532228030
ref: 10

RETAINER,GEAR SHIFT CAM DR PIN

€ 6.50

11

0212206208
ref: 11
02122-0620A

SCREW

€ 2.00

12

0924312002
ref: 12

PLUG

€ 1.50

13

2534012101
ref: 13

GUIDE,GEAR SHIFT CAM

€ 11.50

14

0212206168
ref: 14
02122-06167

SCREW

€ 2.00

15-1

2537012100
ref: 15-1
25370-12101

PAWL,GEAR SHIFTING CAM

€ 5.50

15-2

2537012101
ref: 15-2

PAWL,GEAR SHIFT CAM STOPPER

€ 5.50

16

0833211059
ref: 16
08332-1105A

E RING

€ 1.50

17

2535028001
ref: 17

STOPPER,GEAR SHIFT CAM

€ 12.00

18

0944307014
ref: 18

SPRING

€ 2.00

19

0916006022
ref: 19

WASHER(6.5X16X2.3)

€ 1.50

20

0911106003
ref: 20

BOLT(6X16.1)

€ 1.50

21

2535118000
ref: 21
25351-39300

STOPPER,GEAR SHIFTING

€ 5.00

22

0944005018
ref: 22

SPRING

€ 14.00

23

0916814004
ref: 23

GASKET(14X19.2X2) (NAS)

€ 2.50

24

2535211000
ref: 24
25352-11010

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

25

2541105100
ref: 25

SHAFT,GEAR SHIFT FORK

€ 5.50

26-1

2551028000
ref: 26-1
25510-28001

SHAFT,GEAR SHIFT

€ 77.00

26-2

2551028300
ref: 26-2
25510-283V0

SHAFT,GEAR SHIFT

€ 61.00

27

0944306008
ref: 27

SPRING

€ 2.00

28

0944426008
ref: 28

SPRING

€ 4.50

29

0928512002
ref: 29
09285-12006

OIL SEAL

€ 7.00

30

2567119000
ref: 30

STOPPER,GEAR SHIFT ARM

€ 5.50

31

0832121108
ref: 31
08321-01107

LOCK WASHER

€ 2.00

32

3771028000
ref: 32

SWITCH ASSEMBLY,NEUTRAL INDICATOR

€ 9.50

33

0916812001
ref: 33

GASKET(12.5X20X1) (NAS)

€ 1.50
