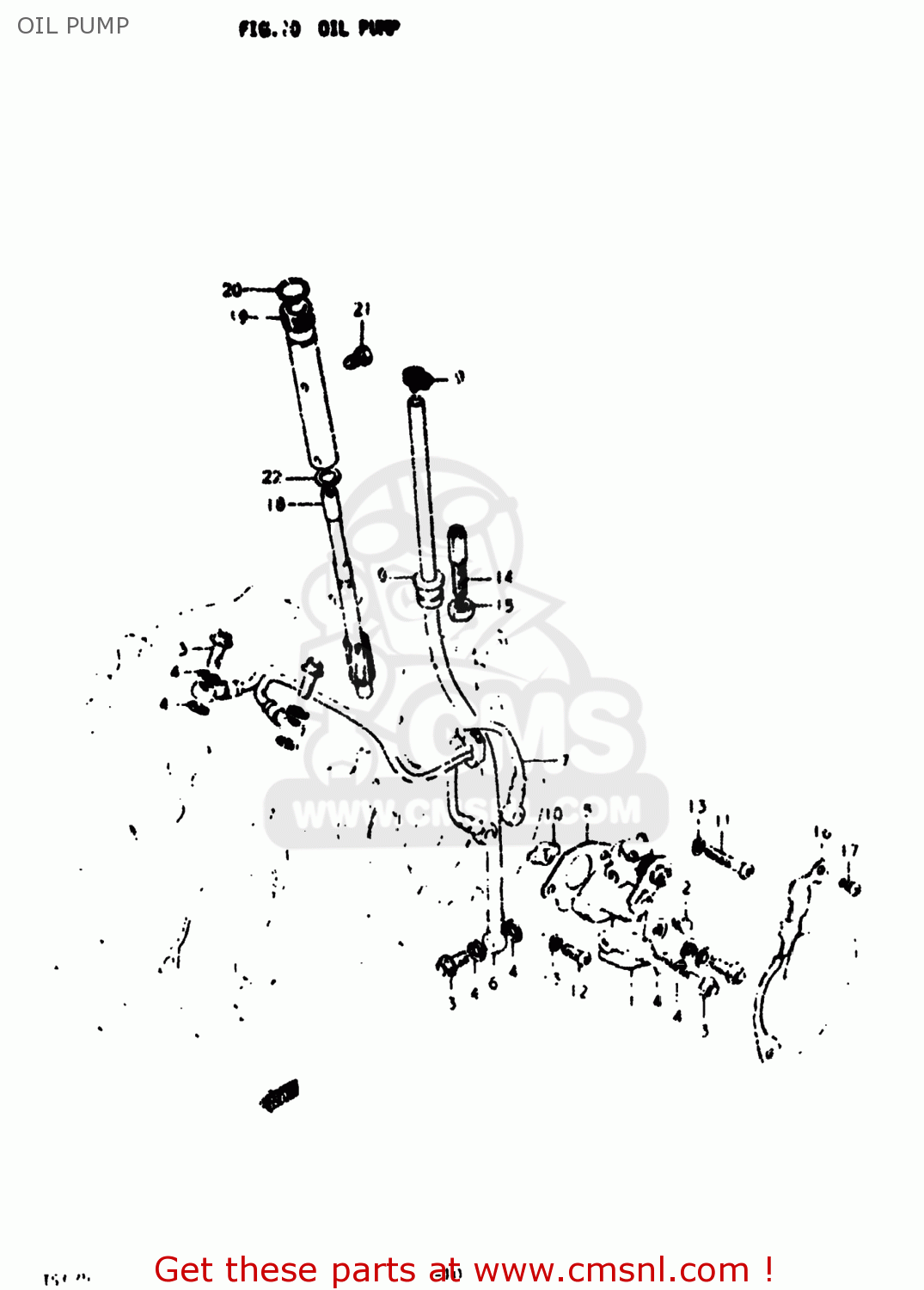

OIL PUMP

ref

part #

description

quantity

1

1610028010
ref: 1

PUMP ASSEMBLY,OIL

€ 223.00

2-1

1629203110
ref: 2-1
16292-03112

TERMINAL,CABLE

€ 3.50

2-2

1629203111
ref: 2-2
16292-03112

TERMINAL,CABLE

€ 3.50

3

0936006003
ref: 3

UNION BOLT

€ 5.00

4-1

0916806002
ref: 4-1
09168-06004

GASKET (NAS)

€ 1.50

4-2

0916806004
ref: 4-2

GASKET(6.2X11X1).2 (NAS)

€ 1.50

5

1673103100
ref: 5
16731-03101

GASKET,OIL PUMP (MCA)

€ 2.50

6

1681035030
ref: 6
16810-07520

HOSE,OIL NO.1

€ 17.50

7

1682028030
ref: 7

HOSE,OIL NO.2

€ 35.00

8

0930509002
ref: 8

BUSHING

€ 1.50

9

0940010301
ref: 9
09400-10302

CLAMP

€ 9.50

10

1639105030
ref: 10
16391-05031

PIECE,OIL PUMP DRIVE

€ 2.50

11

0211205308
ref: 11
02112-0530A

SCREW

€ 1.50

12

0211205168
ref: 12
02112-05167

SCREW

€ 2.50

13

0832121058
ref: 13
08321-0105A

LOCK WASHER

€ 2.00

14

0911908014
ref: 14

BOLT

€ 3.50

15

0831221088
ref: 15
08310-00087

NUT

€ 2.00

16

1138027300
ref: 16

CAP,OIL PUMP INSPECTION

€ 5.50

17

0211206108
ref: 17
02112-06107

SCREW

€ 1.50

18

2643128001
ref: 18

GEAR,TACHOMETER DRIVEN

€ 20.50

19

2644128001
ref: 19
26441-28002

SLEEVE,TACHOMETER DRIVE

€ 17.00

20

0928010001
ref: 20

O RING(D:1.3,ID:9.6)

€ 2.00

21

0913506009
ref: 21

BOLT(6X12)

€ 2.00

22

0916008003
ref: 22

WASHER(8X13.7X1)

€ 2.00
