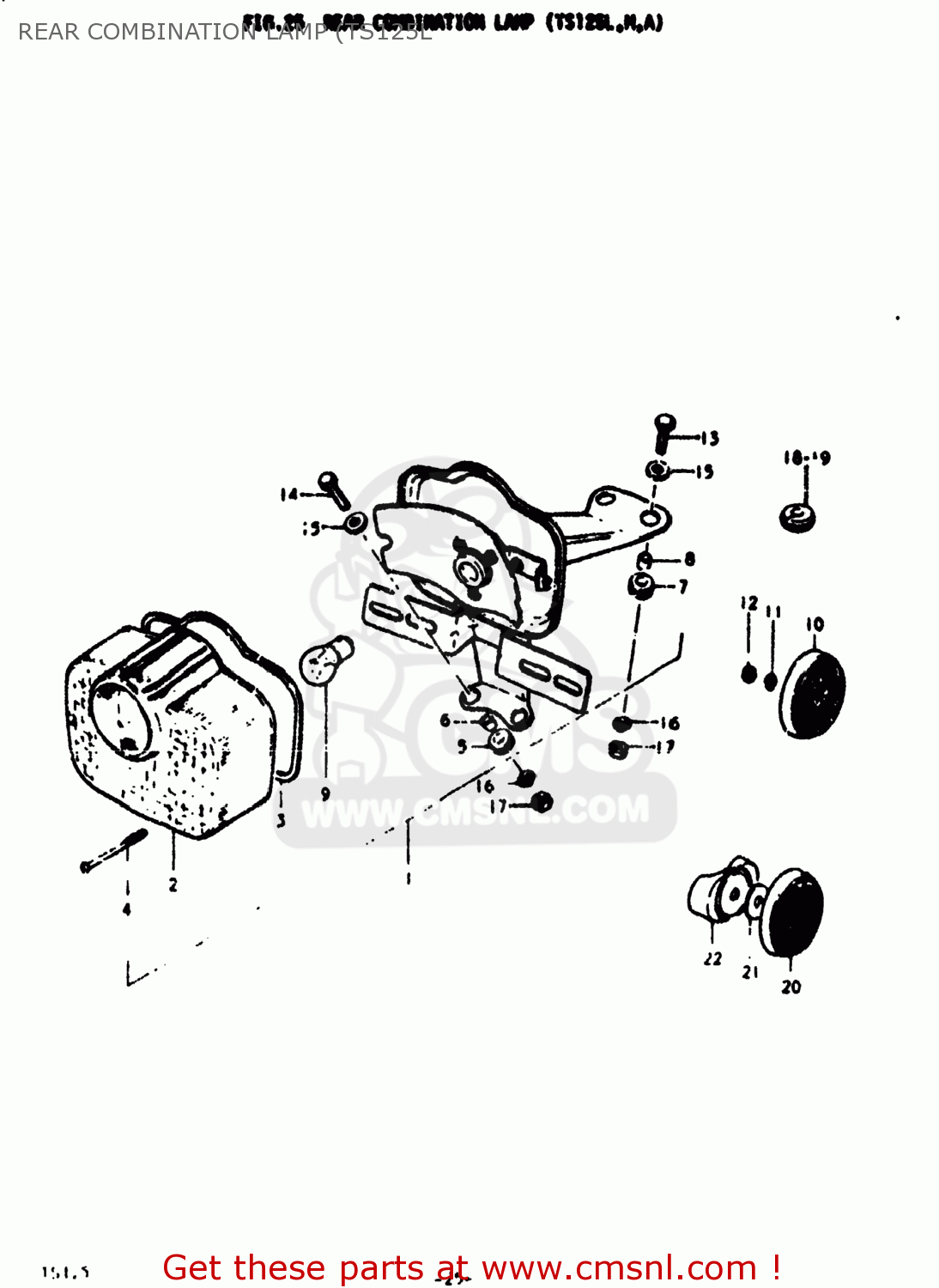

REAR COMBINATION LAMP (TS125L

ref

part #

description

quantity

1

3571025681
ref: 1
35710-25681-999

LAMP ASSEMBLY,REAR COMBINATION

€ 52.00

2

3571227630
ref: 2
35712-23011

LENS,REAR COMBINATION LAMP

€ 50.50

3

3571327630
ref: 3

GASKET (NAS)

€ 5.50

4

0211104558
ref: 4
02112-04558

SCREW

€ 1.50

5

3576515010
ref: 5

CUSHION

€ 9.00

6

3576615010
ref: 6
35766-37110

SPACER,REAR COMBINATION LAMP

€ 11.50

7

3576522210
ref: 7

CUSHION

€ 4.00

8

3576622210
ref: 8
35766-37120

SPACER,REAR COMBINATION LAMP

€ 2.50

9

0947106030
ref: 9

BULB(6V32/3CP,STANLEY)

€ 12.50

10

3597031610
ref: 10

REFLECTOR,REFLEX

€ 19.50

11

0832121058
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

0831111056
ref: 12

NUT

€ 0.00

13

0111206208
ref: 13
01500-06207

BOLT

€ 2.00

14

0111206258
ref: 14
01500-06257

BOLT

€ 2.00

15

0916006020
ref: 15
09160-06066

WASHER

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0831111068
ref: 17
08310-00067

NUT

€ 2.50

18

0930807002
ref: 18

GROMMET

€ 2.50

19

0930807005
ref: 19

GROMMET

€ 1.50

20

3595031010
ref: 20
35950-49080

REFLEX REFLECTOR ASSEMBLY

€ 17.50

21

0916006027
ref: 21
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

22

3599529000
ref: 22

SPACER

€ 14.00

all assemblies
