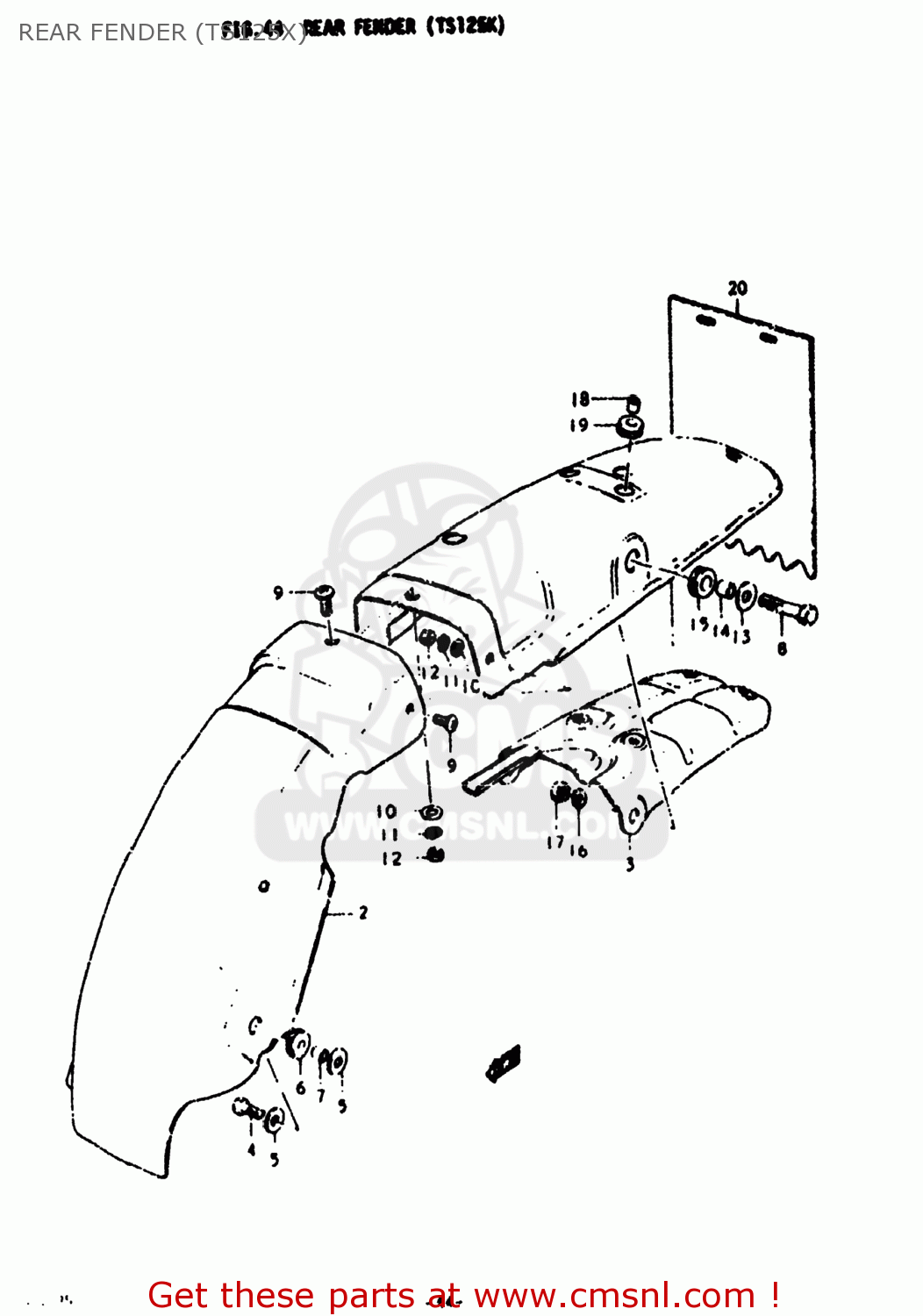

REAR FENDER (TS125X)

ref

part #

description

quantity

1

6311328000293
ref: 1
63113-28000-737

FENDER,REAR

€ 28.00

2

6311228000
ref: 2

FENDER,REAR

€ 39.50

3

6312028000
ref: 3

REINFORCEMENT,REAR FENDER

€ 42.00

4

0111206168
ref: 4
01500-06167

BOLT

€ 3.00

5

0916006027
ref: 5
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

6

0932008007
ref: 6
09320-08021

CUSHION

€ 4.00

7

0918006036
ref: 7

SPACER(6.8X10X24.2)

€ 2.50

8

0112210458
ref: 8
01500-1045A

BOLT

€ 2.00

9

0214105127
ref: 9
02142-05127

SCREW

€ 1.50

10

0832211058
ref: 10
08322-01057

WASHER 5MM

€ 2.50

11

0832121058
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

0831111058
ref: 12
08310-00057

NUT

€ 2.50

13

0916010041
ref: 13

WASHER(10.3X25X1.5

€ 4.00

14

0918010026
ref: 14

SPACER

€ 6.00

15

0932012011
ref: 15

CUSHION

€ 3.00

16

0832121108
ref: 16
08321-01107

LOCK WASHER

€ 2.00

17

0831231108
ref: 17
08310-00107

NUT

€ 2.50

18

0916006038
ref: 18
09160-06077

WASHER

€ 2.00

19

0932008007
ref: 19
09320-08021

CUSHION

€ 4.00

20

6333126000
ref: 20

MUD GUARD,REAR FENDER

€ 9.50
