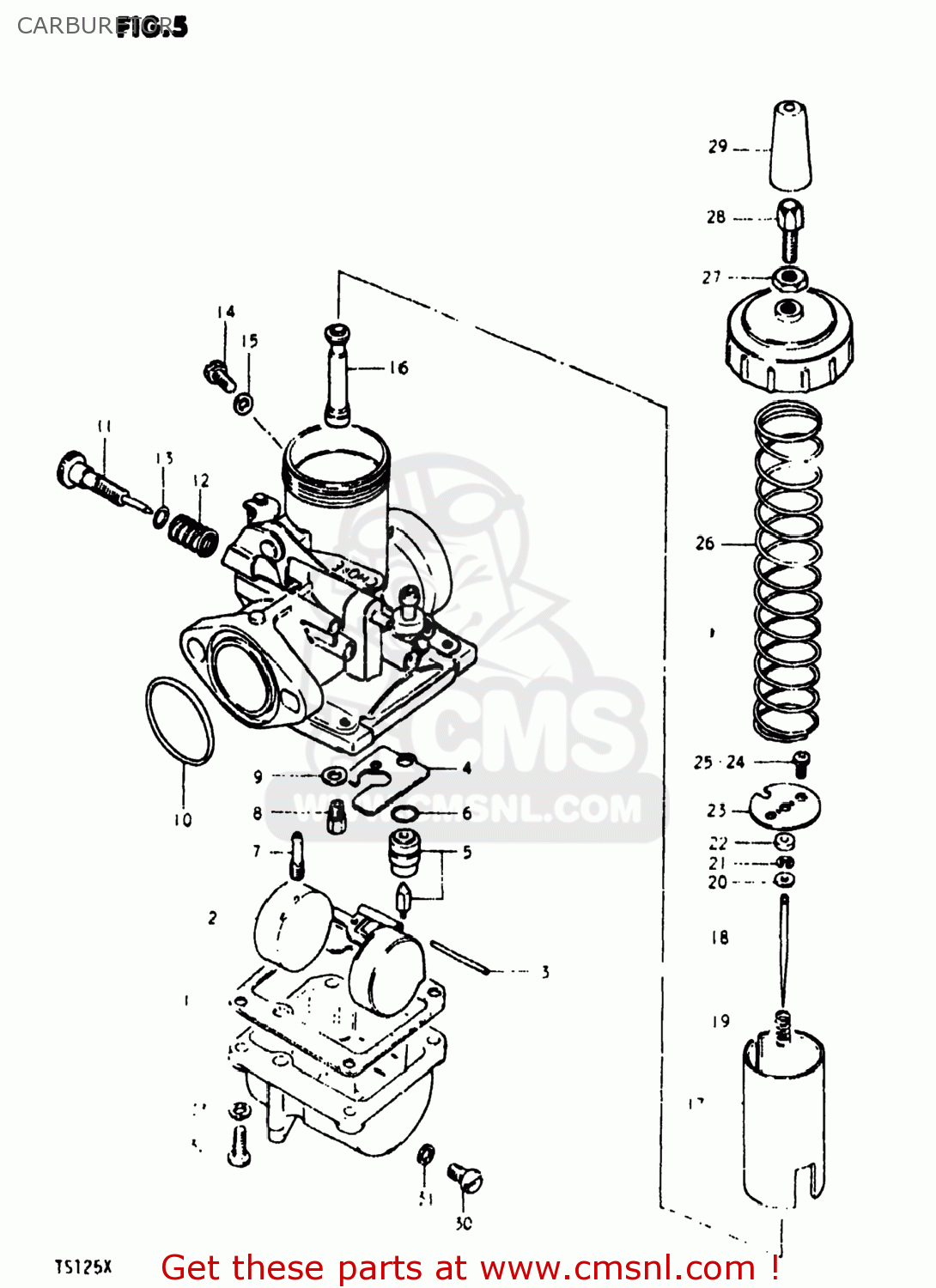

CARBURETOR

ref

part #

description

quantity

0

1320048030
ref: 0

CARBURETOR ASSEMBLY

€ 115.50

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325211010
ref: 2

FLOAT

€ 20.50

3

1325401010
ref: 3

PIN,FLOAT

€ 3.00

4

1325997010
ref: 4

PLATE

€ 3.50

5

1337018111
ref: 5

VALVE ASSY,NEEDLE

€ 51.50

6

1339258600
ref: 6

GASKET,VALVE SEAT (NAS)

€ 2.00

7

0949217006
ref: 7

JET,PILOT(17.5)

€ 7.50

8

0949124014
ref: 8

JET,MAIN(120)

€ 8.00

9

1338203110
ref: 9

WASHER

€ 2.50

10

1329528010
ref: 10

O RING

€ 3.50

11

1326741640
ref: 11

SCREW,THROTTLE STOP

€ 15.00

12

1326848110
ref: 12

SPRING,PILOT

€ 11.50

13

1329430010
ref: 13
13278-02340

O-RING

€ 1.50

14

1366418654
ref: 14

BOLT

€ 10.50

15

1366331010
ref: 15

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

16

0949400242
ref: 16

JET,NEEDLE

€ 5.50

17

1355148130
ref: 17

VALVE,THROTTLE

€ 33.50

18

1338348030
ref: 18

NEEDLE JET

€ 9.00

19

1338847010
ref: 19

SPRING

€ 7.00

20

1338247010
ref: 20

WASHER,JET NEEDLE

€ 3.00

21

1339410010
ref: 21

CLIP

€ 4.50

22

1338747010
ref: 22

RING

€ 7.50

23

1358148020
ref: 23

PLATE,THROTTLE VALVE

€ 4.00

24

0832121038
ref: 24
09162-03001

LOCK WASHER

€ 1.50

25

0211103067
ref: 25
02112-0306B

SCREW

€ 2.00

26

1357327650
ref: 26

SPRING,THROTTLE VALVE

€ 5.50

27

1366116600
ref: 27

NUT

€ 5.00

28

1357748110
ref: 28

ADJUSTER,CABLE

€ 8.00

29

1368116601
ref: 29

CAP

€ 7.00

30

1324705010
ref: 30

PLUG

€ 6.00

31

1324905010
ref: 31

GASKET,DRAIN,PLUG (NAS)

€ 1.50

32

0211204168
ref: 32
02112-0416A

SCREW

€ 1.00

33

0832121048
ref: 33
08321-0104A

LOCK WASHER

€ 2.00
