FRONT FORK
TS125 1981 (X) USA (E03)

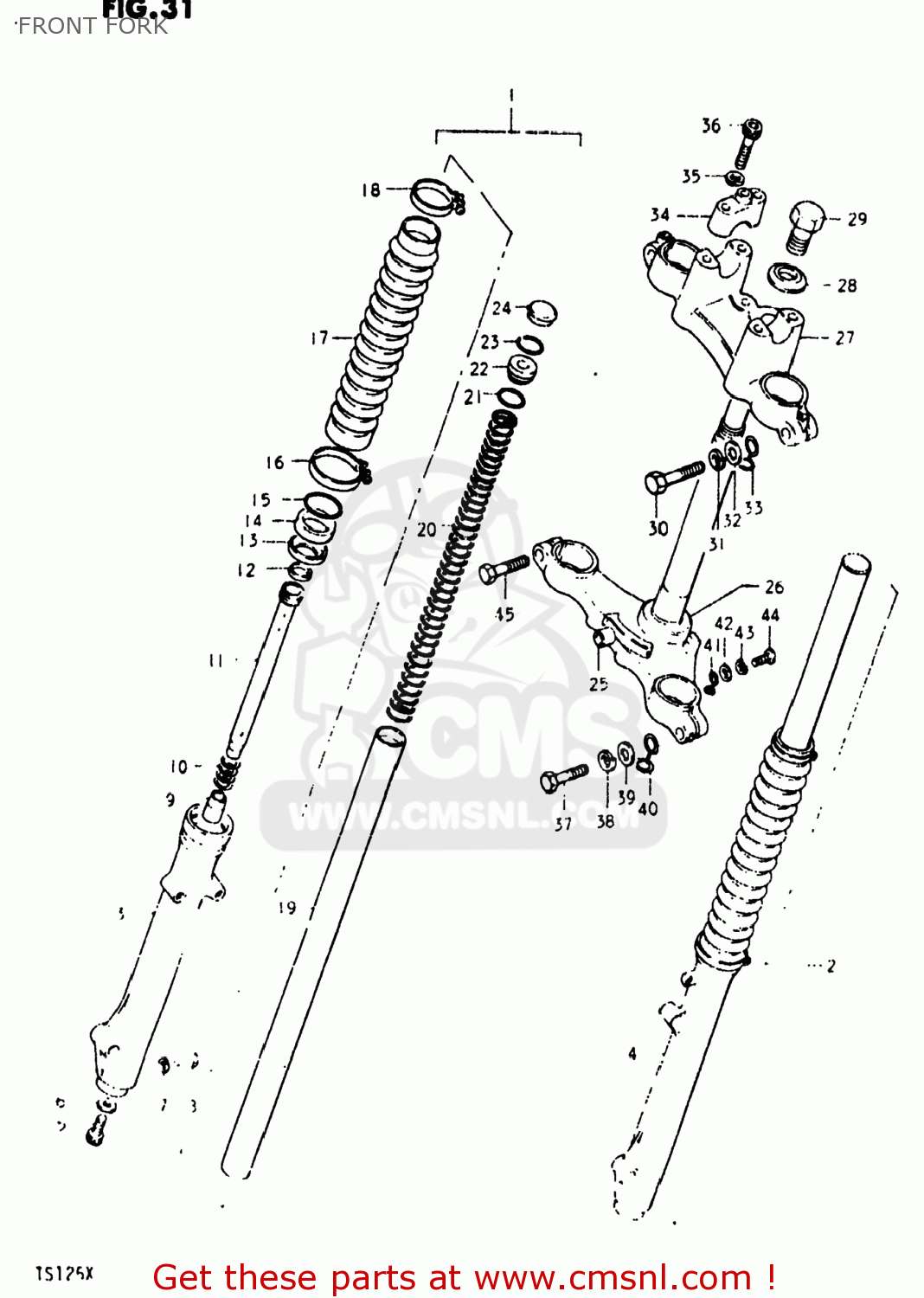

Front fork diagram TS125 1981 (X) USA (E03)
FRONT FORK TS125 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110348502
ref: 1
51103-48503
DAMPER ASSEMBLY,RIGHT
€ 146.00
2
5110448502
ref: 2
51104-48503
DAMPER ASSEMBLY,LEFT
€ 131.00
3
5113048500
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 163.00
4
5114048500
ref: 4
TUBE,FORK,LEFT,OUTER
€ 163.00
5
5114748130
ref: 5
BOLT(8X27)
€ 3.50
6
5114831030
ref: 6
51148-36011
GASKET (NAS)
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
€ 4.00
8
0910006011
ref: 8
BOLT(6X8)
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
€ 8.50
10
5117736030
ref: 10
SPRING,REBOUND
€ 4.50
11
5114648502
ref: 11
51146-48503
CYLINDER,FRONT FORK
€ 16.50
12
5119633130
ref: 12
RING,PISTON
€ 7.50
13
5116848500
ref: 13
WASHER,FRONT FORK OIL SEAL
€ 0.00
14
5115348500
ref: 14
51153-05210
OIL SEAL,FRONT FORK
€ 8.00
15
5115648500
ref: 15
51156-48730
CIRCLIP,FORK OIL SEAL
€ 2.50
16
0940258306
ref: 16
CLAMP
€ 5.00
17
5157148500
ref: 17
51571-05210
BOOT
€ 50.50
18
5157548500
ref: 18
BAND
€ 9.00
19
5111048500
ref: 19
51110-05200
TUBE,FORK,INNER
€ 176.00
20
5117148501
ref: 20
SPRING,FRONT FORK
€ 31.00
21
5118133131
ref: 21
O RING
€ 5.00
22
5117548500
ref: 22
SEAT,SPRING
€ 9.00
23
5116948500
ref: 23
RING,STOPPER
€ 2.00
24
5118948500
ref: 24
51189-13620
CAP,FRONT FORK
€ 6.00
25
5141048500291
ref: 25
51410-48510-291
STEM,STEERING
€ 197.00
26
5162133001
ref: 26
RACE,STEERING OUTER LWR
€ 10.00
27
5131148500291
ref: 27
51311-48500-08C
HEAD,STEERING STEM
€ 135.00
28
5135646030
ref: 28
WASHER(10.5X30X2.3)
€ 5.00
29
5135246030
ref: 29
BOLT
€ 6.00
30
5145127431
ref: 30
BOLT
€ 4.50
31
0832121108
ref: 31
08321-01107
LOCK WASHER
€ 2.00
32
0832221108
ref: 32
08322-01107
WASHER
€ 2.50
33
5145548500
ref: 33
CLIP
€ 0.00
34
5621148500291
ref: 34
56211-26505-291
HOLDER,HANDLEBAR
€ 20.50
35
0832121088
ref: 35
08321-01087
LOCK WASHER
€ 2.00
36
0910608004
ref: 36
07130-0835B
BOLT 8X35
€ 4.00
37
0110712458
ref: 37
01500-12457
BOLT 12X45
€ 5.50
38
0832121128
ref: 38
08321-01127
WASHER,LOCK 12
€ 2.50
39
0832211128
ref: 39
08322-01127
WASHER
€ 2.00
40
5145548510
ref: 40
CLIP
€ 7.00
41
5145248500
ref: 41
CLIP
€ 6.00
42
0832221068
ref: 42
08322-01067
WASHER
€ 2.00
43
0832121068
ref: 43
08321-01067
LOCK WASHER
€ 2.50
44
0211206128
ref: 44
02112-06127
SCREW 6X12
€ 2.00
45
0110412408
ref: 45
01500-12403
BOLT
€ 3.00
