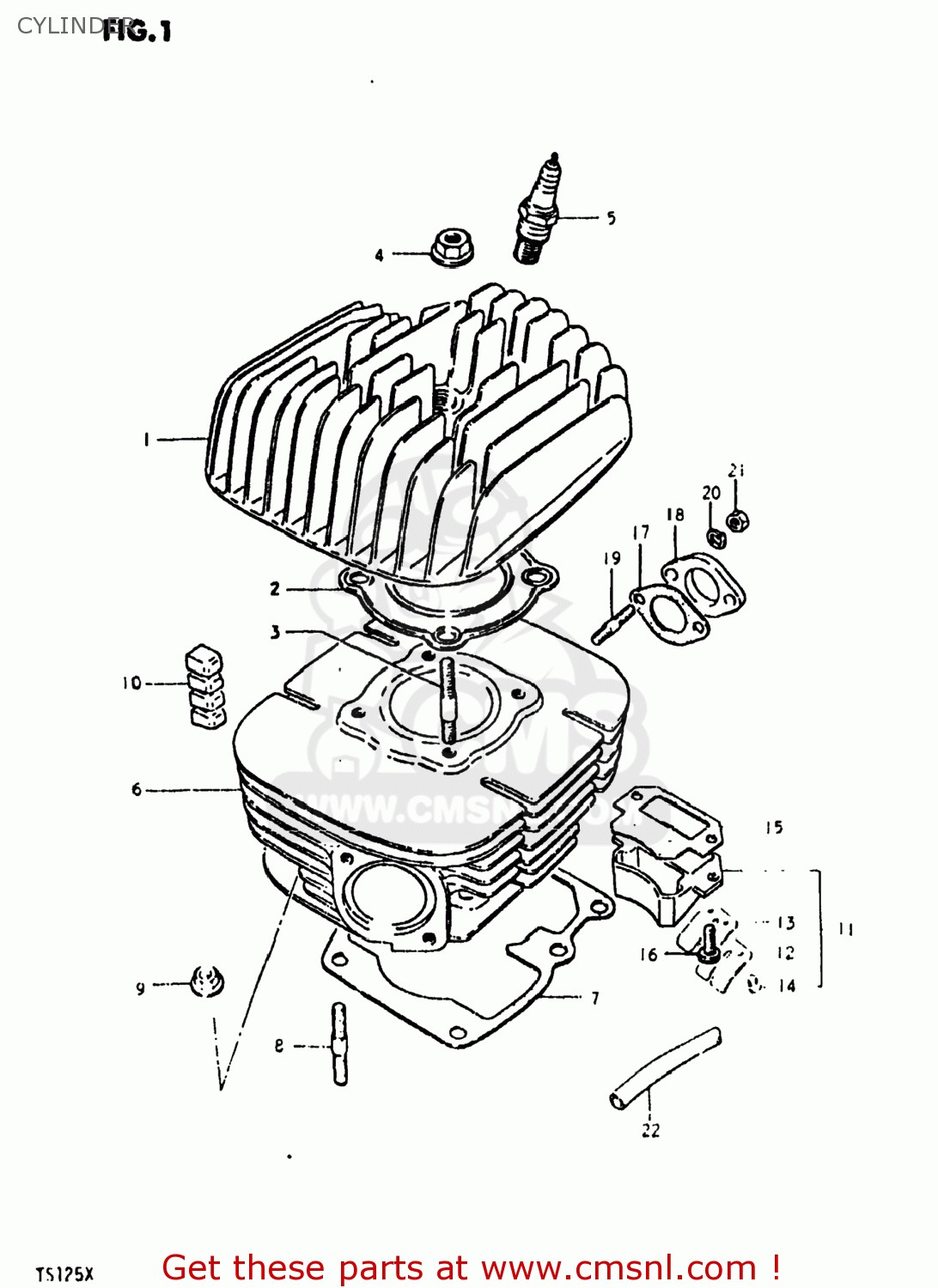

CYLINDER

ref

part #

description

quantity

1

1111148003
ref: 1

HEAD,CYLINDER

€ 187.50

2

1114148011
ref: 2
11141-48011-H17

GASKET,CYLINDER HEAD (MCA)

€ 15.00

3

0142108358
ref: 3
01421-0835A

STUD BOLT

€ 2.00

4

0831616088
ref: 4
08316-10087

NUT

€ 2.50

5-1

0948200225
ref: 5-1
09482-00091

SPARK PLUG

€ 3.00

5-2

0948200196
ref: 5-2
09482-00247-111

SPARK PLUG W24ES-U

€ 3.50

6

1121048010
ref: 6
11210-48011

CYLINDER

€ 372.50

7

1124141300
ref: 7
11241-41321

GASKET,CYLINDER (MCA)

€ 6.00

8

0142108258
ref: 8
01421-0825A

STUD 8X25

€ 2.50

9

0831616088
ref: 9
08316-10087

NUT

€ 2.50

10

1125148000
ref: 10
11251-36500

PAD,CYLINDER

€ 6.50

11

1315048011
ref: 11
13150-48700

VALVE ASSEMBLY,REED

€ 133.50

12

1315248010
ref: 12

STOPPER,REED VALVE

€ 6.50

13

1315341110
ref: 13

VALVE,REED

€ 8.00

14

1315419011
ref: 14
02112-0308A

SCREW,REED VALVE

€ 1.50

15

1315641100
ref: 15
13156-41100-H17

GASKET,REED VALVE (MCA)

€ 4.50

16

0211206208
ref: 16
02112-06207

SCREW

€ 2.00

17

1312511000
ref: 17
13125-11000-H17

GASKET,CARBURETOR (MCA)

€ 3.00

18

1312948000
ref: 18

INSULATOR,CARBURETOR

€ 9.50

19

0142108308
ref: 19
09108-08142

STUD BOLT

€ 2.00

20

0832121088
ref: 20
08321-01087

LOCK WASHER

€ 2.00

21

0831012088
ref: 21
08310-00087

NUT

€ 2.00

22

0934403019
ref: 22
09351-30503-600

HOSE

€ 6.50
