OIL PUMP

TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

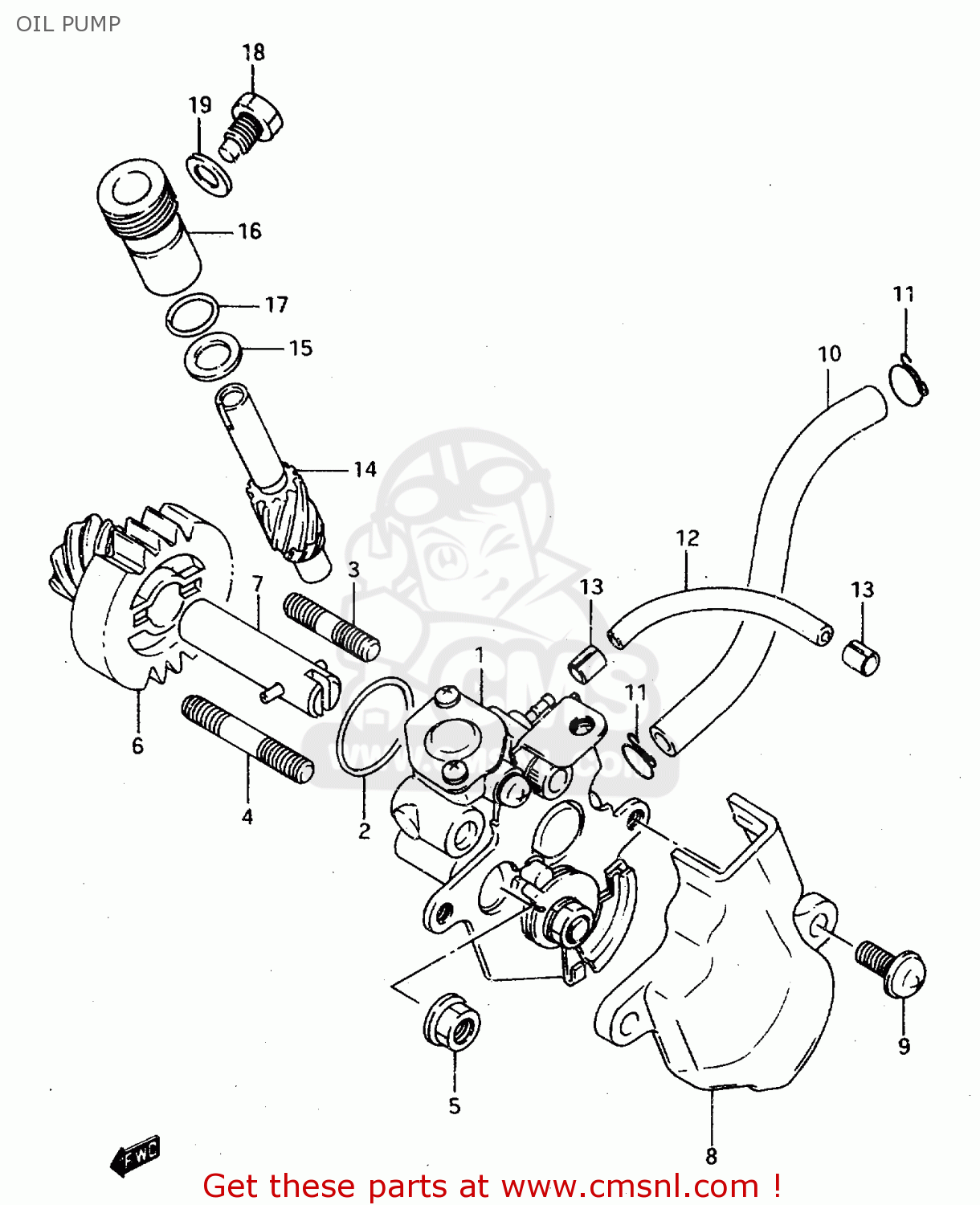

Oil pump diagram TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

OIL PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
OIL PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
OIL PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1610003D01
ref: 1
PUMP ASSY,OIL
€ 120.50
2
0928020003
ref: 2
O RING(D:1.5,ID:19.5)
0928020003
€ 2.50
3
0910805014
ref: 3
BOLT,STUD(5X18)
€ 2.00
4
0910805015
ref: 4
BOLT,STUD(5X28)
€ 0.00
5-1
0831616058
ref: 5-1
MODEL K/L/M/N/P
NUT
€ 2.50
5-2
0831610053
ref: 5-2
MODEL R
NUT
0831610053
€ 2.50
6
1632136A00
ref: 6
GEAR,OIL PUMP DRIVE
1632136A00
€ 14.50
7-1
1632003D01
ref: 7-1
MODEL K/L/M/N/P
SHAFT, OIL PUMP GEAR
€ 10.50
7-2
1632003D02
ref: 7-2
MODEL R
SHAFT,OIL PUMP GEAR
€ 10.50
8
1613103D01
ref: 8
COVER,OIL PUMP
€ 14.00
9-1
0215205108
ref: 9-1
MODEL K/L/M/N/P
SCREW
€ 2.50
9-2
0214205103
ref: 9-2
MODEL R
SCREW
0214205103
€ 2.50
10
0935245853300
ref: 10
L:300 155
HOSE (4.5X8.5X300)
€ 14.00
11
0940108401
ref: 11
CLIP
0940108401
€ 1.50
12
0935220503300
ref: 12
L:300 70
HOSE (2X5X300)
€ 12.00
13
0940104401
ref: 13
09401-044A1
CLIP
0940104401
€ 2.50
14
2643103D00
ref: 14
EXCEPT E24
GEAR,TACHOMETER DRIVEN
€ 19.00
15
0916008003
ref: 15
EXCEPT E24
WASHER(8X13.7X1)
0916008003
€ 2.00
16
2644103D00
ref: 16
EXCEPT E24
SLEEVE,TACHOMETER DRIVEN GEAR
2644103D00
€ 13.00
17
0928010001
ref: 17
EXCEPT E24
O RING(D:1.3,ID:9.6)
0928010001
€ 2.00
18
0913506002
ref: 18
EXCEPT E24
BOLT
0913506002
€ 2.50
19
0916806004
ref: 19
EXCEPT E24
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
