SPEEDOMETER (E24)

TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

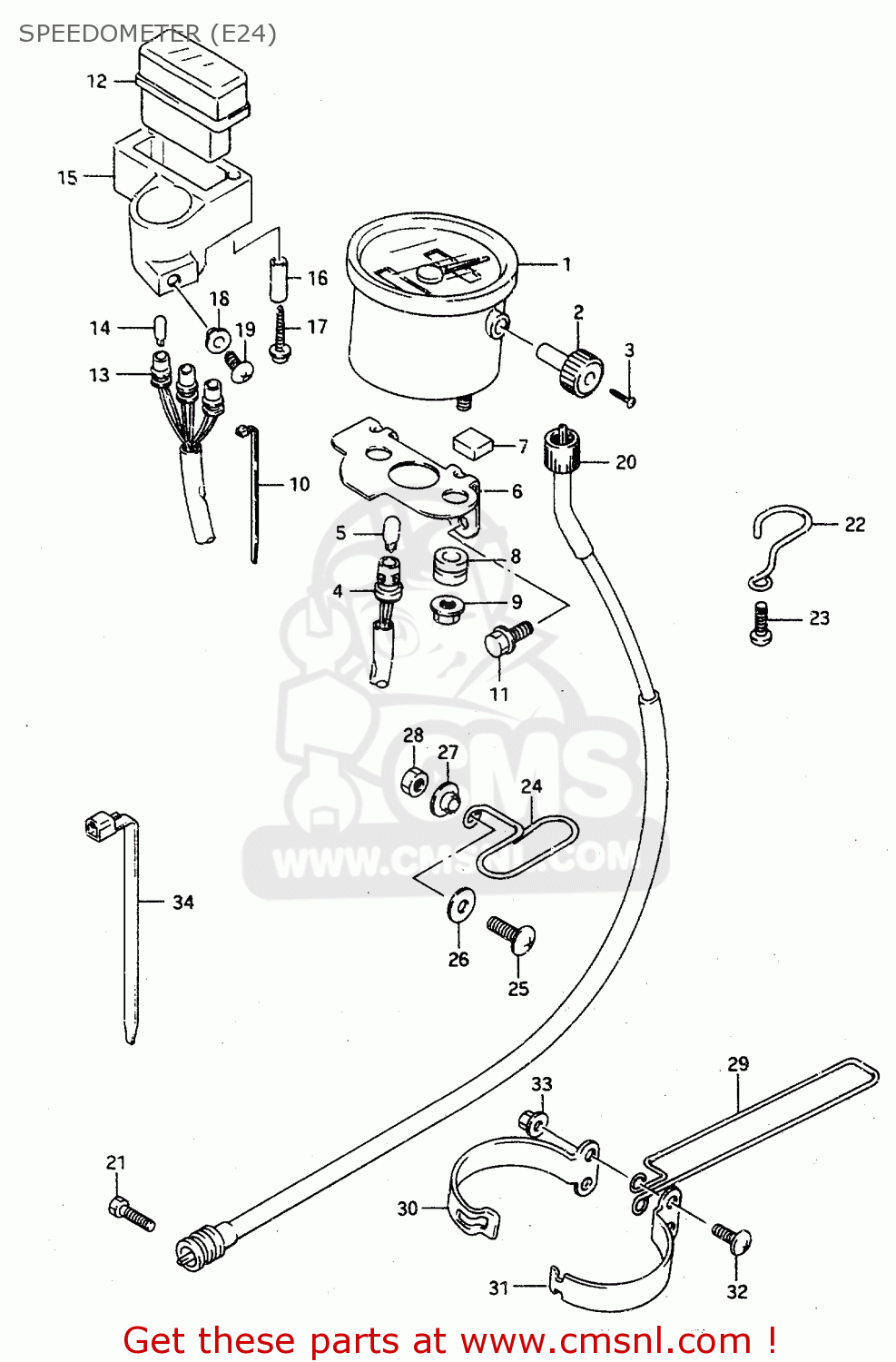

Speedometer (e24) diagram TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

SPEEDOMETER (E24) TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
SPEEDOMETER (E24) TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
SPEEDOMETER (E24) TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
3412003D00
ref: 1
SPEEDOMETER
€ 0.00
2
3412444B30
ref: 2
KNOB,TRIP
3412444B30
€ 7.00
3
3418414A00
ref: 3
SCREW,TRIP KNOB
3418414A00
€ 2.00
4
3417003D00
ref: 4
SOCKET
€ 0.00
5
0947112085
ref: 5
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
6
3495003D00
ref: 6
BRACKET,SPEEDOMETER
3495003D00
€ 39.00
7
3416103D00
ref: 7
CUSHION
€ 2.00
8
3418930921
ref: 8
CUSHION
3418930921
€ 3.00
9
3418519C00
ref: 9
NUT
€ 3.00
10
3495416730
ref: 10
CLAMP
€ 2.50
11
0151706125
ref: 11
BOLT 6X12
0151706125
€ 2.50
12
3638008D00
ref: 12
BOX ASSY, PILOT LAMP
€ 0.00
13
3639408D00
ref: 13
SOCKET
€ 23.00
14
0947112118
ref: 14
BULB(13.5V,2W,A7427)
0947112118
€ 2.00
15-1
3638208D00
ref: 15-1
MODEL K/L/M/N
HOLDER, PILOT BOX
€ 0.00
15-2
3638208D01
ref: 15-2
MODEL P
HOLDER,PILOT BOX
€ 0.00
16
0918004016
ref: 16
SPACER (4.5X6.5X25)
€ 3.50
17
0351114355
ref: 17
SCREW
€ 2.00
18
0916905011
ref: 18
WASHER
0916905011
€ 2.00
19
0214205104
ref: 19
SCREW 5X10
0214205104
€ 2.50
20
3491003D20
ref: 20
CABLE ASSY, SPEEDOMETER
€ 58.50
21
0110705167
ref: 21
BOLT
€ 1.50
22
3493803D10
ref: 22
GUIDE,SPEEDOMETER CABLE
€ 0.00
23
0211205105
ref: 23
SCREW
€ 2.00
24
3493803D20
ref: 24
GUIDE, CABLE NO.2
€ 7.50
25
0214206164
ref: 25
SCREW
0214206164
€ 2.50
26
0916006057
ref: 26
WASHER
€ 2.00
27
0916906053
ref: 27
WASHER
0916906053
€ 2.00
28
0831012066
ref: 28
NUT
0831012066
€ 2.00
29
3493803D30
ref: 29
GUIDE, CABLE NO.3
€ 0.00
30
3492603D00
ref: 30
BRACKET,CABLE GUIDE
€ 11.50
31
3492703D01
ref: 31
BRACKET,CABLE GUIDE
€ 10.00
32
0214205164
ref: 32
SCREW
0214205164
€ 2.50
33
0831616055
ref: 33
NUT ,5MM
€ 2.00
34
0940714403
ref: 34
CLAMP(L:125)
0940714403
€ 2.50
