WATER PUMP

TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

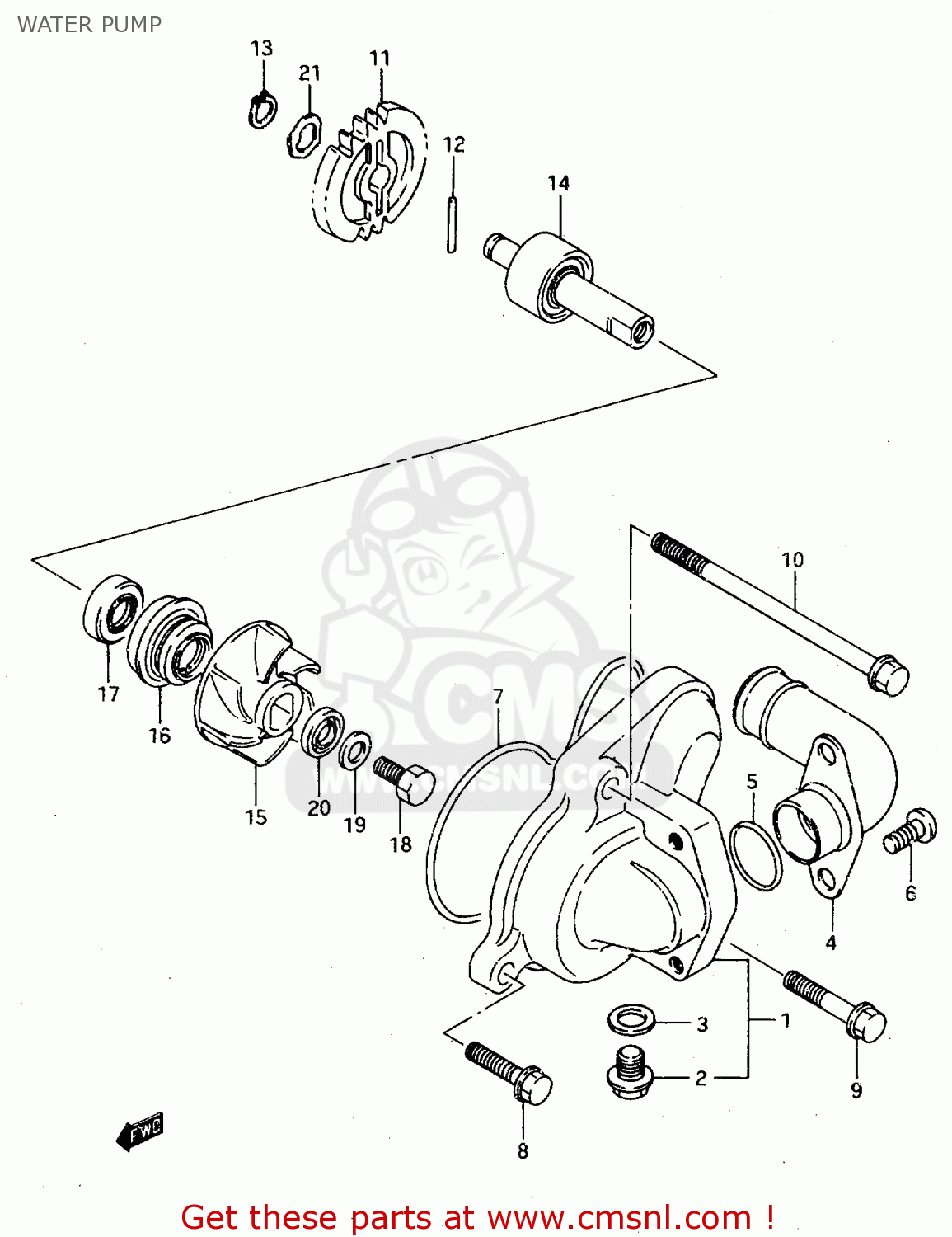

Water pump diagram TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

WATER PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
WATER PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
WATER PUMP TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1741003D00
ref: 1
CASE,WATER PUMP
1741003D00
€ 75.00
2
1741520920
ref: 2
BOLT,DRAIN
1741520920
€ 5.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
4
1742103D00
ref: 4
CONNECTOR,WATER INLET
1742103D00
€ 22.00
5
0928019001
ref: 5
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
6-1
0910606055
ref: 6-1
MODEL K/L/M/N/P
BOLT
0910606055
€ 2.50
6-2
0713006123
ref: 6-2
MODEL R
BOLT,STRANGER
€ 2.50
7
1743503D00
ref: 7
O RING,WATER PUMP CASE
1743503D00
€ 7.50
8
0154706207
ref: 8
BOLT
0154706207
€ 2.50
9
0154706257
ref: 9
BOLT
0154706257
€ 2.50
10
0154706807
ref: 10
BOLT
0154706807
€ 3.50
11
1746103D00
ref: 11
GEAR,WATER PUMP DRIVEN
1746103D00
€ 27.50
12
0926102001
ref: 12
PIN(2.5X19.8)
0926102001
€ 1.50
13
0833131106
ref: 13
CIRCLIP,10MM
0833131106
€ 2.00
14
1751003D00
ref: 14
SHAFT,WATER PUMP
1751003D00
€ 88.00
15
1749104700
ref: 15
IMPELLER,WATER PUMP
1749104700
€ 13.50
16
1747046A00
ref: 16
SEAL,MECHANICAL
1747046A00
€ 21.50
17
0928310005
ref: 17
SEAL,OIL(10X20X5)
0928310005
€ 4.50
18
0910006099
ref: 18
BOLT(6X13)
0910006099
€ 2.00
19
0916406006
ref: 19
WASHER
0916406006
€ 2.50
20
0916806025
ref: 20
GASKET(6X15X2.2) (NAS)
0916806025
€ 3.00
21
0916410009
ref: 21
WASHER
0916410009
€ 2.50
