REAR FENDER

TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

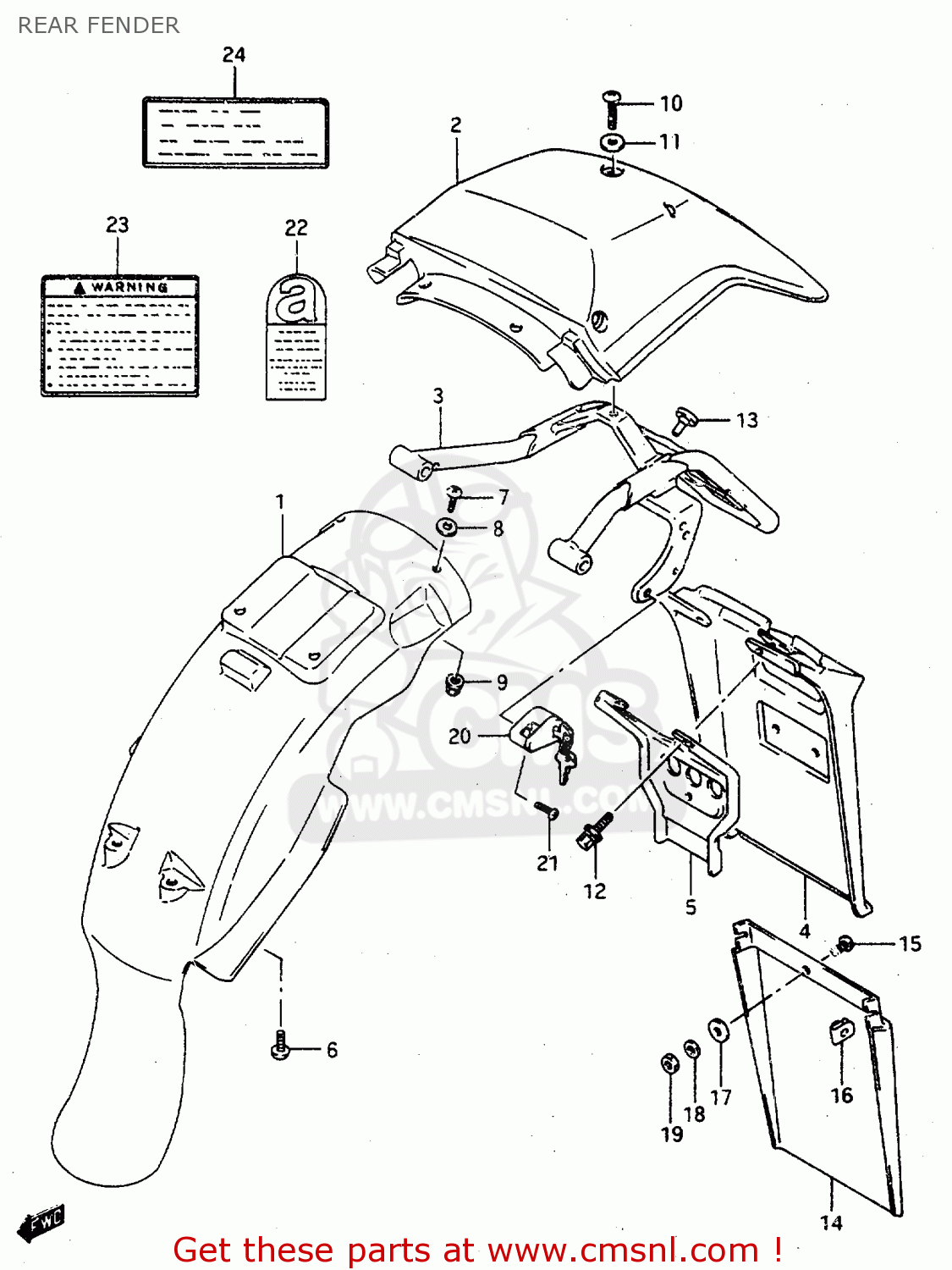

Rear fender diagram TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

REAR FENDER TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
REAR FENDER TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
REAR FENDER TS125R 1989 (K) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
6311203D01
ref: 1
BODY,RR FENDER FR
6311203D01
€ 30.50
2-1
6311303D1014C
ref: 2-1
MODEL K/L FOR 14C
BODY, REAR FENDER, REAR (RED)
€ 58.50
2-2
6311303D1025Y
ref: 2-2
MODEL K/L/M/N/P FOR
BODY,RR FENDER RR
6311303D1025Y
€ 62.50
2-3
6311303D1030H
ref: 2-3
MODEL K/M FOR 30HMOD
BODY,RR FENDER RR
6311303D1030H
€ 62.50
2-4
6311303D100NF
ref: 2-4
MODEL L/M/N FOR 0NF
BODY, REAR FENDER, REAR (BLUE)
€ 62.50
2-5
6311303D0014C
ref: 2-5
MODEL K/L E24 FOR 14
BODY, REAR FENDER, REAR (RED)
6311303D0014C
€ 58.50
2-6
6311303D0025Y
ref: 2-6
MODEL K/L E24 FOR 25
BODY,RR FENDER RR
€ 57.50
2-7
6311303D0030H
ref: 2-7
MODEL K E24 FOR 30H
BODY,RR FENDER RR
€ 62.50
2-8
6311303D000NF
ref: 2-8
MODEL L E24 FOR 0NF
BODY,RR FENDER RR
6311303D000NF
€ 52.00
3-1
6312003D11
ref: 3-1
REINFORCEMENT,RR FENDER
€ 94.50
3-2
6312003D01
ref: 3-2
E24
REINFORCEMENT, REAR FENDER
€ 111.00
4-1
6331103D01
ref: 4-1
EXTENSION,RR FENDER
6331103D01
€ 24.00
4-2
6331103D11
ref: 4-2
E15,E17,E18
EXTENSION, REAR FENDER
€ 27.50
5-1
6332003D01
ref: 5-1
MODEL K/L/M
REINFORCMENT,REAR FENDER
€ 44.00
5-2
6332003D03
ref: 5-2
MODEL N/P/R
REINFORCEMENT,RR FENDER EXT
€ 44.00
6
0913606017
ref: 6
SCREW(6X16)
0913606017
€ 2.50
7-1
0214206127
ref: 7-1
MODEL K/L/M/N/P
SCREW 6X12
0214206127
€ 1.50
7-2
0214206123
ref: 7-2
MODEL R
SCREW 6X12
0214206123
€ 2.00
8
0916006028
ref: 8
WASHER(6.5X18X1)
0916006028
€ 1.50
9-1
0831626066
ref: 9-1
MODEL K/L/M/N/P
NUT
€ 2.00
9-2
0831620063
ref: 9-2
MODEL R
NUT
0831620063
€ 2.00
10
0913906057
ref: 10
SCREW(6X25)
0913906057
€ 2.50
11
0916006013
ref: 11
WASHER (6.5X18X2)
0916006013
€ 10.50
12-1
0117706166
ref: 12-1
MODEL K/L/M/N/P
BOLT
€ 2.00
12-2
0158006163
ref: 12-2
MODEL R
BOLT
0158006163
€ 2.50
13
0932106013
ref: 13
CUSHION
0932106013
€ 2.50
14
6333103D00
ref: 14
E15,E17,E18
MUDGUARD,RR FENDER RR
6333103D00
€ 15.50
15
0214215165
ref: 15
E15,E17,E18
SCREW, LOWER
0214215165
€ 2.50
16
0914805023
ref: 16
E15,E17,E18
NUT
0914805023
€ 1.50
17
0916005016
ref: 17
E15,E17,E18
WASHER
0916005016
€ 1.50
18
0832121056
ref: 18
E15,E17,E18
LOCK WASHER
0832121056
€ 3.00
19
0914005006
ref: 19
E15,E17,E18
NUT
0914005006
€ 2.00
20
9570003810
ref: 20
LOCK SET,HELMET
9570003810
€ 59.50
21
0211205125
ref: 21
SCREW
0211205125
€ 1.50
22
1196782000
ref: 22
E2
LABEL,ASBESTOS WARNING
€ 2.00
23-1
6831915D00
ref: 23-1
LABEL
€ 8.00
23-2
6831915D30
ref: 23-2
E4,E21
LABEL, WARNING
€ 8.50
23-3
6831915D40
ref: 23-3
E34
LABEL, WARNING
€ 8.00
23-4
6831915D51
ref: 23-4
E53
LABEL, WARNING SAFETY (SPANISH)
€ 8.00
23-5
6831915D20
ref: 23-5
E18
LABEL, WARNING
€ 8.00
24-1
6862303D00
ref: 24-1
E15,E18
LABEL, UNLEADED FUEL
€ 0.00
24-2
6862317D00
ref: 24-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
25
6833203D01
ref: 25
WITH OUT DRAWING
LABEL, TIRE AIR PRESSURE
€ 0.00
26-1
9901103D50028
ref: 26-1
MODEL K
MANUAL, OWNER'S
€ 20.00
26-2
9901103D50022
ref: 26-2
MODEL K E4,E18,E21,E
MANUAL, OWNER'S
€ 20.00
26-3
9901103D51028
ref: 26-3
MODEL L
MANUAL, OWNER'S
€ 29.50
26-4
9901103D51022
ref: 26-4
MODEL L E4,E18,E21,E
MANUAL, OWNER'S
€ 0.00
26-5
9901103D52028
ref: 26-5
MODEL M
MANUAL, OWNER'S
€ 0.00
26-6
9901103D52022
ref: 26-6
MODEL M E4,E18,E21,E
MANUAL, OWNER'S
€ 0.00
26-7
9901103D53028
ref: 26-7
MODEL N
MANUAL, OWNER'S
€ 0.00
26-8
9901103D53022
ref: 26-8
M,ODEL N E4,E18,E21,
MANUAL, OWNER'S
€ 0.00
26-9
9901103D54028
ref: 26-9
MODEL P
MANUAL, OWNER'S
€ 0.00
26-10
9901103D54022
ref: 26-10
MODEL P E4,E18,E21
MANUAL, OWNER'S
€ 29.50
26-11
9901103D55028
ref: 26-11
MODEL R
MANUAL, OWNER'S
€ 0.00
26-12
9901103D55022
ref: 26-12
MODEL R E4,E18,E21WI
MANUAL, OWNER'S
9901103D55022
€ 29.50
