CARBURETOR
TS125XU 1986 (G) UNITED KINGDOM (E02)

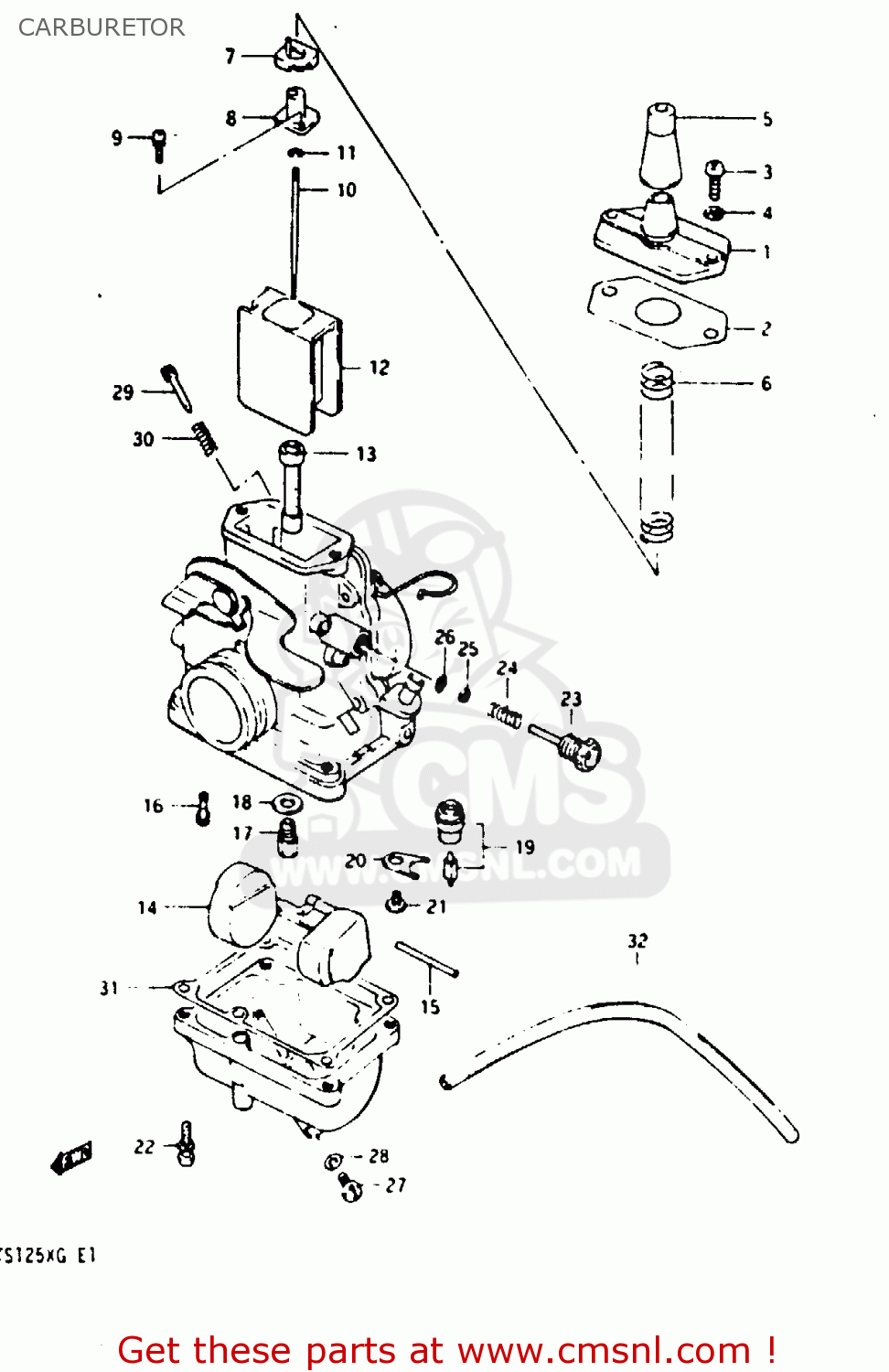

Carburetor diagram TS125XU 1986 (G) UNITED KINGDOM (E02)
CARBURETOR TS125XU 1986 (G) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
0
1320001A00
ref: 0
CARBURETOR ASSY
€ 295.00
1
1326101A00
ref: 1
CAP, TOP
€ 0.00
2
1326601A10
ref: 2
GASKET,CARBURETOR TOP (NAS)
€ 4.50
3
0211204128
ref: 3
SCREW
€ 1.50
4
0832121048
ref: 4
LOCK WASHER
€ 2.00
5
1368116600
ref: 5
CAP,RUBBER
€ 7.00
6
1357301A00
ref: 6
SPRING
€ 1.50
7
1362901A00
ref: 7
RING
€ 4.00
8
1339801A00
ref: 8
JOINT
€ 7.00
9
1360101A00
ref: 9
SCREW
€ 2.50
10
1338301A00
ref: 10
NEEDLE, JET (5DP1-3)
€ 13.00
11
1339410010
ref: 11
CLIP
€ 4.50
12
1355101A00
ref: 12
VALVE, PISTON (CA:3.0)
€ 66.50
13
0949400472
ref: 13
JET,NEEDLE(0-6)
€ 26.50
14
1325246010
ref: 14
FLOAT
€ 20.00
15
1325401010
ref: 15
PIN,FLOAT
€ 3.00
16
0949217006
ref: 16
JET,PILOT(17.5)
€ 7.50
17
0949127005
ref: 17
JET
€ 10.50
18
1333244080
ref: 18
WASHER,NEEDLE NOZZLE
€ 2.50
19
1337039161
ref: 19
VALVE ASSEMBLY,NEEDLE
€ 54.50
20
1337339110
ref: 20
PLATE
€ 6.50
21
0211204068
ref: 21
SCREW 4X6
€ 2.00
22
1360104148
ref: 22
SCREW
€ 2.50
23
1326716700
ref: 23
ADJUSTER,THROTTLE STOP
€ 11.00
24
1326835010
ref: 24
SPRING
€ 3.00
25
1329135010
ref: 25
WASHER
€ 2.50
26
1329533010
ref: 26
O RING
€ 4.50
27
1324701A00
ref: 27
SCREW, DRAIN
€ 6.00
28
1324905010
ref: 28
GASKET,DRAIN,PLUG (NAS)
€ 1.50
29
1326916700
ref: 29
SCREW,AIR
€ 9.50
30
1326801010
ref: 30
SPRING
€ 3.50
31
1325146010
ref: 31
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
32
1368339110
ref: 32
HOSE
€ 8.00
