TS125XU 1986 (G) UNITED KINGDOM (E02)

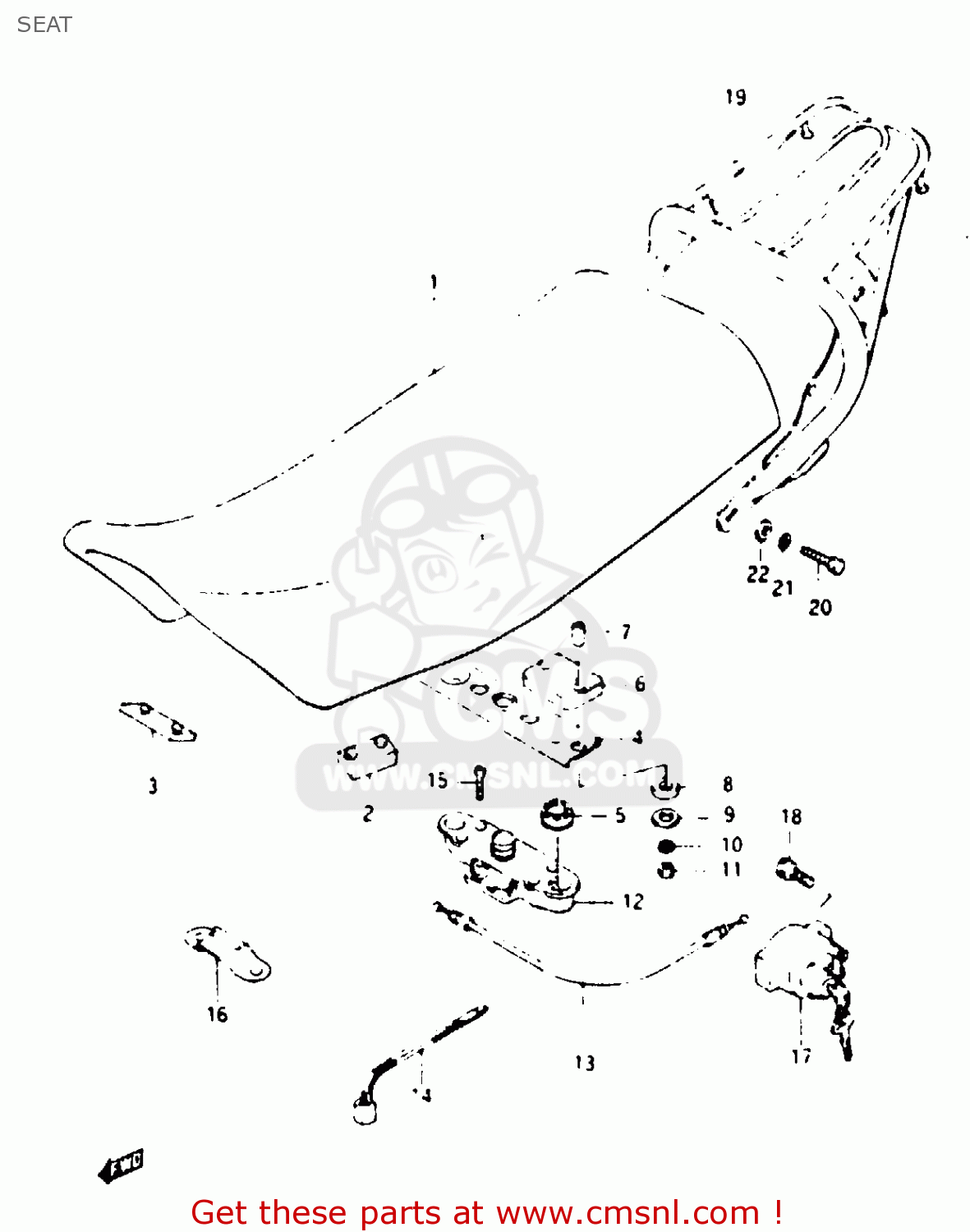

Seat diagram TS125XU 1986 (G) UNITED KINGDOM (E02)
SEAT TS125XU 1986 (G) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510001A1058D
ref: 1-1
MODEL E/F
SEAT ASSY (BLUE)
€ 261.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
4510001A3058D
ref: 1-3
MODEL G
SEAT SET
€ 261.50
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0932108006
ref: 2
CUSHION
€ 3.00
3
0932108009
ref: 3
CUSHION
€ 4.00
4
4521001A00
ref: 4
STRIKER, SEAT LOCK
€ 10.50
5
4521313600
ref: 5
CUSHION
€ 1.50
6
4512601A00
ref: 6
CUSHION, SEAT LOCK UPPER
€ 3.50
7
4521923450
ref: 7
SPACER,SEAT SUPPORT
€ 2.50
8
4514723450
ref: 8
CUSHION,SEAT FR
€ 1.50
9
0821206201
ref: 9
WASHER
€ 1.50
10
0832121066
ref: 10
WASHER,LOCK
€ 2.00
11
0831921068
ref: 11
NUT 6MM
€ 2.00
12-1
4522013600
ref: 12-1
TO 45220-13601 WITH
LOCK ASSEMBLY,SEAT STRIKER
€ 47.00
12-2
4522013601
ref: 12-2
LOCK ASSY,SEAT STRIKER
€ 47.00
13
4528001A00
ref: 13
CABLE,SEAT LOCK CABLE
€ 10.50
14
0940718402
ref: 14
CLAMP(L:165)
€ 2.50
15-1
0212206306
ref: 15-1
FOR 45220-13600
SCREW
€ 2.00
15-2
0211206306
ref: 15-2
FOR 45220-13601
SCREW,6X30
€ 2.50
16
4511901A00
ref: 16
PLATE,SEAT FR HOOK
€ 4.50
17
4570001A00KEY
ref: 17
LOCK ASSY, SEAT & HELMET
€ 46.00
18
0711006105
ref: 18
BOLT
€ 2.50
19-1
4631001A00
ref: 19-1
CARRIER, SPORT
€ 71.00
19-2
NOTUSED
ref: 19-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
0110708165
ref: 20
BOLT
€ 2.00
21
0832121084
ref: 21
WASHER,LOCK,8.
€ 2.50
22
0832211084
ref: 22
WASHER
€ 1.50
