OIL TANK

TS125XU 1986 (G) UNITED KINGDOM (E02)

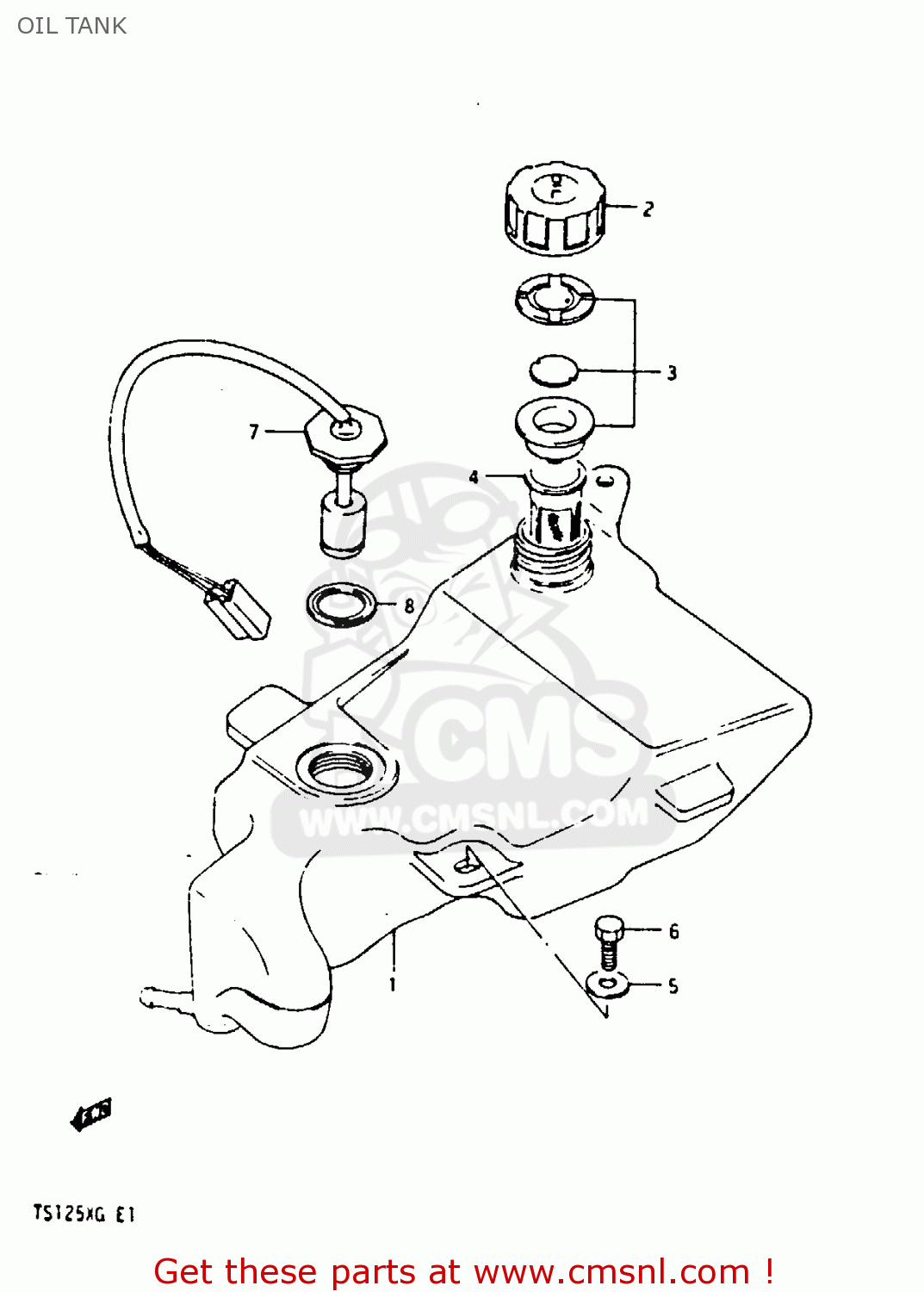

Oil tank diagram TS125XU 1986 (G) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

4461101A00
ref: 1

TANK, OIL

€ 38.50

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4466535000
ref: 4

FILTER,OIL TANK INLET

€ 7.00

0916006007
ref: 5

WASHER

€ 2.00

0110706168
ref: 6

BOLT, UPPER

€ 3.00

7-1

3788006400
ref: 7-1
MODEL E/F

SWITCH ASSY, OIL LEVEL

€ 28.50

7-2

3788006401
ref: 7-2
MODEL G

SWITCH ASSY, OIL LEVEL

€ 28.50

4464331000
ref: 8

GASKET (NAS)

€ 2.50
