OIL PUMP
TS125XU 1986 (G) UNITED KINGDOM (E02)

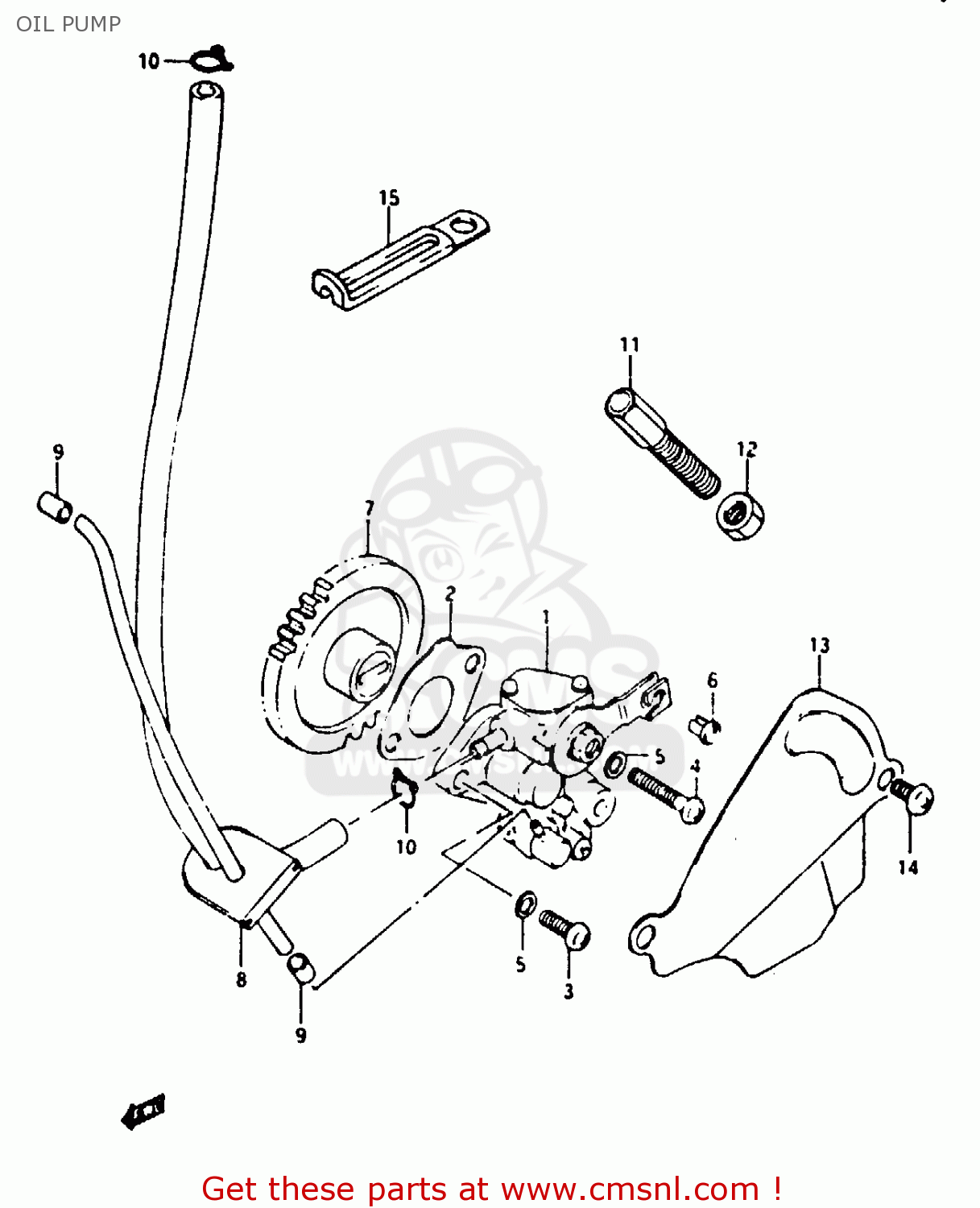

Oil pump diagram TS125XU 1986 (G) UNITED KINGDOM (E02)
OIL PUMP TS125XU 1986 (G) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
1610001A00
ref: 1
PUMP ASSY, OIL
€ 125.00
2
1673103101
ref: 2
GASKET,OIL PUMP (NAS)
€ 2.50
3
0211205168
ref: 3
SCREW
€ 2.50
4
0211205308
ref: 4
SCREW
€ 1.50
5
0832121058
ref: 5
LOCK WASHER
€ 2.00
6
1629203112
ref: 6
TERMINAL,CABLE
€ 3.50
7
1633001A00
ref: 7
GEAR, OIL PUMP DRIVEN (NT:29)
€ 29.50
8
1682001A00
ref: 8
HOSE, OIL
€ 9.50
9
0940104401
ref: 9
CLIP
€ 2.50
10
0940108401
ref: 10
CLIP
€ 1.50
11
0911908014
ref: 11
BOLT
€ 3.50
12
0831012088
ref: 12
NUT
€ 2.00
13
1138501A00
ref: 13
CAP, OIL PUMP INSPECTION
€ 5.00
14
0211206105
ref: 14
SCREW
€ 1.50
15
0940406402
ref: 15
CLAMP
€ 2.50
