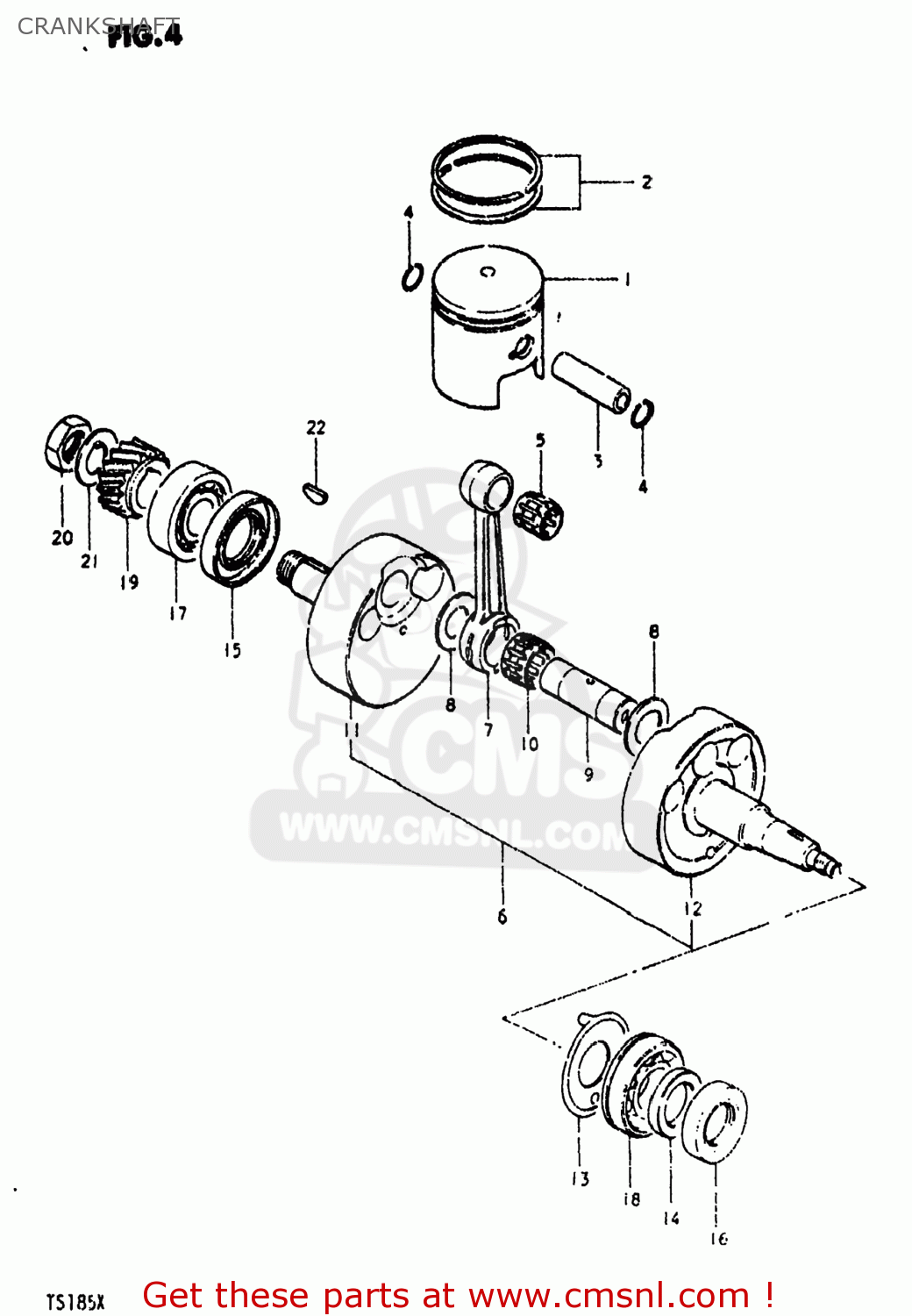

CRANKSHAFT

ref

part #

description

quantity

1-1

1211029900
ref: 1-1

PISTON

€ 92.00

1-2

1211029900050
ref: 1-2
12100-29900-050

PISTON

€ 92.00

1-3

1211029900100
ref: 1-3
12100-29900-100

PISTON

€ 98.00

2-1

1214029010
ref: 2-1

RING SET,PISTON

€ 44.50

2-2

1214029010050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 29.00

2-3

1214097311
ref: 2-3

RING SET,PISTON 1.00 OVERSIZE

€ 36.00

3

1215118001
ref: 3
12151-60D00

PIN,PISTON

€ 15.00

4

0938116001
ref: 4

RING,SNAP 16MM

€ 1.50

5

0926316005
ref: 5
09263-16015

BEARING

€ 15.00

6

1220029601
ref: 6
12200-29602

CRANKSHAFT ASSEMBLY

€ 791.50

7

1216193000
ref: 7
12161-41500

ROD, CONNECTING

€ 109.50

8

0916022010
ref: 8

WASHER(22X35X1)

€ 6.50

9

1221129001
ref: 9

PIN,CRANK

€ 30.50

10

0926322006
ref: 10
09263-22032

BEARING 22X28X16

€ 22.50

11

1222129600
ref: 11

CRANKSHAFT,R

€ 112.00

12

1226129601
ref: 12
12261-29602

CRANKSHAFT,LEFT

€ 120.50

13

1251129100
ref: 13

PLATE,CSHAFT OIL GUIDE

€ 8.00

14

0918025029
ref: 14

SPACER(25X34X4.5)

€ 3.00

15

0928326007
ref: 15

SEAL,OIL(26X52X8)

€ 7.50

16

0928325066
ref: 16

SEAL,OIL(25X44X7)

€ 7.00

17

0926220009
ref: 17
09262-20073

BEARING

€ 19.00

18

0926925013
ref: 18

BEARING(25X62X17)

€ 41.50

19

2111129000
ref: 19

GEAR,PRIMARY DRIVE

€ 30.00

20

0914018002
ref: 20

NUT

€ 3.50

21

0916618001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00
