REAR FENDER - SHOCK ABSORBER
TS185 1980 (T) USA (E03)

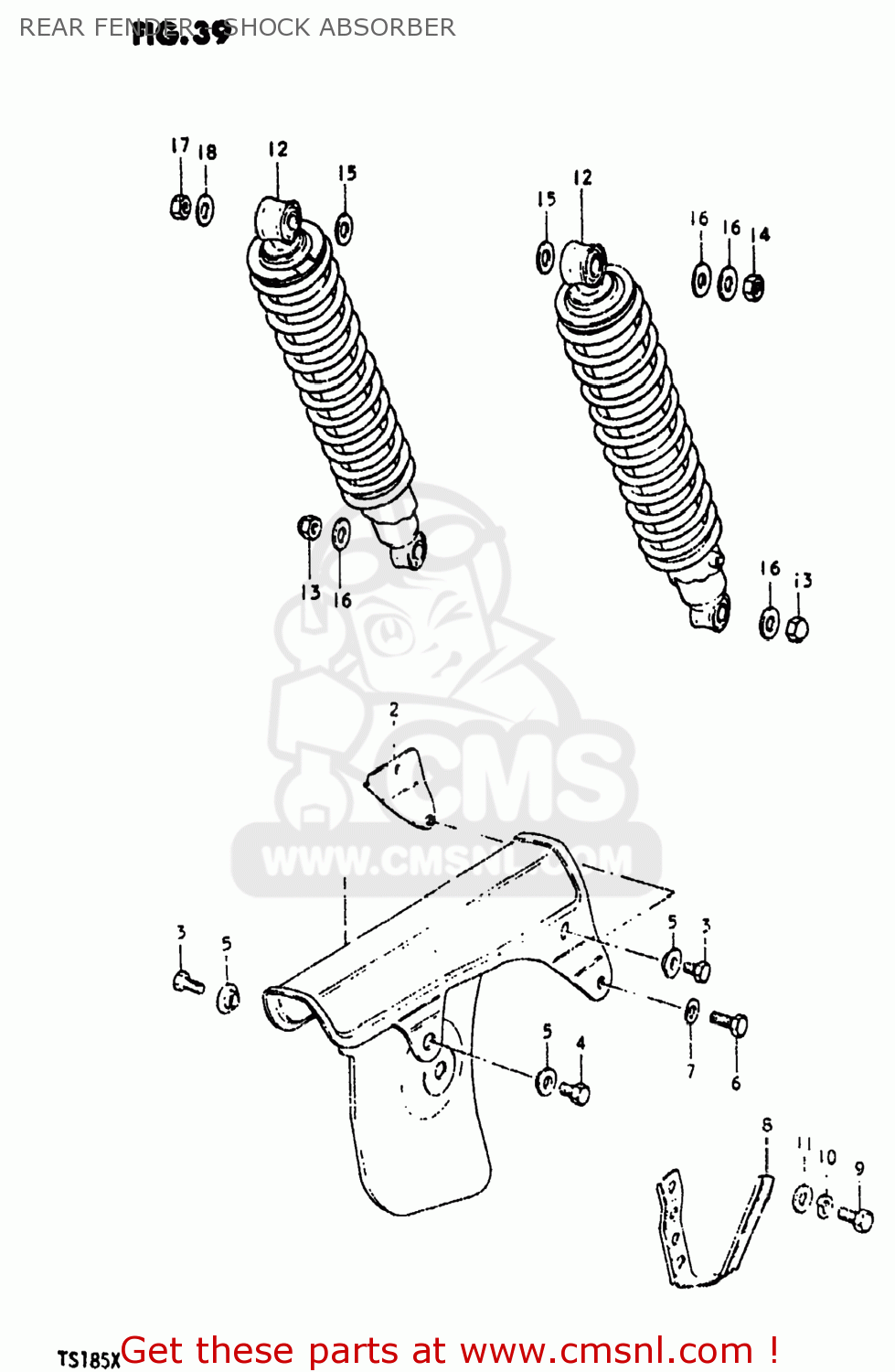

Rear fender - shock absorber diagram TS185 1980 (T) USA (E03)
REAR FENDER - SHOCK ABSORBER TS185 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6131129900
ref: 1
CASE,CHAIN
€ 26.50
2
6138029900
ref: 2
REINFORCEMENT,CHAIN
€ 7.00
3
0910006011
ref: 3
BOLT(6X8)
€ 2.50
4
0110706108
ref: 4
01500-06107
BOLT
€ 2.00
5
0916906010
ref: 5
WASHER
€ 3.00
6
0110706168
ref: 6
01500-06167
BOLT, UPPER
€ 3.00
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
6134148501
ref: 8
61341-48504
GUIDE,CHAIN
€ 10.00
9
0110708128
ref: 9
01500-08127
BOLT 8X12
€ 2.50
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
6210029901
ref: 12
ABSORBER ASSY,RR SHOCK
€ 155.00
13
0831311108
ref: 13
08313-10107
NUT, LOWER LH
€ 2.50
14
0831011108
ref: 14
08310-00107
NUT
€ 2.50
15
0832211128
ref: 15
08322-01127
WASHER
€ 2.00
16
0916010001
ref: 16
09160-10093
WASHER
€ 2.00
17
0831012128
ref: 17
09140-12039
NUT
€ 3.00
18
0916012012
ref: 18
09160-12082
WASHER (12.5X24X3.2)
€ 2.50
