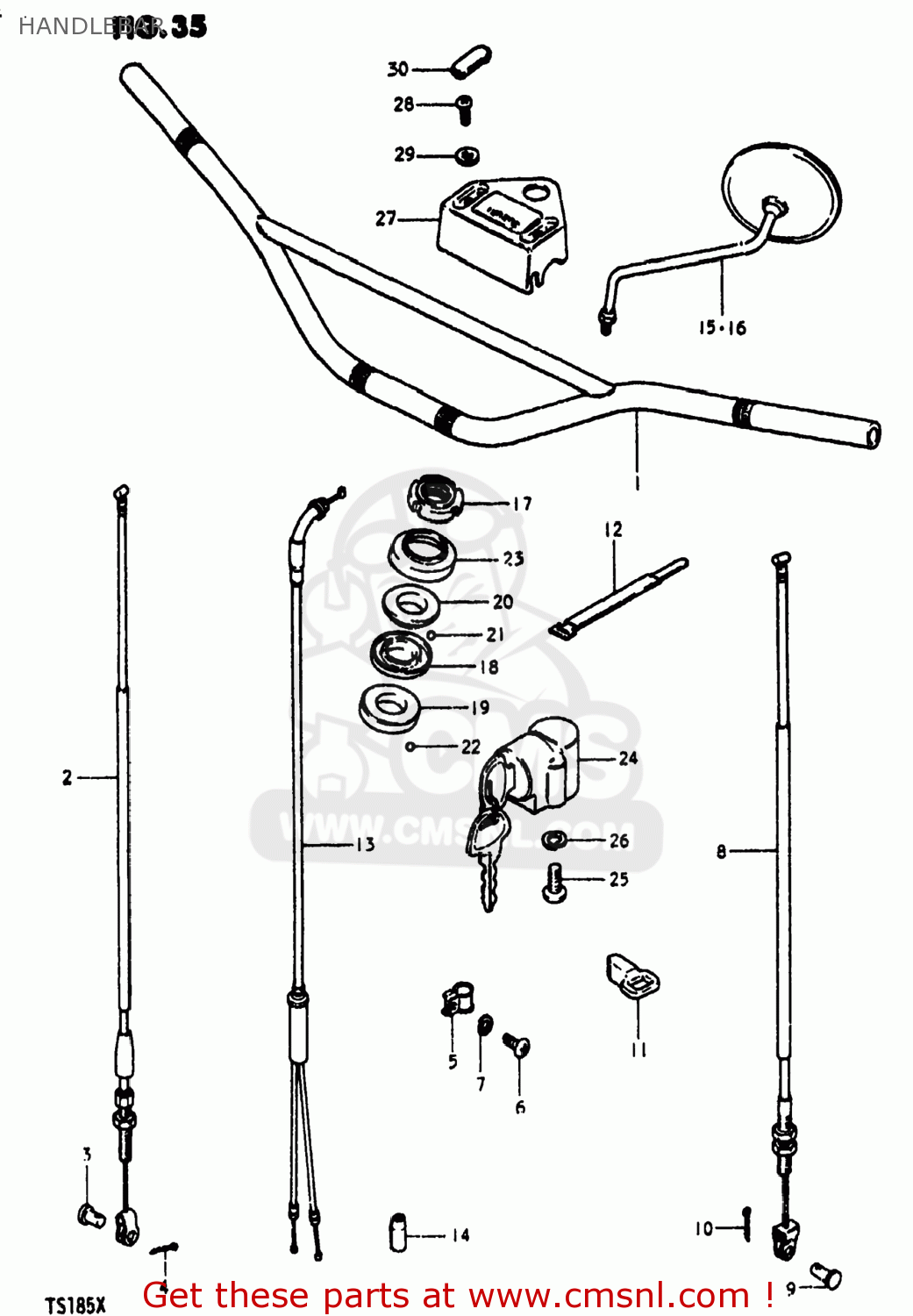

HANDLEBAR

ref

part #

description

quantity

1-1

5611029404291
ref: 1-1
56110-29405-13L

HANDLEBAR

€ 214.50

1-2

5611029302
ref: 1-2
56110-29405-08C

HANDLEBAR

€ 69.50

2

5811029300
ref: 2
58110-29303

CABLE,FRONT BRAKE

€ 29.50

3

0920006013
ref: 3

PIN(L:13.5)

€ 2.00

4

0411120158
ref: 4
04111-2015A

PIN

€ 1.50

5-1

5862132400
ref: 5-1
58621-40401

GUIDE,CABLE

€ 3.50

5-2

5862140401
ref: 5-2

GUIDE,CABLE

€ 3.50

6

0211206108
ref: 6
02112-06107

SCREW

€ 1.50

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

5820029900
ref: 8
58200-46090

CABLE ASSEMBLY,CLUTCH

€ 19.00

9

0920006011
ref: 9

PIN(L:15)

€ 2.50

10

0411120158
ref: 10
04111-2015A

PIN

€ 1.50

11

5862129301
ref: 11

GUIDE,CLUTCH CABLE

€ 5.00

12

0940718301
ref: 12

CLAMP

€ 6.00

13-1

5830029900
ref: 13-1
58300-29502

CABLE ASSEMBLY,THROTTLE

€ 36.50

13-2

5830029901
ref: 13-2
58300-29502

CABLE ASSEMBLY,THROTTLE

€ 36.50

14

0928707002
ref: 14

SEAL,DUST(7X18X30)

€ 2.50

15

5650045012
ref: 15
56500-45013

MIRROR ASSEMBLY,RIGHT

€ 72.50

16

5660045012
ref: 16
56600-45013

MIRROR ASSEMBLY,LEFT

€ 73.00

17

5163128000
ref: 17

NUT,STEERING STEM(25X44X10)

€ 12.50

18

5161120002
ref: 18

RACE,STEERING INNER UPR

€ 5.50

19

5161133002
ref: 19

LACE,STEERING INNER LWR

€ 7.00

20

5162128000
ref: 20

RACE,STEERING OUTER UPR

€ 7.00

21

0611106003
ref: 21

BALL

€ 1.50

22

0611108003
ref: 22

BALL

€ 1.50

23

5164325001
ref: 23

DUST SEAL,STEERING UPR

€ 4.50

24

5191025310
ref: 24
51910-25311

LOCK ASSEMBLY,STEERING

€ 22.50

25

0211205128
ref: 25
02112-05127

SCREW

€ 2.50

26

0832121058
ref: 26
08321-0105A

LOCK WASHER

€ 2.00

27

5617148501
ref: 27
56171-48502

COVER,STEERING HEAD

€ 14.00

28

0211206128
ref: 28
02112-06127

SCREW 6X12

€ 2.00

29

0832221068
ref: 29
08322-01067

WASHER

€ 2.00

30

3638848500
ref: 30
36388-48501

CAP,PILOT BOX BOLT

€ 4.50
