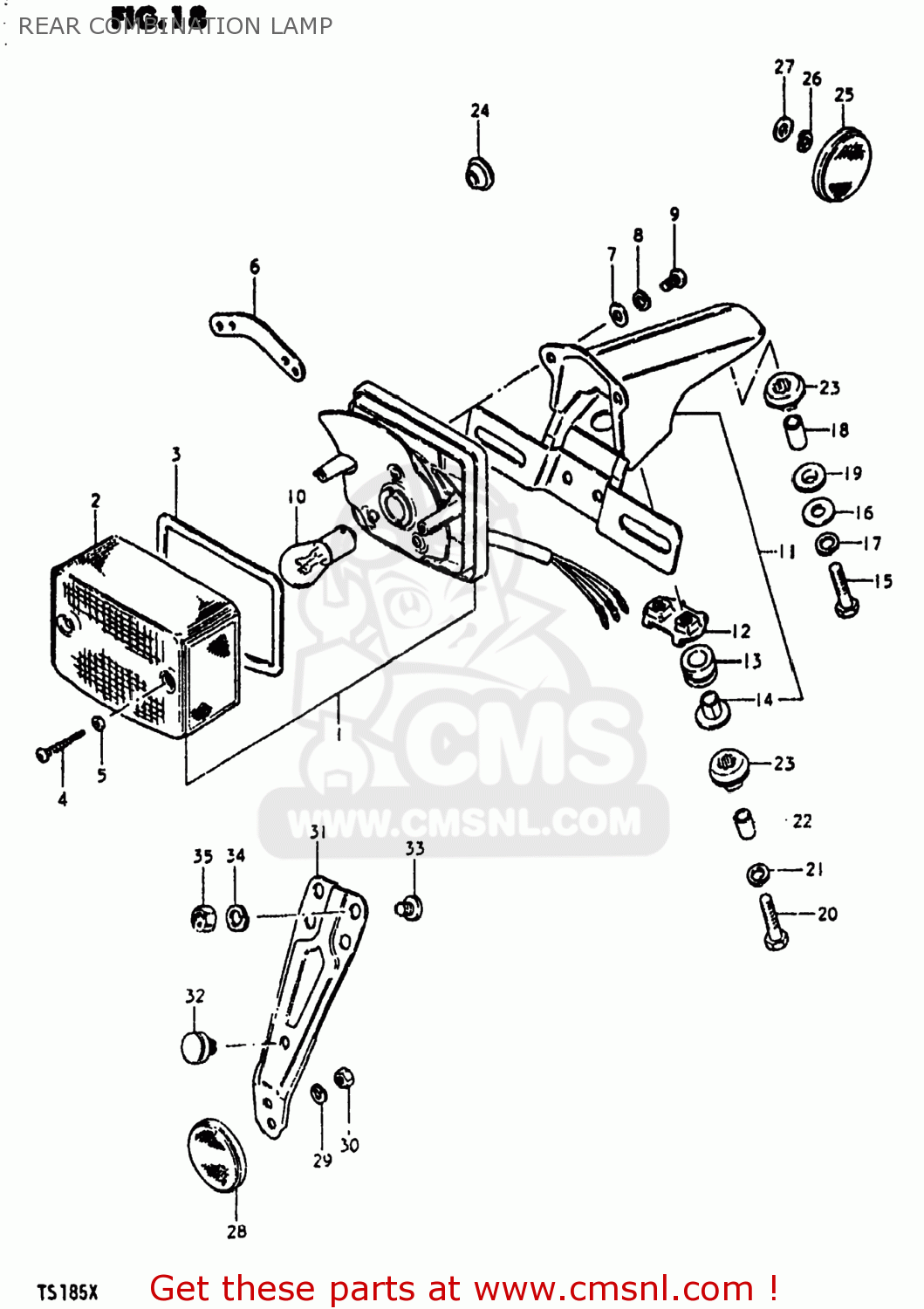

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572048510999
ref: 1
35720-37430-999

LAMP UNIT,REAR COMBINATION

€ 118.50

2

3571248510
ref: 2

LENS

€ 80.50

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

3562549030
ref: 4
03211-04306

BOLT

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3571648510
ref: 6

PLATE,REAR COMBINATION LAMP

€ 9.00

7

0832221058
ref: 7
08322-01057

WASHER

€ 2.50

8

0832121058
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

9

0211205128
ref: 9
02112-05127

SCREW

€ 2.50

10

0947106030
ref: 10

BULB(6V32/3CP,STANLEY)

€ 12.50

11

3573048530
ref: 11

BRACKET UNIT,TAIL LAMP

€ 55.00

12

3571630950
ref: 12

PLATE

€ 10.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576630950
ref: 14

SPACER

€ 2.00

15

0110706308
ref: 15
01500-06307

BOLT

€ 2.50

16

0916006027
ref: 16
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

17

0832121068
ref: 17
08321-01067

LOCK WASHER

€ 2.50

18

0918006072
ref: 18
09180-06271

SPACER

€ 2.00

19

0932009003
ref: 19

CUSHION

€ 2.00

20

0110706408
ref: 20
01500-0640B

BOLT 6X40

€ 2.00

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

0918006006
ref: 22
09180-07019

SPACER (6.8X10X11.5)

€ 3.00

23

0932009010
ref: 23

CUSHION

€ 2.50

24

0930807004
ref: 24

GROMMET

€ 2.50

25

3595030910
ref: 25

REFLEX REFLECTOR,FR

€ 43.50

26

0832121058
ref: 26
08321-0105A

LOCK WASHER

€ 2.00

27

0832221058
ref: 27
08322-01057

WASHER

€ 2.50

28

3597030910
ref: 28

REFLEX REFLECTOR,RR

€ 47.50

29

0832121058
ref: 29
08321-0105A

LOCK WASHER

€ 2.00

30

0831011058
ref: 30
08310-00057

NUT

€ 2.50

31

3597448530
ref: 31
35974-48532

BRACKET

€ 7.00

32

0932105010
ref: 32

CUSHION

€ 3.50

33

0214206108
ref: 33
02142-06107

SCREW

€ 2.00

34

0832121068
ref: 34
08321-01067

LOCK WASHER

€ 2.50

35

0831011068
ref: 35
08310-00067

NUT

€ 2.50

all assemblies
