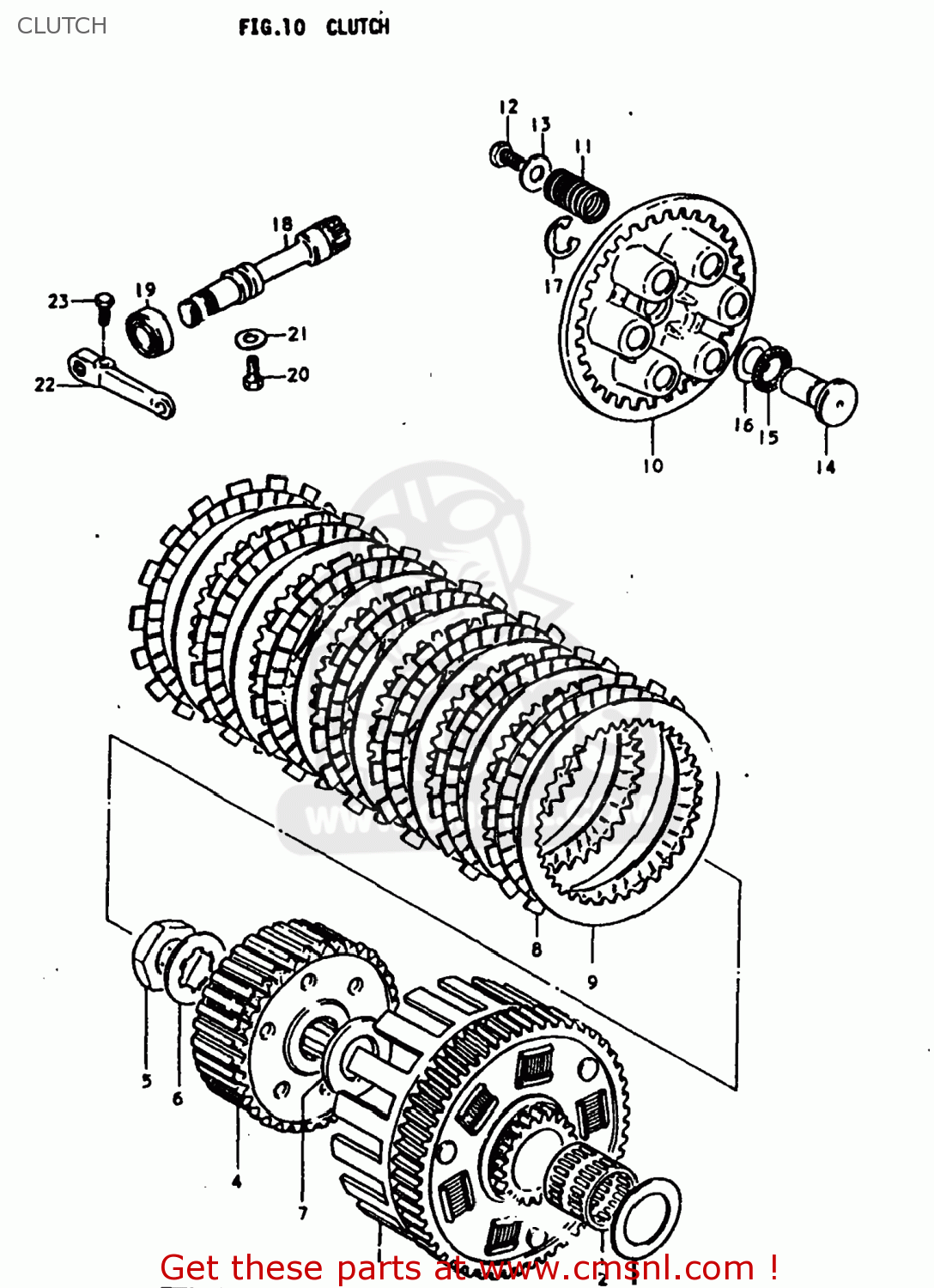

CLUTCH

ref

part #

description

quantity

1

2120030003
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 279.50

2

0926325014
ref: 2

ROLLER BEARING (25X30X3

€ 18.50

3

0916025009
ref: 3

WASHER(25X41X3)

€ 5.00

4-1

2141130000
ref: 4-1
21411-30001

HUB,CLUTCH SLEEVE

€ 55.50

4-2

2141130001
ref: 4-2

HUB,CLUTCH SLEEVE

€ 55.50

5

0914020002
ref: 5
09140-20001

NUT (20MM)

€ 3.50

6

0916720006
ref: 6
09167-20009

WASHER,LOCK

€ 3.00

7

0916020015
ref: 7

WASHER(20X44X3)

€ 4.50

8

2144116500
ref: 8
21442-37401

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

9

2145131000
ref: 9

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

10

2146216500
ref: 10
21462-14301

DISC,CLUTCH PRESSURE

€ 51.00

11

0944019004
ref: 11

SPRING

€ 3.00

12

0110706168
ref: 12
01500-06167

BOLT, UPPER

€ 3.00

13

0916006020
ref: 13
09160-06066

WASHER

€ 2.00

14

2316516501
ref: 14
23165-16502

RACK,CLUTCH RELEASE

€ 23.00

15

0926315003
ref: 15

BEARING(15X28X2)

€ 7.00

16

0916015015
ref: 16
09160-15045

WASHER

€ 4.00

17

0833211128
ref: 17
08332-1112A

E RING 12MM

€ 2.00

18

2326116500
ref: 18
23261-16501

PINION,CLUTCH RELEASE

€ 40.50

19

0928512002
ref: 19
09285-12006

OIL SEAL

€ 7.00

20

0913506009
ref: 20

BOLT(6X12)

€ 2.00

21

0832221068
ref: 21
08322-01067

WASHER

€ 2.00

22

2327130500
ref: 22
23271-45400

ARM,CLUTCH RELEASE

€ 31.50

23

0110706208
ref: 23
01500-06207

BOLT

€ 2.00

all assemblies
