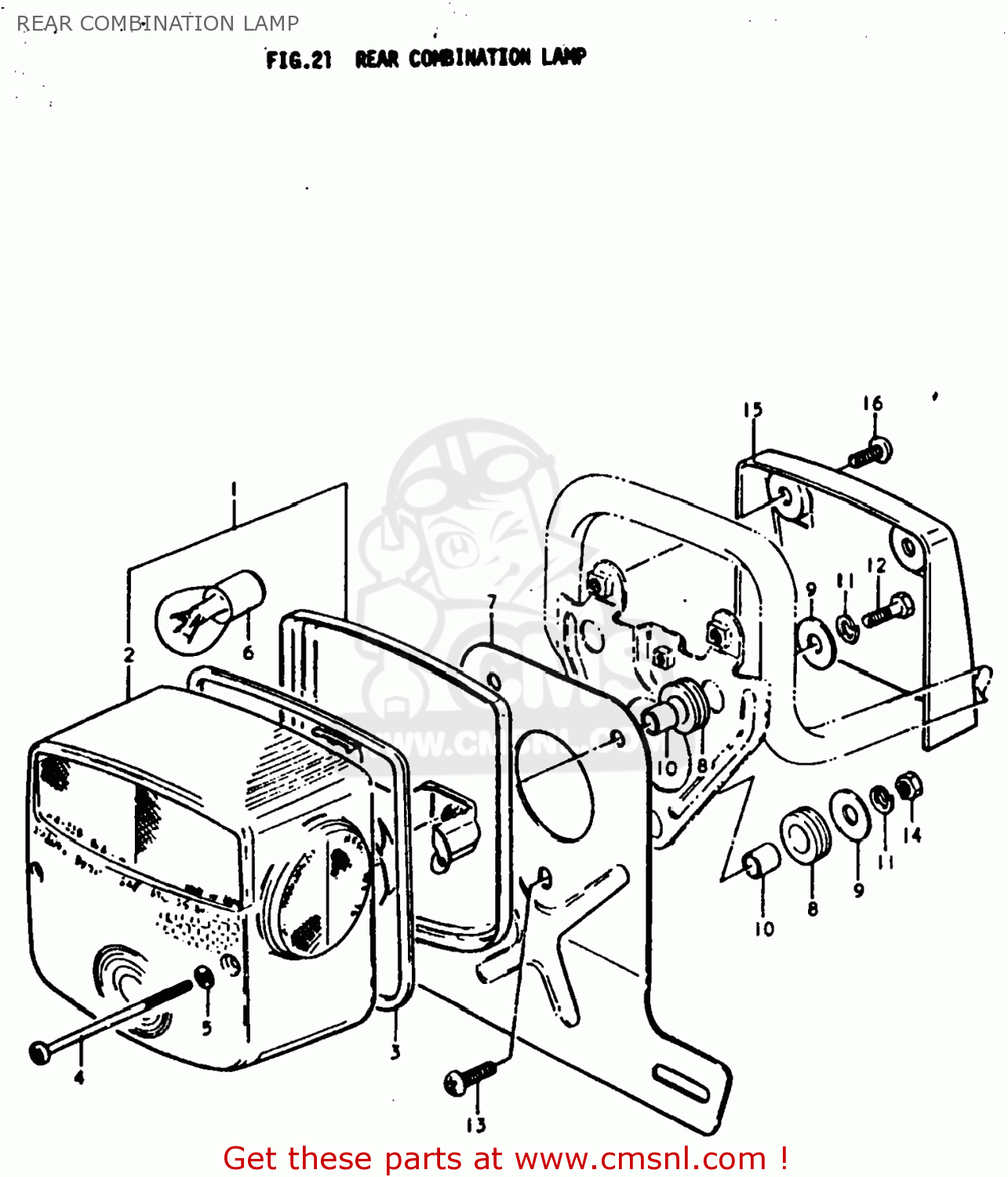

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571030510
ref: 1-1
35710-30512

LAMP ASSEMBLY,REAR COMBINATION

€ 52.00

1-2

3571030511
ref: 1-2
35710-30512

LAMP ASSEMBLY,REAR COMBINATION

€ 52.00

1-3

3571030512
ref: 1-3

LAMP ASSEMBLY,REAR COMBINATION

€ 52.00

2-1

3571230510
ref: 2-1
35712-30512

LENS,REAR COMBINATION LAMP

€ 65.50

2-2

3571230511
ref: 2-2
35712-30512

LENS,REAR COMBINATION LAMP

€ 65.50

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0211104558
ref: 4
02112-04558

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947106030
ref: 6

BULB(6V32/3CP,STANLEY)

€ 12.50

7-1

3592730500
ref: 7-1
35927-30504

BRACKET,LICENSE PLATE

€ 15.50

7-2

3592730503
ref: 7-2
35927-30504

BRACKET,LICENSE PLATE

€ 15.50

8

0932009002
ref: 8

CUSHION

€ 4.00

9

0916006004
ref: 9
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

10

3576615010
ref: 10
35766-37110

SPACER,REAR COMBINATION LAMP

€ 11.50

11

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

12

0110706208
ref: 12
01500-06207

BOLT

€ 2.00

13

0214206207
ref: 13

SCREW

€ 2.00

14

0831011068
ref: 14
08310-00067

NUT

€ 2.50

15

3579130501
ref: 15

COVER

€ 23.00

16-1

0912506001
ref: 16-1
02142-0612A

SCREW

€ 2.00

16-2

0214206125
ref: 16-2
02142-0612A

SCREW 6X12

€ 2.00

all assemblies
