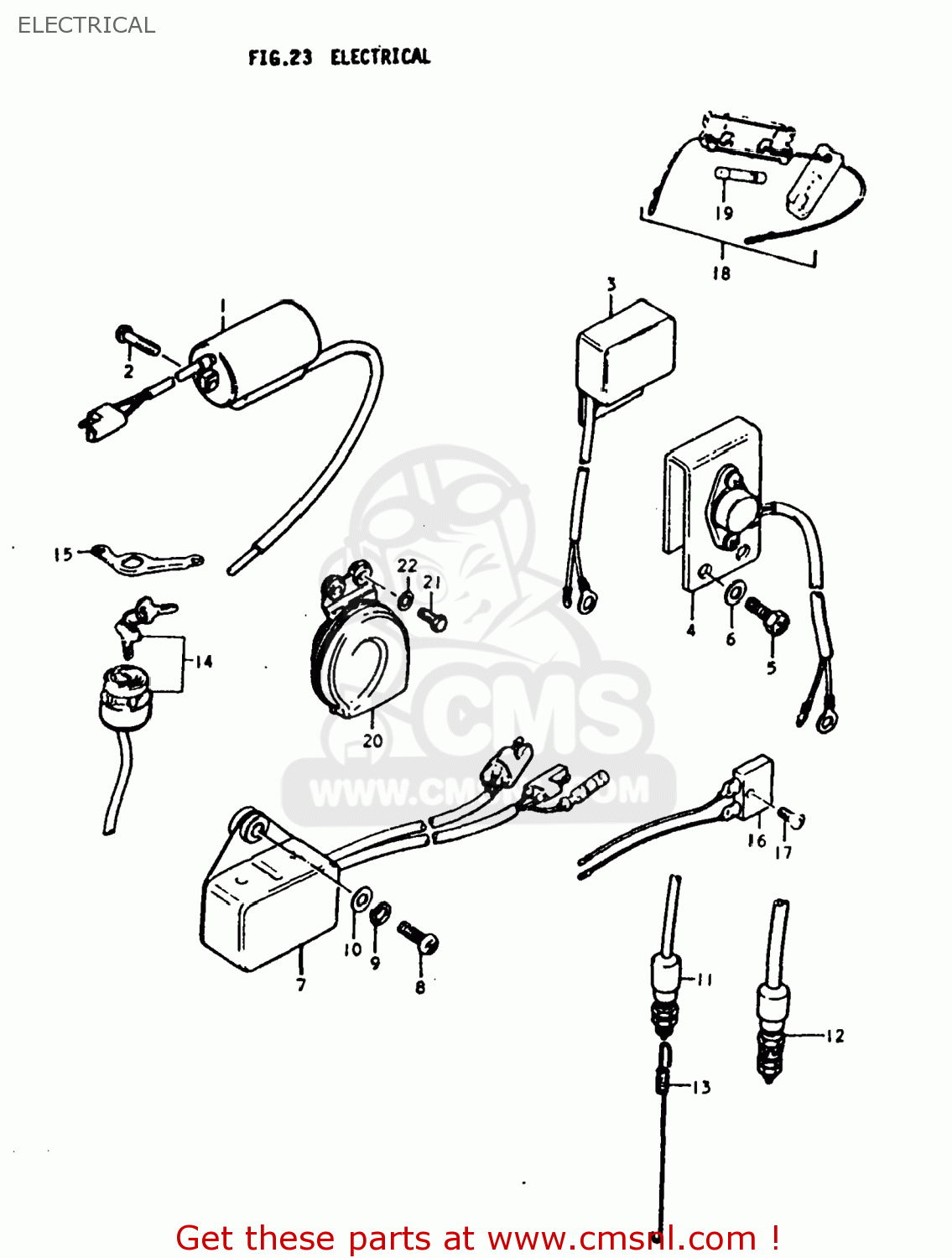

ELECTRICAL

ref

part #

description

quantity

1-1

3341030020
ref: 1-1
33410-14120

COIL ASSEMBLY,IGNITION

€ 100.00

1-2

3341028600
ref: 1-2

COIL ASSY,IGNITION

€ 82.50

2

0211205208
ref: 2
02112-05207

SCREW 5X20

€ 3.00

3

3250025600
ref: 3

REGULATOR ASSEMBLY

€ 176.50

4

3250027600
ref: 4
32500-25600

REGULATOR ASSEMBLY

€ 176.50

5

0912805101
ref: 5

SCREW(5X12)

€ 1.50

6

0832221058
ref: 6
08322-01057

WASHER

€ 2.50

7-1

3290030520
ref: 7-1

CDI UNIT

€ 262.50

7-2

3290030511
ref: 7-2

CDI UNIT

€ 204.00

8

0211206208
ref: 8
02112-06207

SCREW

€ 2.00

9

0832121068
ref: 9
08321-01067

LOCK WASHER

€ 2.50

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

3774019051
ref: 11
37740-48071

SWITCH ASSY, STOP LAMP

€ 22.00

12

3774004570
ref: 12
37740-48071

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

13

0944306027
ref: 13

SPRING

€ 4.50

14

3711025318
ref: 14
37110-25319

SWITCH ASSEMBLY,IGNITION

€ 60.00

15

3711536000
ref: 15
37115-36001

BRACKET,IGNITION SWITCH

€ 17.00

16-1

3280019062
ref: 16-1
32800-16A00

RECTIFIER ASSEMBLY

€ 10.50

16-2

3280019063
ref: 16-2
32800-16A00

RECTIFIER ASSEMBLY

€ 10.50

17

0211205168
ref: 17
02112-05167

SCREW

€ 2.50

18

3674015010
ref: 18
36740-15011

BOX ASSEMBLY,FUSE

€ 11.00

19

0948115001
ref: 19

FUSE(15A)

€ 3.00

20

3850025332
ref: 20

HORN ASSY

€ 45.50

21

0110708168
ref: 21
01500-0816B

BOLT

€ 2.00

22

0832211088
ref: 22
08322-01087

WASHER

€ 2.00

all assemblies
