FRAME
TS250 1978 (C) USA (E03)

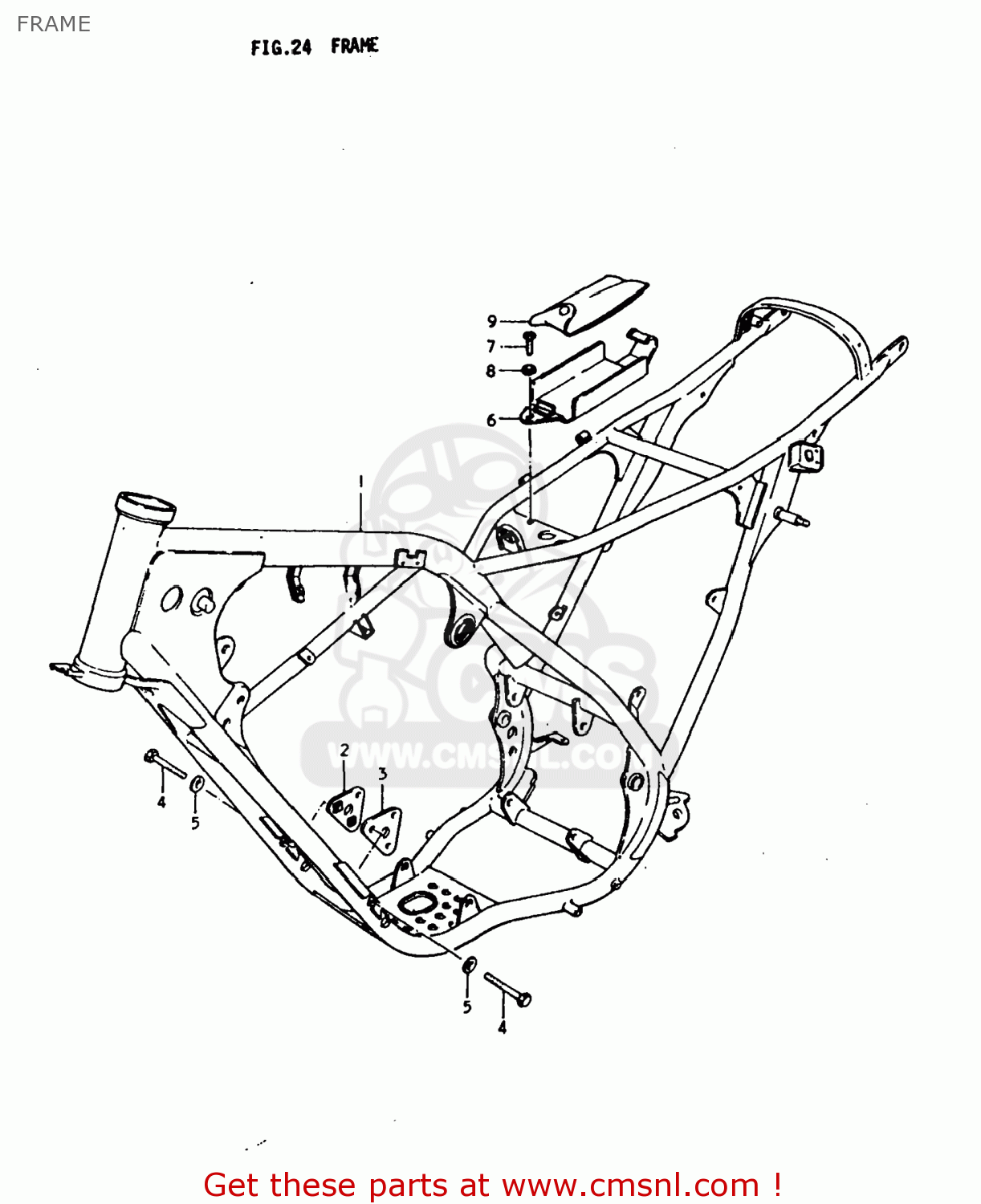

Frame diagram TS250 1978 (C) USA (E03)
FRAME TS250 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110030500019
ref: 1-1
41100-30501-019
FRAME
€ 289.00
1-2
4110030501019
ref: 1-2
FRAME
€ 289.00
2
4198030500
ref: 2
PLATE,ENGINE MOUNTING
€ 6.50
3
4199030500
ref: 3
PLATE,ENG MTG,L
€ 5.50
4
0110708558
ref: 4
01500-08557
BOLT 8X55
€ 3.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
4155030500
ref: 6
HOLDER,TOOL
€ 0.00
7
0211206108
ref: 7
02112-06107
SCREW
€ 1.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0980000146
ref: 9
09800-21028
TOOL ASSY
€ 43.50
