CHAIN CASE
TS250 1980 (T) USA (E03)

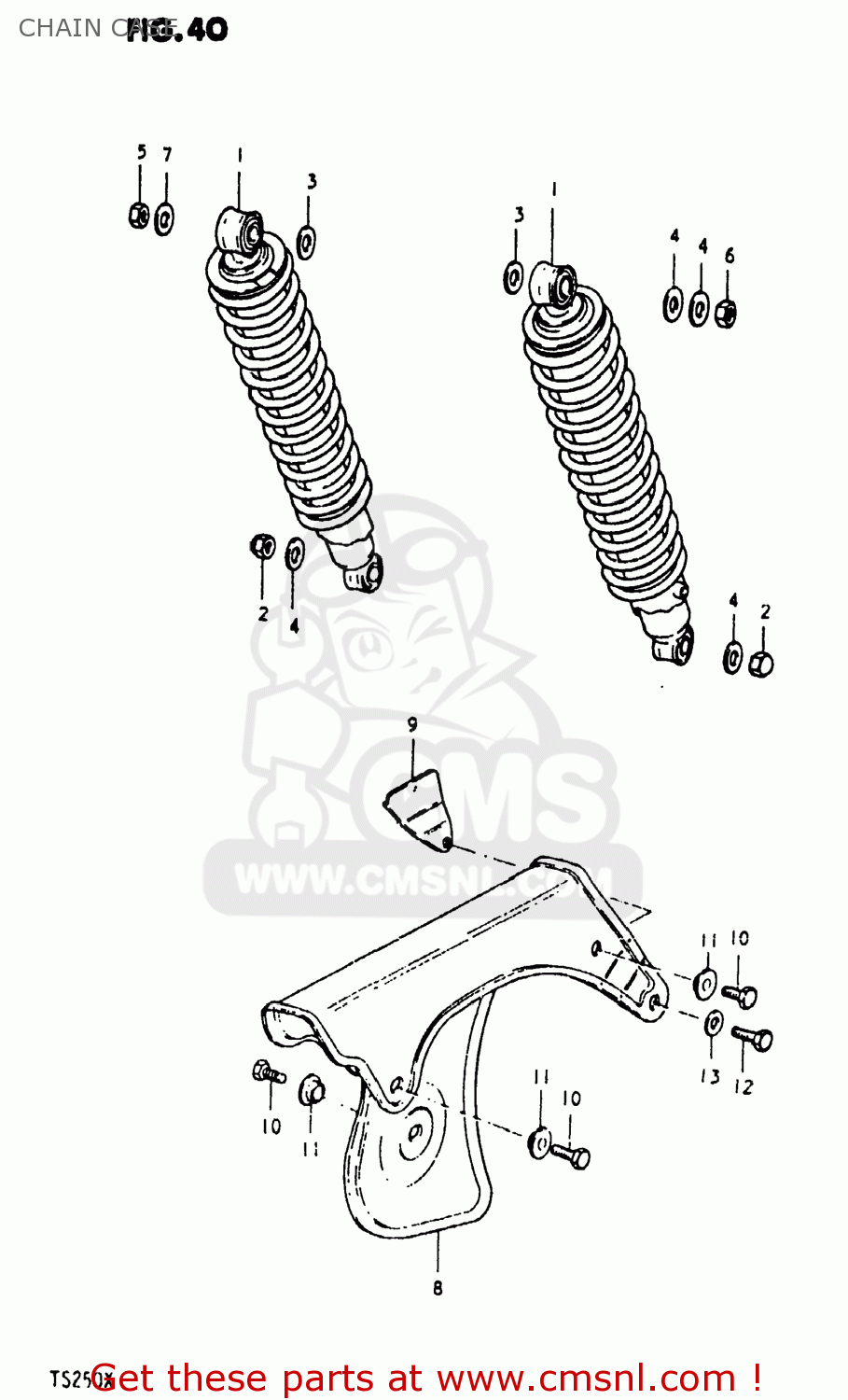

Chain case diagram TS250 1980 (T) USA (E03)
CHAIN CASE TS250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6210030900
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 267.50
2
0831311108
ref: 2
08313-10107
NUT, LOWER LH
€ 2.50
3
0832211128
ref: 3
08322-01127
WASHER
€ 2.00
4
0916010001
ref: 4
09160-10093
WASHER
€ 2.00
5
0831012128
ref: 5
09140-12039
NUT
€ 3.00
6
0831011108
ref: 6
08310-00107
NUT
€ 2.50
7
0916012012
ref: 7
09160-12082
WASHER (12.5X24X3.2)
€ 2.50
8
6131130501019
ref: 8
CASE,CHAIN
€ 47.00
9
6138030500
ref: 9
REINFORCEMENT,CHAIN CASE
€ 6.00
10
0910006011
ref: 10
BOLT(6X8)
€ 2.50
11
0916906010
ref: 11
WASHER
€ 3.00
12
0110706208
ref: 12
01500-06207
BOLT
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
