KICK STARTER
TS250 1980 (T) USA (E03)

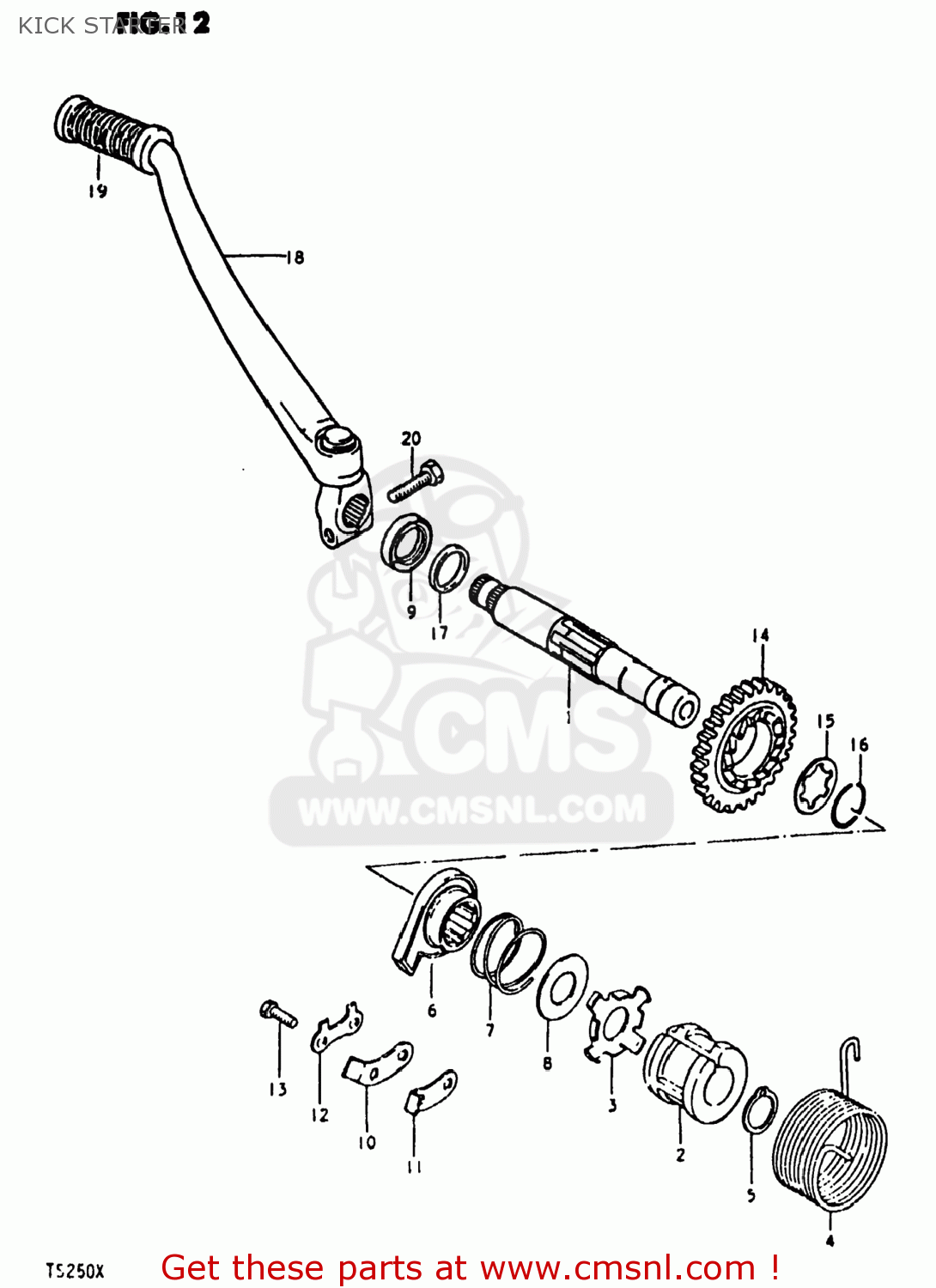

Kick starter diagram TS250 1980 (T) USA (E03)
KICK STARTER TS250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621130500
ref: 1
SHAFT,KICK STARTER
€ 76.50
2
2622130531
ref: 2
GUIDE,KICK SHAFT SPRING
€ 6.00
3
2622216500
ref: 3
HOLDER,KICK SHAFT SPRING
€ 0.00
4
0944845003
ref: 4
SPRING
€ 4.50
5
0938017001
ref: 5
CIRCLIP
€ 2.00
6-1
2623130001
ref: 6-1
26231-22A10
STARTER,KICK
€ 47.50
6-2
2623130002
ref: 6-2
26231-22A10
STARTER,KICK
€ 47.50
7
0944032002
ref: 7
SPRING
€ 2.00
8
0821117342
ref: 8
WASHER
€ 3.00
9
0928320025
ref: 9
SEAL,OIL(20X37X7)
€ 6.50
10
2623230000
ref: 10
GUIDE,KICK STARTER
€ 6.00
11
2623330000
ref: 11
STOPPER,KICK STARTER
€ 4.00
12
0916906003
ref: 12
WASHER
€ 1.50
13
0110706168
ref: 13
01500-06167
BOLT, UPPER
€ 3.00
14
2624130001
ref: 14
GEAR,KICK STARTER DRIVE
€ 56.00
15
0916722007
ref: 15
WASHER,LOCK
€ 3.50
16
0938022003
ref: 16
CIRCLIP
€ 13.50
17
0918020017
ref: 17
SPACER(20X28X4.5)
€ 3.50
18
2630030501
ref: 18
26300-30502
LEVER ASSEMBLY,KICK STARTER
€ 98.00
19
2635216401
ref: 19
RUBBER,KICK STARTER PEDAL
€ 4.00
20
0110708258
ref: 20
01500-08257
BOLT
€ 2.50
