REAR SWINGING ARM
TS250 1980 (T) USA (E03)

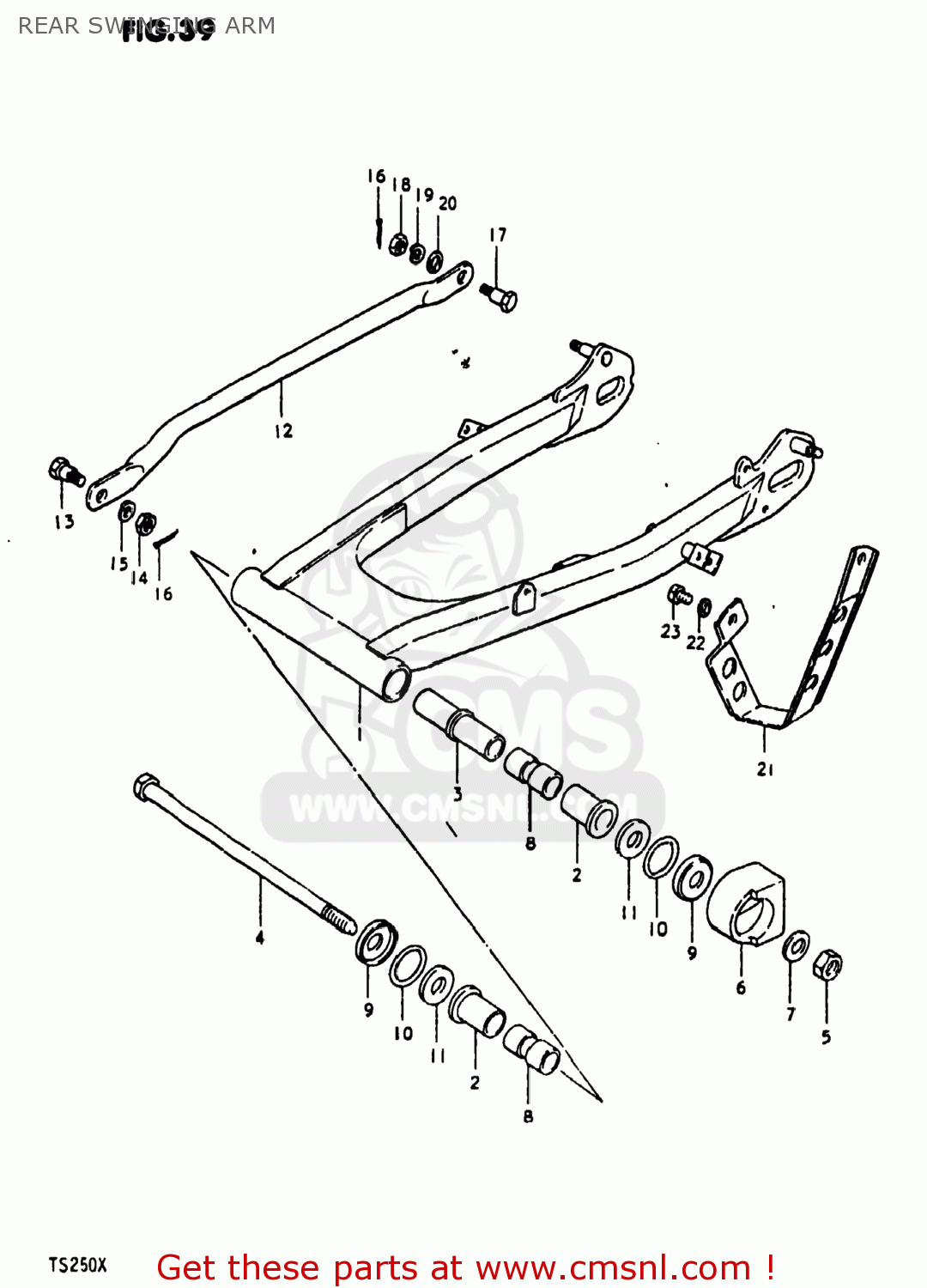

Rear swinging arm diagram TS250 1980 (T) USA (E03)
REAR SWINGING ARM TS250 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
611003088008C
ref: 1-1
61100-30881-08C
SWING ARM ASSEMBLY,REAR
€ 0.00
1-2
6110030880019
ref: 1-2
61100-30881-019
SWING ARM ASSEMBLY,REAR
€ 78.50
2
0930722003
ref: 2
BUSH
€ 18.00
3
6128032000
ref: 3
SPACER,SWING ARM,CENTER
€ 12.50
4
6121115007
ref: 4
SHAFT,REAR SWING ARM
€ 34.50
5
0831921148
ref: 5
08319-2114A
NUT 14MM
€ 3.00
6
6127330901
ref: 6
BUFFER,CHAIN TOUCH DEFLECTOR
€ 9.00
7
0832211148
ref: 7
08322-01147
WASHER
€ 2.00
8
6125115001
ref: 8
SPACER
€ 21.00
9
6126215000
ref: 9
COVER
€ 84.00
10
0928030001
ref: 10
O RING(D:3,ID:29.5)
€ 2.00
11
0916014009
ref: 11
WASHER(14.5X29X2.3)
€ 3.50
12
6431132111
ref: 12
64311-32101-08C
TORQUE LINK,REAR
€ 8.50
13
0911108012
ref: 13
BOLT(8X22.5)
€ 3.00
14
0914008008
ref: 14
NUT
€ 1.50
15
0832121088
ref: 15
08321-01087
LOCK WASHER
€ 2.00
16
0411120158
ref: 16
04111-2015A
PIN
€ 1.50
17
0911110009
ref: 17
BOLT(10X32.5)
€ 5.00
18
0831022108
ref: 18
08310-00107
NUT
€ 2.50
19
0832121108
ref: 19
08321-01107
LOCK WASHER
€ 2.00
20
0832211128
ref: 20
08322-01127
WASHER
€ 2.00
21
6134130500
ref: 21
61341-30501
GUIDE,CHAIN
€ 13.00
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
0110708128
ref: 23
01500-08127
BOLT 8X12
€ 2.50
