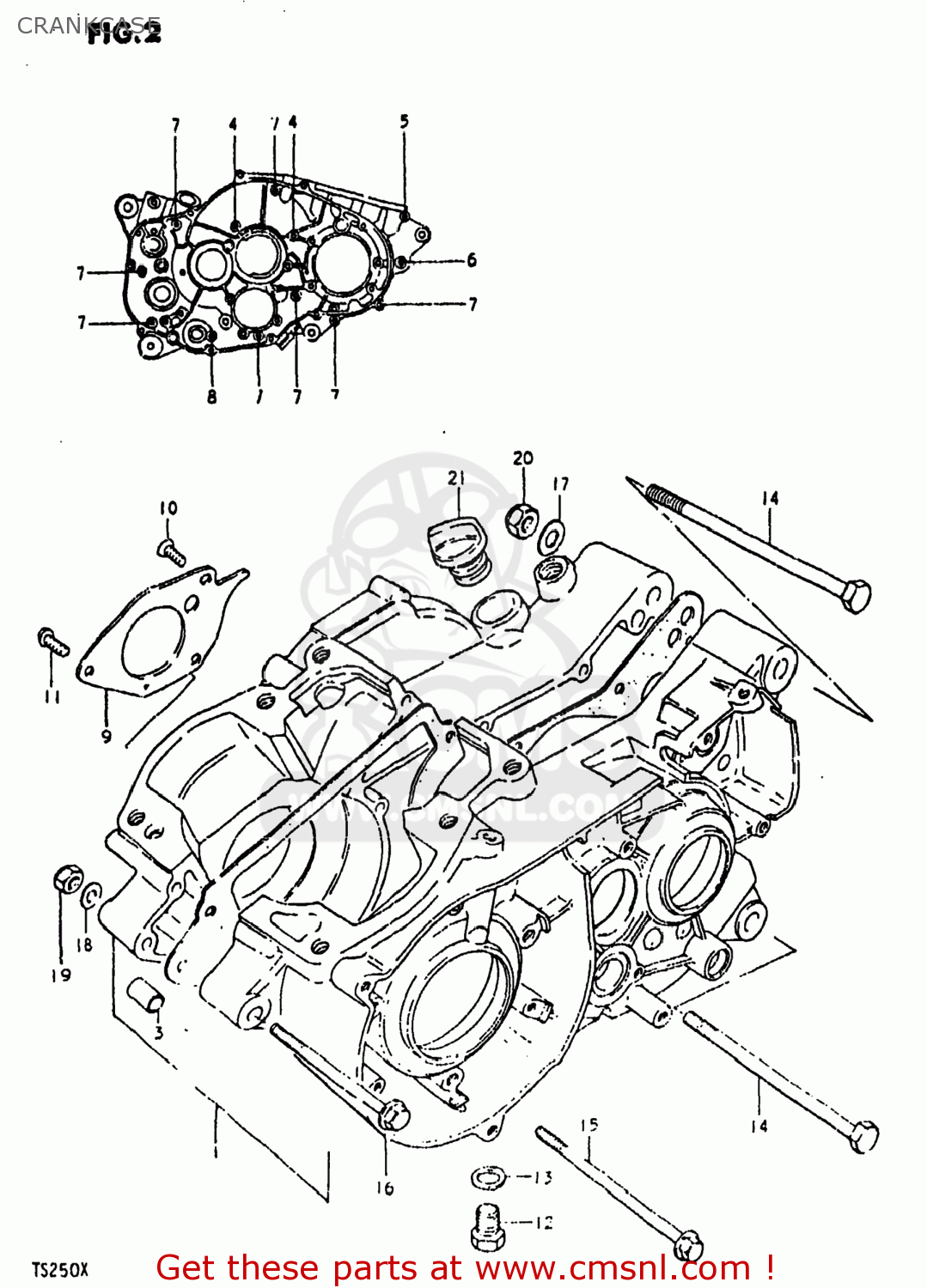

CRANKCASE

ref

part #

description

quantity

1

1130030871
ref: 1

CRANKCASE SET

€ 110.00

2

1148130500
ref: 2
11481-30501

GASKET,CRANKCASE (MCA)

€ 16.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

0212206758
ref: 4

SCREW

€ 2.50

5

0211206658
ref: 5
02112-06657

SCREW 6X65

€ 2.00

6

0211206508
ref: 6
02112-06507

SCREW

€ 2.50

7

0211206458
ref: 7
02112-06457

SCREW (6X45)

€ 2.00

8

0211206358
ref: 8
02112-06357

SCREW (6X35)

€ 2.50

9

1252130001
ref: 9

PLATE,OIL RESERVOIR

€ 4.50

10

0212206168
ref: 10
02122-06167

SCREW

€ 2.00

11

0211206168
ref: 11
02112-06167

SCREW

€ 2.50

12

0924714007
ref: 12
09247-14025

PLUG

€ 3.50

13

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50

14

0910010051
ref: 14
09100-10274

BOLT

€ 6.50

15

0910308026
ref: 15
09103-08109

BOLT

€ 3.50

16

0151708808
ref: 16
01550-0880A

BOLT

€ 4.00

17

0832211108
ref: 17
08322-01107

WASHER

€ 2.50

18

0832211088
ref: 18
08322-01087

WASHER

€ 2.00

19

0831931088
ref: 19
08319-3108A

NUT

€ 2.50

20

0831931108
ref: 20

NUT

€ 3.00

21

0925919001
ref: 21

PLUG

€ 6.00

all assemblies
