FRONT FORK (TS400K)
TS400 1974 (L) USA (E03)

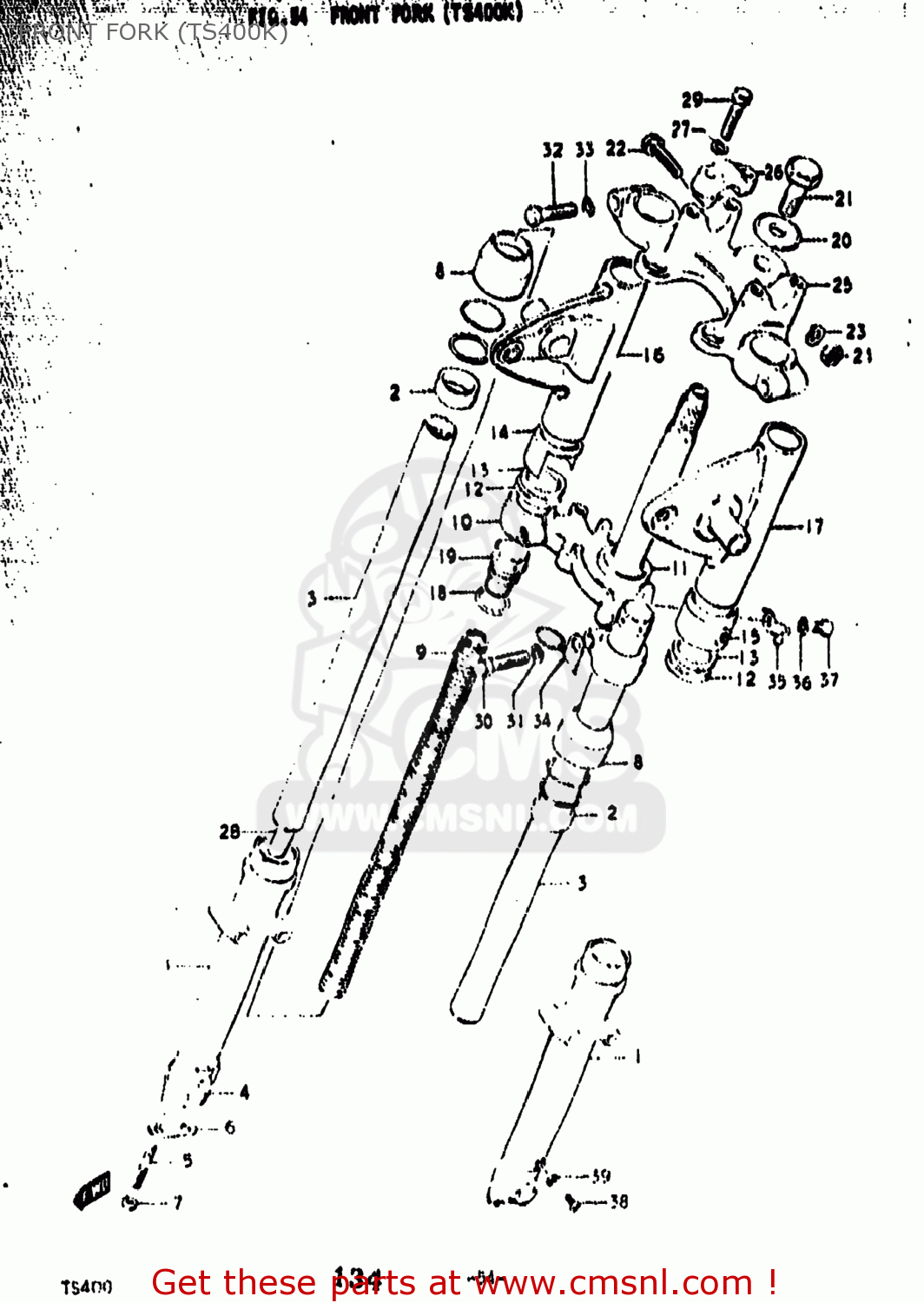

Front fork (ts400k) diagram TS400 1974 (L) USA (E03)
FRONT FORK (TS400K) TS400 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110030610019
ref: 0
DAMPER SET
€ 323.50
1
5113030700
ref: 1
TUBE,OUTER,RIGHT
€ 62.00
2
5115316511
ref: 2
SEAL,OIL
€ 10.50
3
5111130700
ref: 3
TUBE,FORK,INNER
€ 66.50
4
5113216510
ref: 4
HOLDER,AXLE
€ 11.50
5
0142108458
ref: 5
STUD BOLT
€ 2.50
6
5113916511
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
7
0831111088
ref: 7
08310-00087
NUT
€ 2.00
8
5117318510
ref: 8
DUST SEAL,FRONT FORK
€ 4.50
9
5117130600
ref: 9
51171-30601
SPRING,FRONT FORK
€ 20.50
10
5141030600
ref: 10
51410-30601
STEM,STEERING
€ 89.00
11
5162133001
ref: 11
RACE,STEERING OUTER LWR
€ 10.00
12
5155830010
ref: 12
GUIDE, COVER
€ 2.50
13
5155330010
ref: 13
CUSHION,HEADLAMP BRACKET
€ 0.00
14
5155430011
ref: 14
CUSHION,HEADLAMP BRACKET
€ 5.50
15
5155730011
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
5153030610
ref: 16
BRACKET,HEADLAMP HOUSING
€ 53.50
17
5154030610
ref: 17
BRACKET,HEADLAMP,LEFT
€ 53.50
18
5111716310
ref: 18
O RING
€ 4.50
19
5135130010
ref: 19
51351-40210
CAP,FORK INNER TUBE
€ 14.00
20
5135622011
ref: 20
WASHER
€ 6.00
21
5135120010
ref: 21
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
22
5145115010
ref: 22
BOLT,FORK INNER TUBE F
€ 4.00
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0831211108
ref: 24
08310-00107
NUT
€ 2.50
25
5131130210019
ref: 25
HEAD,STEERING STEM
€ 112.50
26
5621112111019
ref: 26
HOLDER,HANDLEBAR
€ 0.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
5114630700
ref: 28
CYLINDER,FRONT FORK
€ 22.00
29
0122108307
ref: 29
01204-08307
BOLT
€ 2.50
30
5145128012
ref: 30
BOLT,FR FORK LWR(12X33)
€ 11.50
31
0832121128
ref: 31
08321-01127
WASHER,LOCK 12
€ 2.50
32
5145115111
ref: 32
BOLT,FORK INNER TUBE F
€ 2.50
33
0832121108
ref: 33
08321-01107
LOCK WASHER
€ 2.00
34
5145528010
ref: 34
GUIDE,CABLE
€ 0.00
35
5145330011
ref: 35
CLIP
€ 3.50
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
37
0211206108
ref: 37
02112-06107
SCREW
€ 1.50
38
0211104087
ref: 38
02112-04087
SCREW
€ 1.50
39
5118303010
ref: 39
GASKET,DRAIN,PLUG (NAS)
€ 3.00
