REAR COMBINATION LAMP (L
TS400 1974 (L) USA (E03)

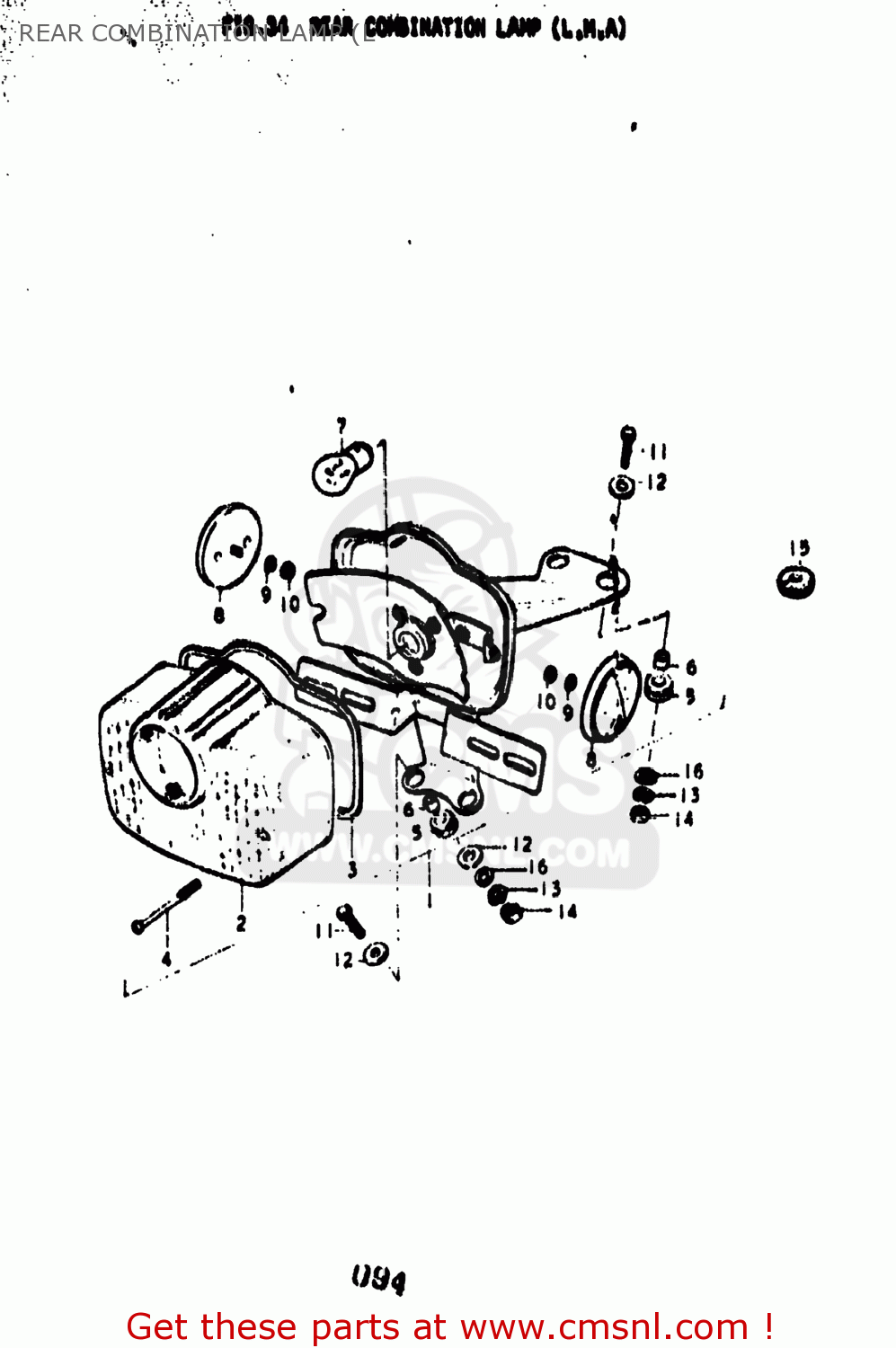

Rear combination lamp (l diagram TS400 1974 (L) USA (E03)
REAR COMBINATION LAMP (L TS400 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571032620
ref: 1-1
LAMP ASSEMBLY,REAR COMBINATION
€ 55.00
1-2
3571032630
ref: 1-2
LAMP ASSEMBLY,REAR COMBINATION
€ 61.00
2
3571227630
ref: 2
35712-23011
LENS,REAR COMBINATION LAMP
€ 50.50
3
3571327630
ref: 3
GASKET (NAS)
€ 5.50
4
0211104558
ref: 4
02112-04558
SCREW
€ 1.50
5
3576615010
ref: 5
35766-37110
SPACER,REAR COMBINATION LAMP
€ 11.50
6
3576515010
ref: 6
CUSHION
€ 9.00
7-1
0947112035
ref: 7-1
BULB(12V23W)
€ 5.50
7-2
0947106030
ref: 7-2
BULB(6V32/3CP,STANLEY)
€ 12.50
8
3597031610
ref: 8
REFLECTOR,REFLEX
€ 19.50
9
0832121058
ref: 9
08321-0105A
LOCK WASHER
€ 2.00
10
0831111058
ref: 10
08310-00057
NUT
€ 2.50
11
0111206208
ref: 11
01500-06207
BOLT
€ 2.00
12
0916006027
ref: 12
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
12
0916006027
ref: 12
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
0831111068
ref: 14
08310-00067
NUT
€ 2.50
15
0930807002
ref: 15
GROMMET
€ 2.50
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
