STAND - FOOTREST (TS400K)

TS400 1974 (L) USA (E03)

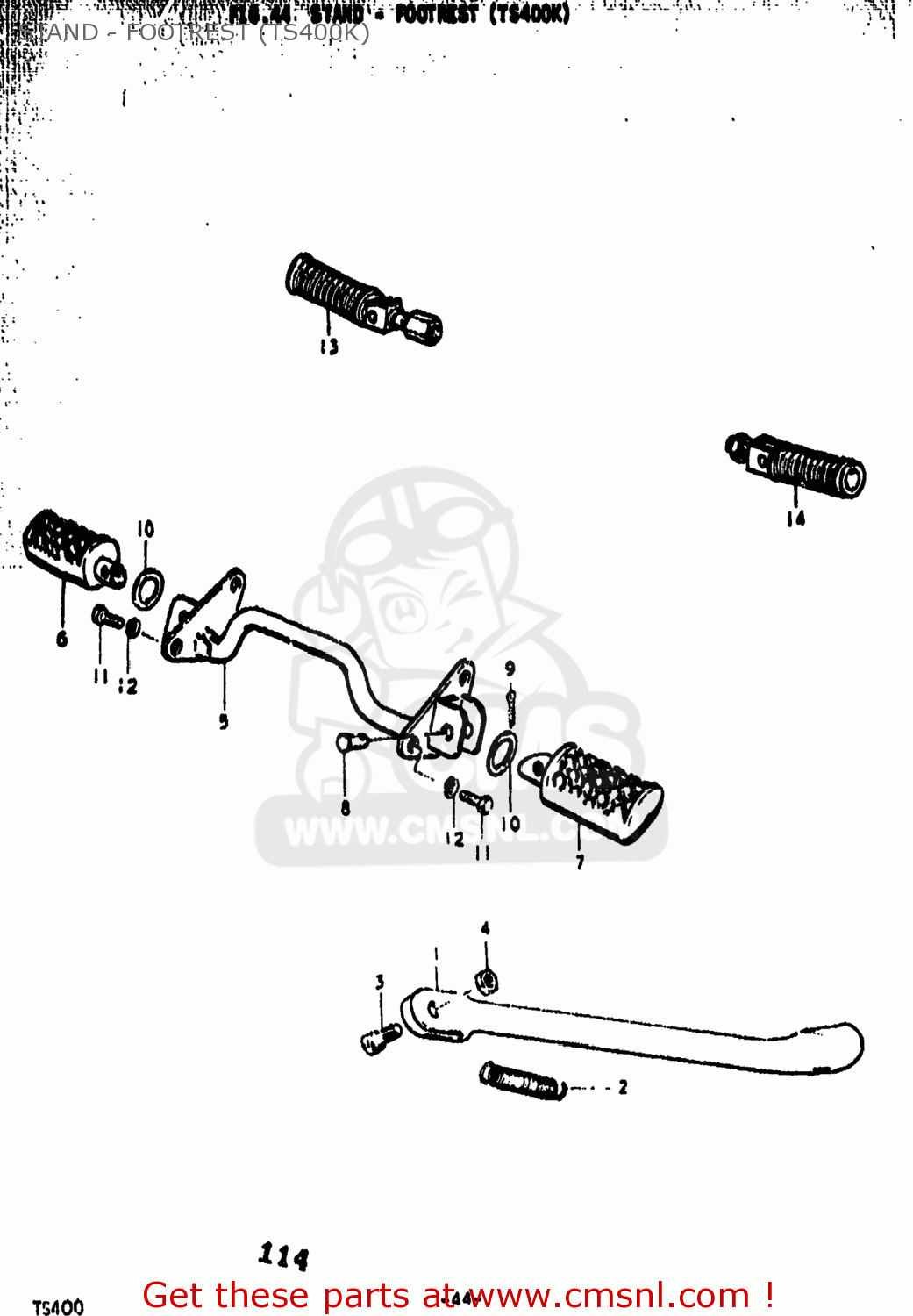

Stand - footrest (ts400k) diagram TS400 1974 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

4231016500
ref: 1
42310-41100

STAND,SIDE

€ 33.50

0944314005
ref: 2
09443-14017

SPRING

€ 6.50

0910010067
ref: 3

BOLT(10X30)

€ 3.50

0831231108
ref: 4
08310-00107

NUT

€ 2.50

4351032001
ref: 5

BAR,FRONT FOOTREST

€ 21.00

4355025000
ref: 6
43550-25301

RUBBER,FOOTREST,RIGHT

€ 34.50

4356025000
ref: 7
43560-25301

RUBBER,FOOTREST,LEFT

€ 34.50

0920008002
ref: 8

PIN

€ 2.00

0411120158
ref: 9
04111-2015A

PIN

€ 1.50

0916022003
ref: 10

SECOND GEAR INNER THRUST WASHER

€ 2.00

0112208208
ref: 11
01500-08207

BOLT

€ 3.00

0832131088
ref: 12
08321-01087

WASHER,LOCK,8.

€ 2.00

4360028000
ref: 13

FOOTREST ASSEMBLY,REAR

€ 21.00

4360003001
ref: 14
43600-09D00

FOOTREST ASSEMBLY,REAR

€ 21.00
