GEAR SHIFTING
TS400 1974 (L) USA (E03)

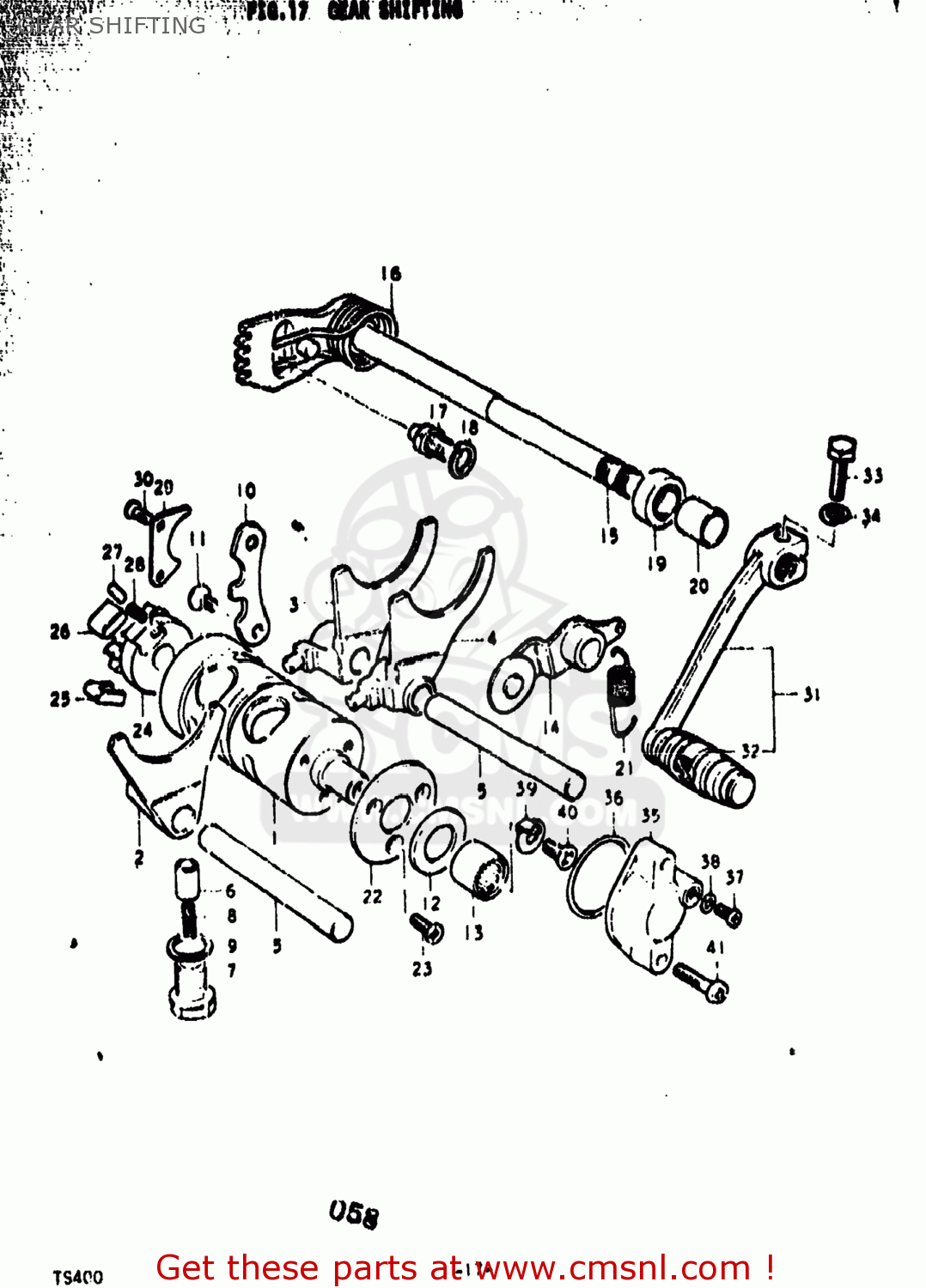

Gear shifting diagram TS400 1974 (L) USA (E03)
GEAR SHIFTING TS400 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2531016500
ref: 1
CAM,GEAR SHIFT
€ 0.00
2
2521116500
ref: 2
FORK,GEAR SHIFT NO.1
€ 17.00
3-1
2522116500
ref: 3-1
FORK,GEAR SHIFT NO.2
€ 29.50
3-2
2522116501
ref: 3-2
FORK,GEAR SHIFT NO.2
€ 29.50
4
2523116500
ref: 4
FORK,GEAR SHIFT NO.3
€ 37.00
5
2541116400
ref: 5
25411-48001
SHAFT,GEAR SHIFT FORK
€ 15.00
6
2535118000
ref: 6
25351-39300
STOPPER,GEAR SHIFTING
€ 5.00
7
2535211000
ref: 7
25352-11010
BOLT,GEAR SHAFT CAM STOPPER
€ 4.50
8-1
0944005010
ref: 8-1
09440-05018
SPRING
€ 14.00
8-2
0944005018
ref: 8-2
SPRING
€ 14.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10
2534111000
ref: 10
GUIDE,GEAR SHIFTING CABLE
€ 6.00
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
0821112253
ref: 12
WASHER
€ 1.50
13
0926312009
ref: 13
ROLLER BEARING (12X18X1
€ 12.50
14
2535016400
ref: 14
STOPPER,GEAR SHIFTING
€ 6.00
15-1
2551016500
ref: 15-1
SHAFT,GEAR SHIFT
€ 40.50
15-2
2551016501
ref: 15-2
SHAFT,GEAR SHIFT
€ 40.50
15-2
2551016501
ref: 15-2
SHAFT,GEAR SHIFT
€ 40.50
15-3
2551016502
ref: 15-3
25510-16X00
SHAFT,GEAR SHIFT
€ 40.50
16-1
0944426001
ref: 16-1
SPRING
€ 4.00
16-2
0944426012
ref: 16-2
09444-26013
SPRING
€ 3.50
17
2567101000
ref: 17
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0928512002
ref: 19
09285-12006
OIL SEAL
€ 7.00
20
0932013001
ref: 20
CUSHION
€ 6.00
21
0944309004
ref: 21
SPRING
€ 3.00
22
2538120000
ref: 22
25381-20001
PLATE,GEAR SHIFT CAM
€ 9.50
23
0212104127
ref: 23
02122-0412A
SCREW
€ 2.00
24-1
2532220001
ref: 24-1
RETAINER,GEAR SHIFT CAM
€ 10.50
24-2
2532211000
ref: 24-2
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
25
2532311000
ref: 25
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
26
2532411000
ref: 26
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
27
0926105003
ref: 27
PIN(5X8)
€ 1.50
28
0944004003
ref: 28
SPRING
€ 1.50
29
2533116500
ref: 29
LIFTER,GEAR SHIFT PAWL
€ 4.50
30
0212206128
ref: 30
02122-06127
SCREW
€ 3.00
31-1
2560016500
ref: 31-1
25600-16520
LEVER ASSEMBLY,GEAR SHIFTING
€ 26.00
31-2
2560016501
ref: 31-2
25600-16520
LEVER ASSEMBLY,GEAR SHIFTING
€ 26.00
32
2565216500
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 4.00
33
0111206208
ref: 33
01500-06207
BOLT
€ 2.00
34
0832121068
ref: 34
08321-01067
LOCK WASHER
€ 2.50
35
3772115002
ref: 35
BODY,GEAR SHIFT SWITCH
€ 13.00
36
0928028002
ref: 36
O RING(D:1.9,ID:27.7)
€ 7.50
37
0211103048
ref: 37
02112-03047
SCREW
€ 2.00
38
0832221038
ref: 38
08322-01037
WASHER
€ 2.00
39-1
3771105100
ref: 39-1
37711-05101
POINT,NEUTRAL INDICATOR SWITCH CON
€ 4.00
39-2
3771105101
ref: 39-2
CONTACT,GEAR SHIFT SWITCH
€ 4.00
40
0212206128
ref: 40
02122-06127
SCREW
€ 3.00
41
0211105207
ref: 41
02112-05207
SCREW
€ 3.00
