AIR CLEANER

TU250X 2009 (K9) USA (E03)

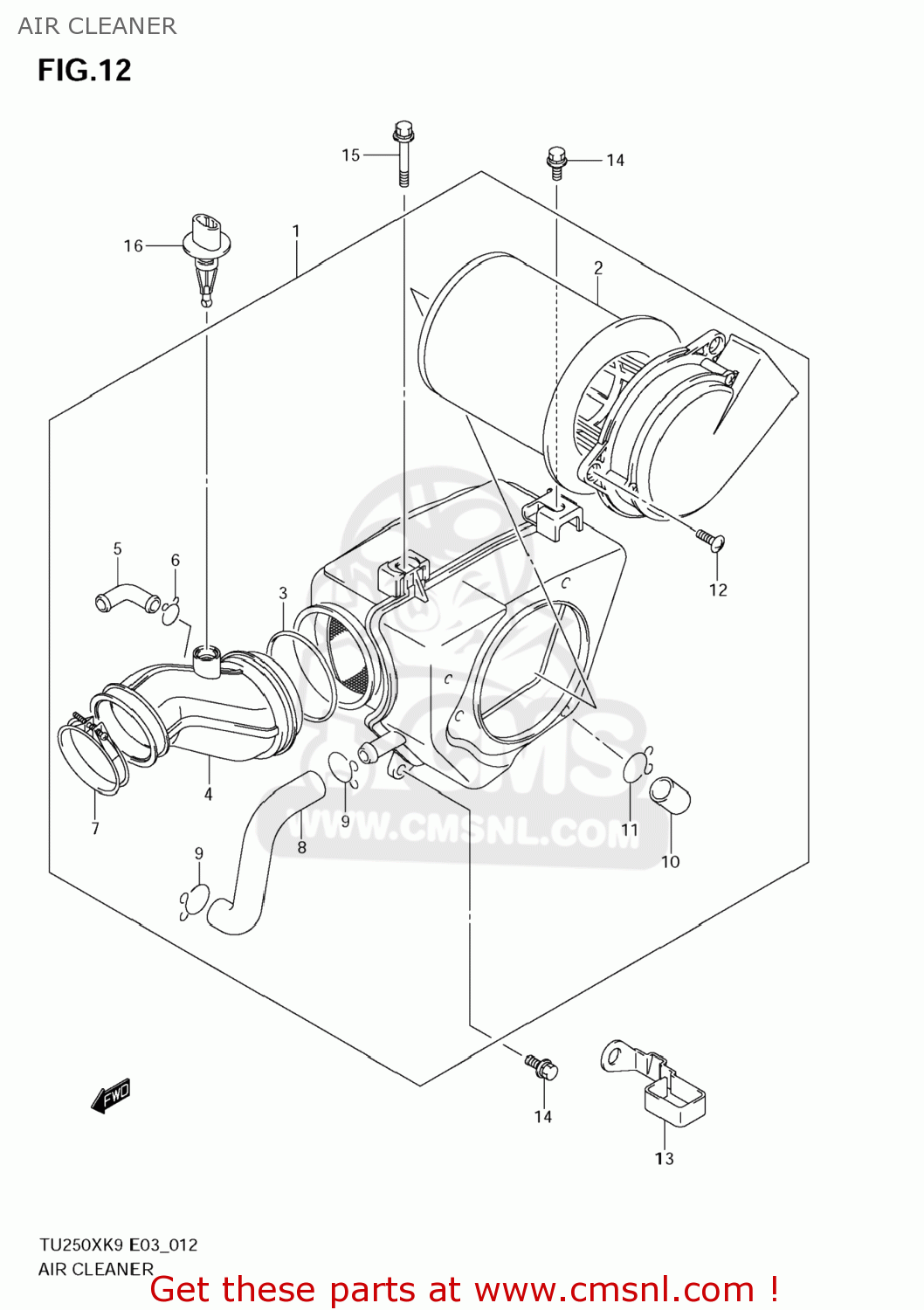

Air cleaner diagram TU250X 2009 (K9) USA (E03)

AIR CLEANER TU250X 2009 (K9) USA (E03)

AIR CLEANER TU250X 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370026GA1
ref: 1

CLEANER ASSY,AI

€ 169.50

2

1378038301
ref: 2

FILTER

€ 21.50

3

1382638300
ref: 3

CLAMP,AIR CLEANER SIDE

€ 3.00

4

1388126GA0
ref: 4

TUBE,OUTLET

€ 35.00

5

1385814D20
ref: 5

JOINT

€ 6.00

6

0940114101
ref: 6

CLIP

€ 2.00

7

1382626GA0
ref: 7

CLAMP

€ 10.00

8

1385338300
ref: 8

TUBE,BREATHER

€ 8.00

9

0940116401
ref: 9

CLIP

€ 3.00

10

1385941B10
ref: 10

PLUG

€ 5.50

11

0940114101
ref: 11

CLIP

€ 2.00

12

021420512A
ref: 12

SCREW

€ 1.50

13

1382738300
ref: 13

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

14

015800616A
ref: 14

BOLT

€ 2.50

15

015800640A
ref: 15

BOLT

€ 0.00

16

1365052G00
ref: 16

SENSOR,INLET AIR TEMP

€ 59.50

all assemblies
