FUEL TANK

TU250X 2009 (K9) USA (E03)

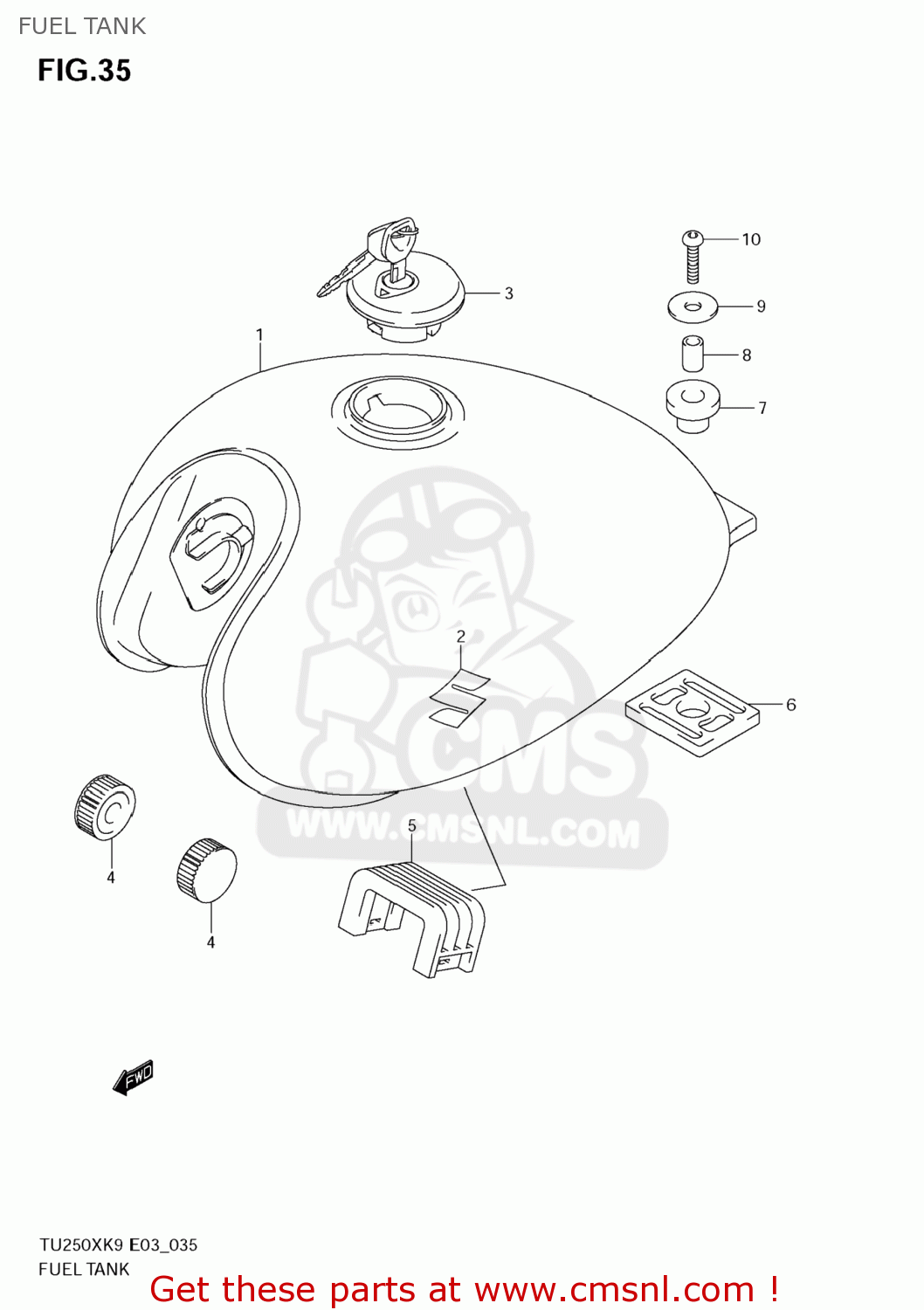

Fuel tank diagram TU250X 2009 (K9) USA (E03)

FUEL TANK TU250X 2009 (K9) USA (E03)

FUEL TANK TU250X 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4410026G40YHL
ref: 1

TANK ASSY,FUEL(RED)

€ 675.00

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3

4420024840
ref: 3

CAP SET,FUEL TANK

€ 143.00

4

0932910016
ref: 4

CUSHION

€ 3.00

5

4454138200
ref: 5

CUSHION,TANK UPR FR

€ 6.00

6

4454241F00
ref: 6

CUSHION,FUEL TANK RR LWR

€ 8.00

7

4454141F01
ref: 7

CUSHION,FUEL TANK RR UPR

€ 6.50

8

0918008057
ref: 8

SPACER (8.2X12.5X23.5)

€ 2.00

9

0916008146
ref: 9

WASHER(8.5X33X1.5)

€ 3.00

10

071200835B
ref: 10

BOLT

€ 4.00
