REAR FRAME

TU250X 2009 (K9) USA (E03)

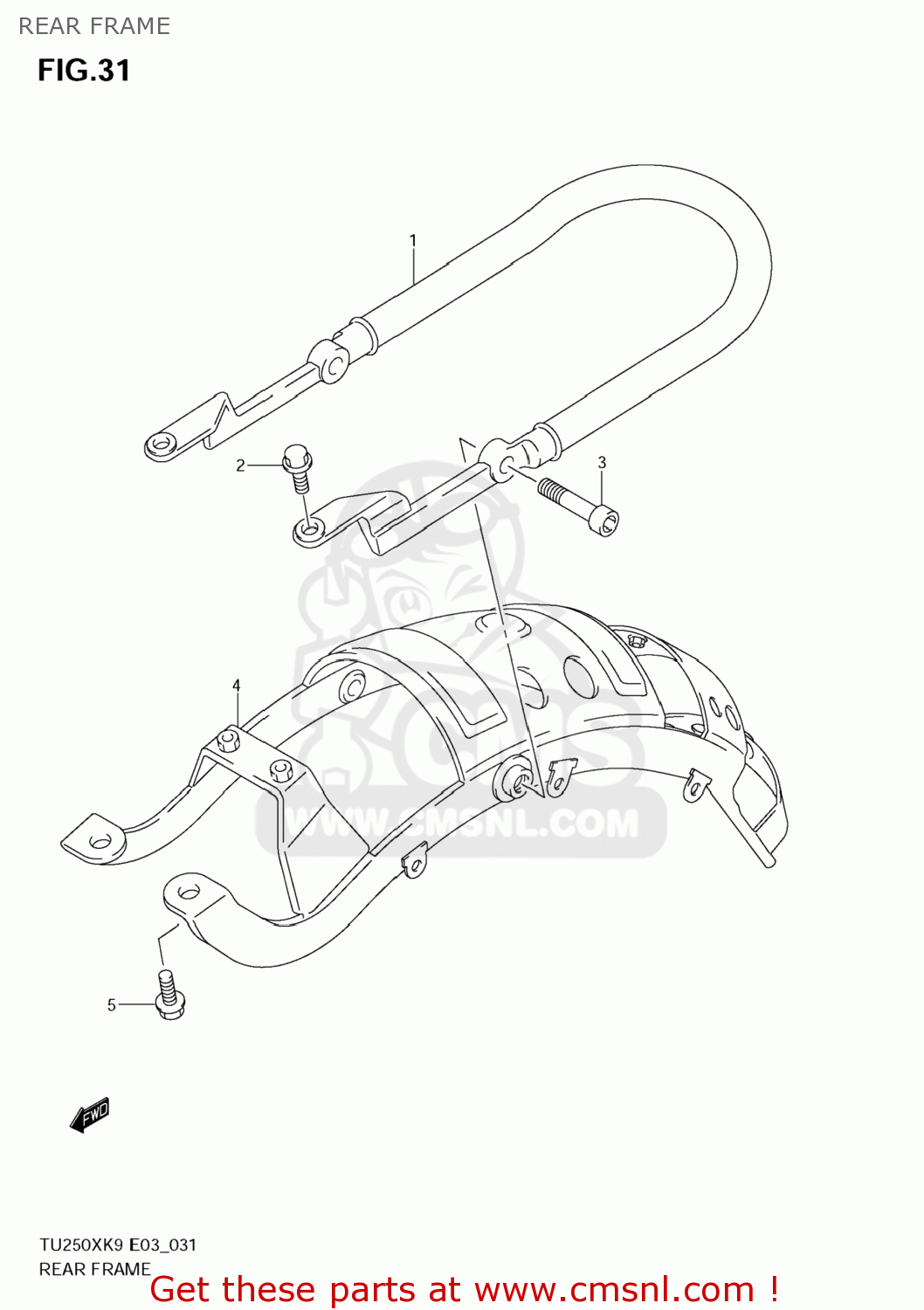

Rear frame diagram TU250X 2009 (K9) USA (E03)

REAR FRAME TU250X 2009 (K9) USA (E03)

REAR FRAME TU250X 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4120026G00YD8
ref: 1

FRAME,RR(SILVER)

€ 120.50

2

0910308288
ref: 2

BOLT(8X25)

€ 2.50

3

0910612004
ref: 3

BOLT(12X45)

€ 6.00

4

4158026G00
ref: 4

BRACE,RR FRAME

€ 173.50

5

015500820B
ref: 5

BOLT

€ 3.00

all assemblies
