FRAME COVER

TU250X 2009 (K9) USA (E03)

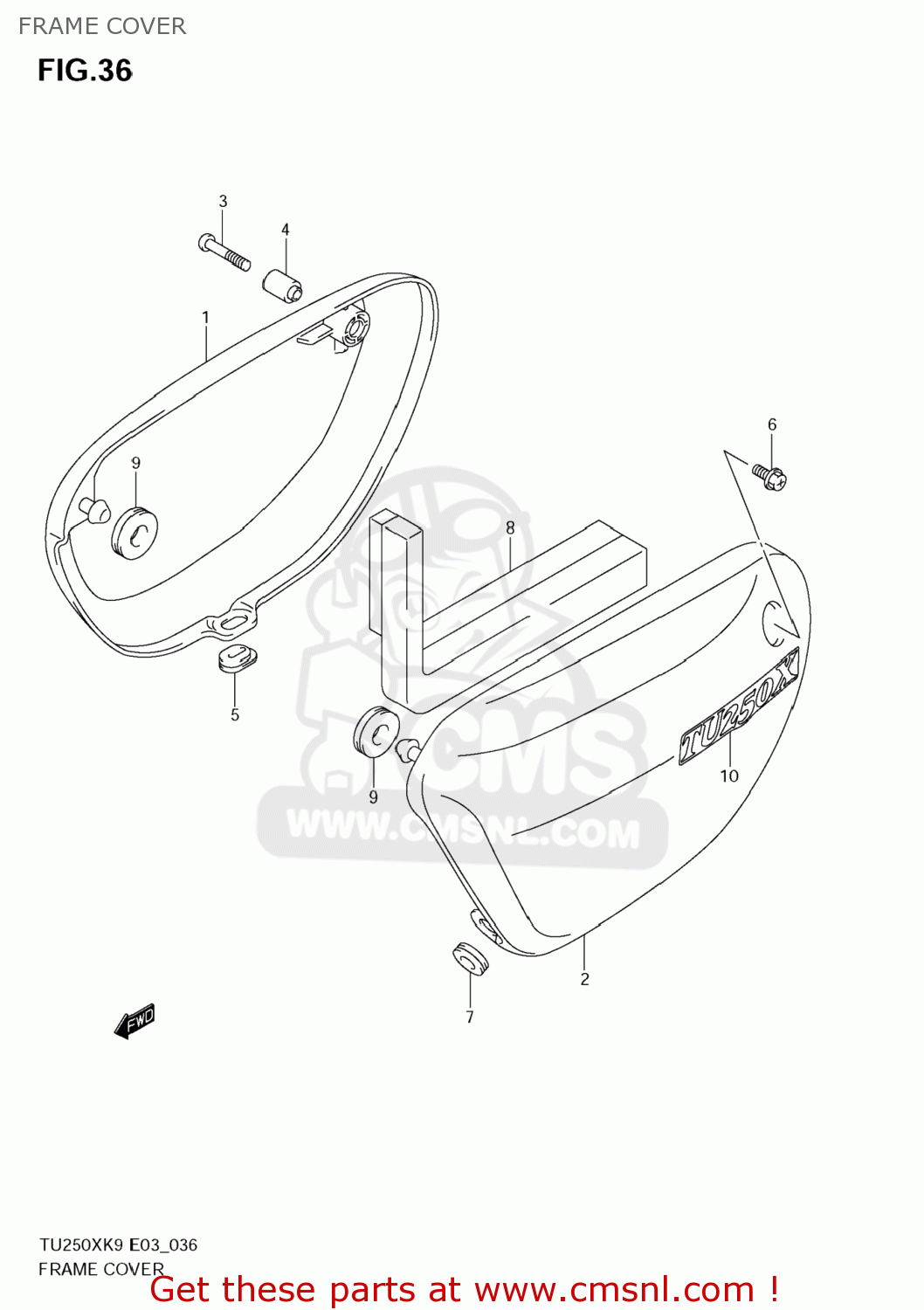

Frame cover diagram TU250X 2009 (K9) USA (E03)

FRAME COVER TU250X 2009 (K9) USA (E03)

FRAME COVER TU250X 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711126G10YHL
ref: 1

COVER,FRAME,R(RED)

€ 57.50

2

4721126G11YHL
ref: 2

COVER,FRAME,L(RED)

€ 57.50

3

0912306028
ref: 3

SCREW(6X35.5)

€ 2.00

4

0918006340
ref: 4

SPACER(6.2X9X23.5)

€ 6.50

5

0932003004
ref: 5

CUSHION

€ 2.00

6

0911106095
ref: 6

BOLT(6X16.5)

€ 1.50

7

0932008013
ref: 7

CUSHION

€ 4.00

8

4716026G00
ref: 8

CUSHION,FRAME COVER

€ 75.50

9

0932008018
ref: 9

CUSHION

€ 4.00

10

6813126G50YPA
ref: 10

EMBLEM,FRAME COVER

€ 8.50
