CLUTCH MASTER CYLINDER
VL1500 INTRUDER 1998 (W) USA (E03)

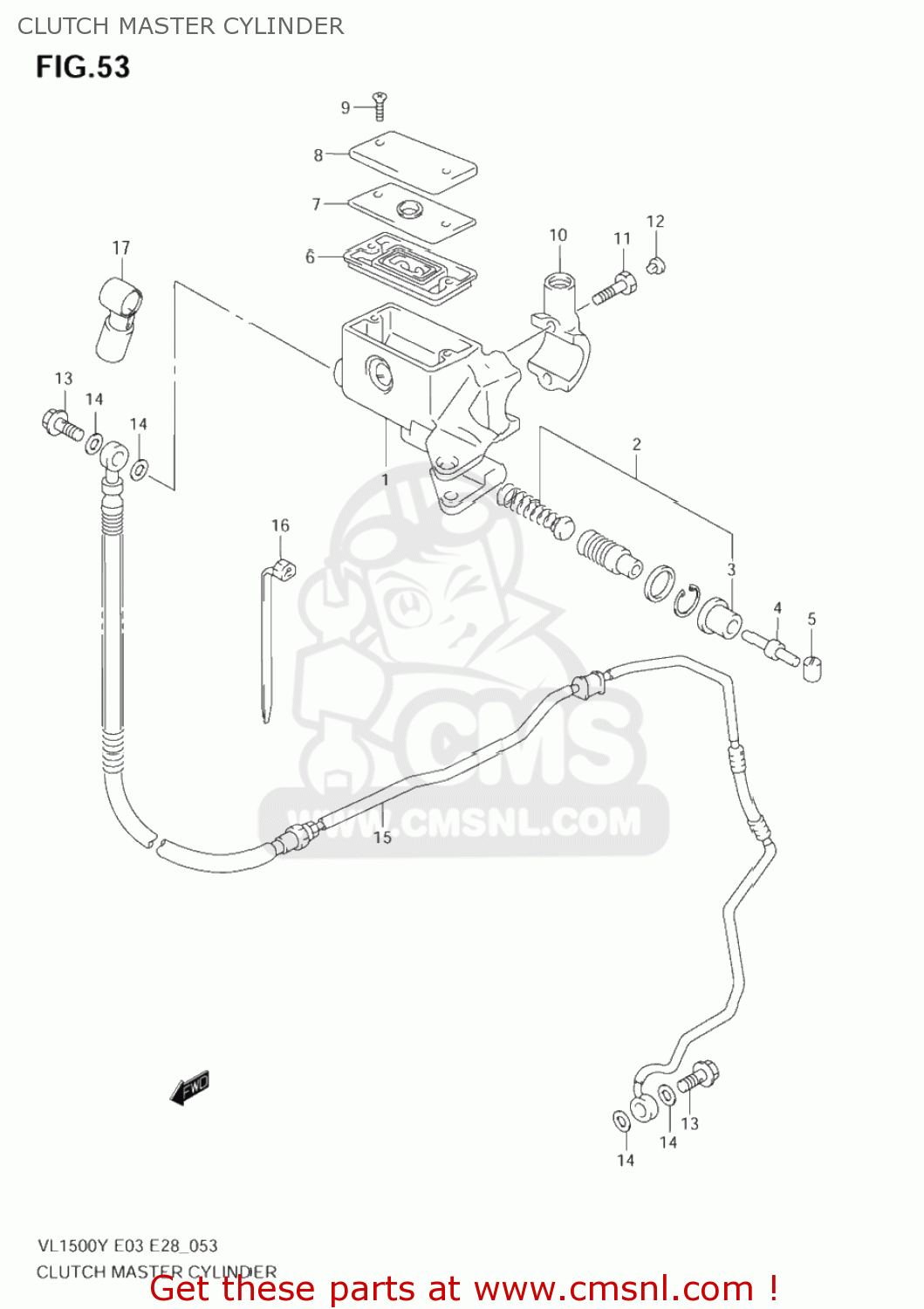

Clutch master cylinder diagram VL1500 INTRUDER 1998 (W) USA (E03)
CLUTCH MASTER CYLINDER VL1500 INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980010F00
ref: 1
CYLINDER ASSY,CLUTCH MASTER
€ 429.00
2
5980008810
ref: 2
PISTON & CUP SET
€ 36.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5987110F00
ref: 4
ROD,PUSH
€ 8.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
€ 8.00
8
5966910F00
ref: 8
CAP
€ 59.50
9
0212204127
ref: 9
SCREW
€ 2.00
10
5967138A00
ref: 10
HOLDER
€ 37.50
11
0713006207
ref: 11
BOLT
€ 3.50
12
0925005008
ref: 12
CAP(OD:10)
€ 5.00
13
0936010042
ref: 13
09360-10062
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15-1
5990010F00
ref: 15-1
HOSE ASSY,CLUTCH
€ 283.00
15-2
5990010F10
ref: 15-2
HOSE ASSY,CLUTCH
€ 256.00
16
0940725401
ref: 16
CLAMP(L:235)
€ 4.00
17
5971210F00
ref: 17
BOOT,CLUTCH MASTER CYLINDER
€ 6.00
