REAR CALIPER (MODEL K2/K3/K4)

VL1500 INTRUDER 1998 (W) USA (E03)

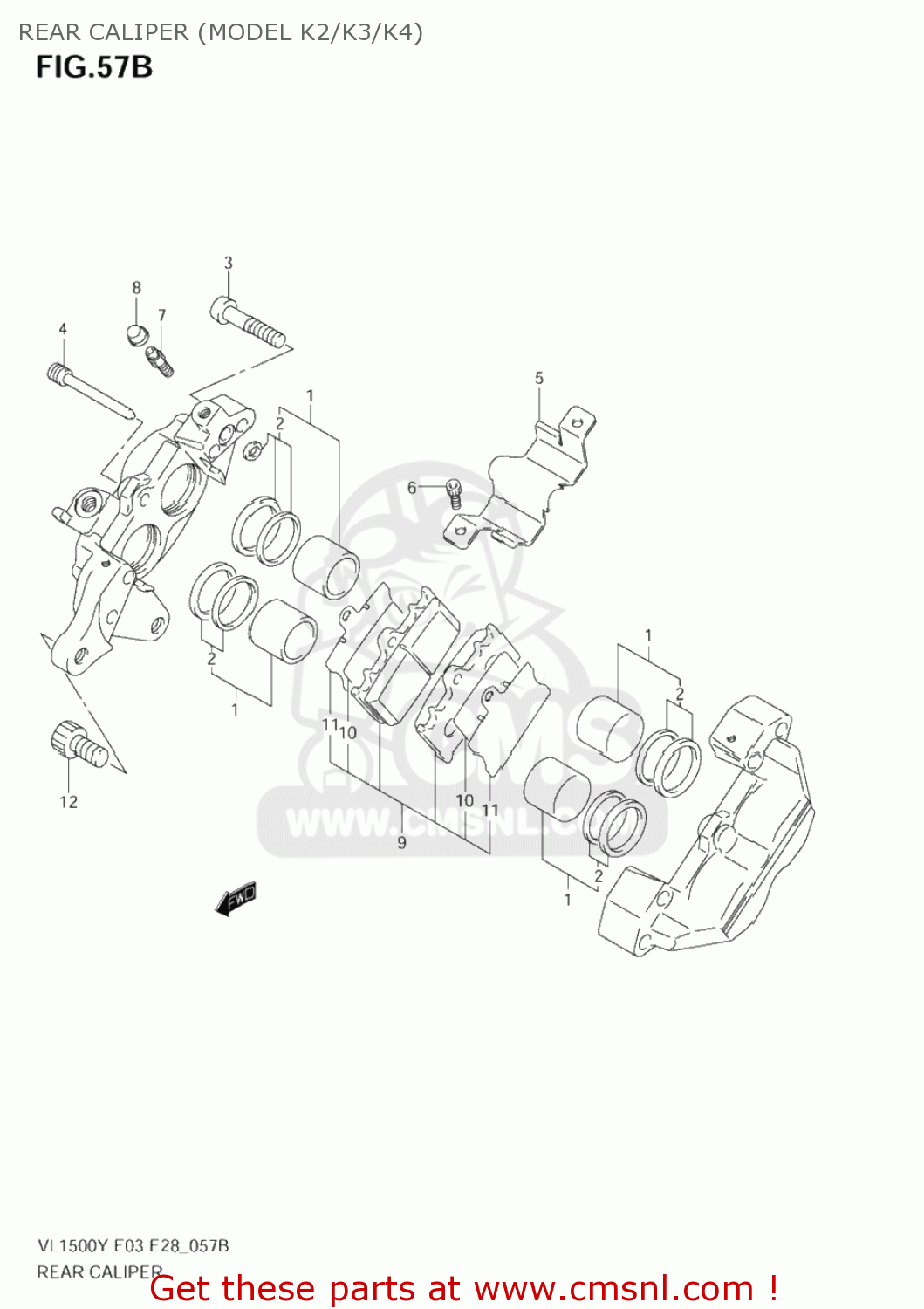

Rear caliper (model k2/k3/k4) diagram VL1500 INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910010F10999
ref:

CALIPER ASSY,RR

€ 791.00

6910010810
ref: 1

PISTON SET

€ 206.50

5930035840
ref: 2
59300-18820

SEAL SET,PISTO

€ 56.00

5914533E10
ref: 3
59145-33E00

BOLT

€ 9.00

5914140F00
ref: 4

PIN,PAD

€ 31.50

6915110F10
ref: 5

COVER

€ 16.00

5915322D00
ref: 6

SCREW

€ 4.50

5912118410
ref: 7

BLEEDER

€ 8.00

5515666310
ref: 8

CAP,BLEEDER PLUG

€ 6.00

6910010850
ref: 9

PAD & SHIM SET (NAS)

€ 79.00

6917110F10
ref: 10

SHIM,PAD

€ 15.50

6917210F10
ref: 11

COVER,SHIM

€ 17.50

0713010203
ref: 12
07130-1020B

BOLT

€ 3.50
