SPEEDOMETER (MODEL W)
VL1500 INTRUDER 1998 (W) USA (E03)

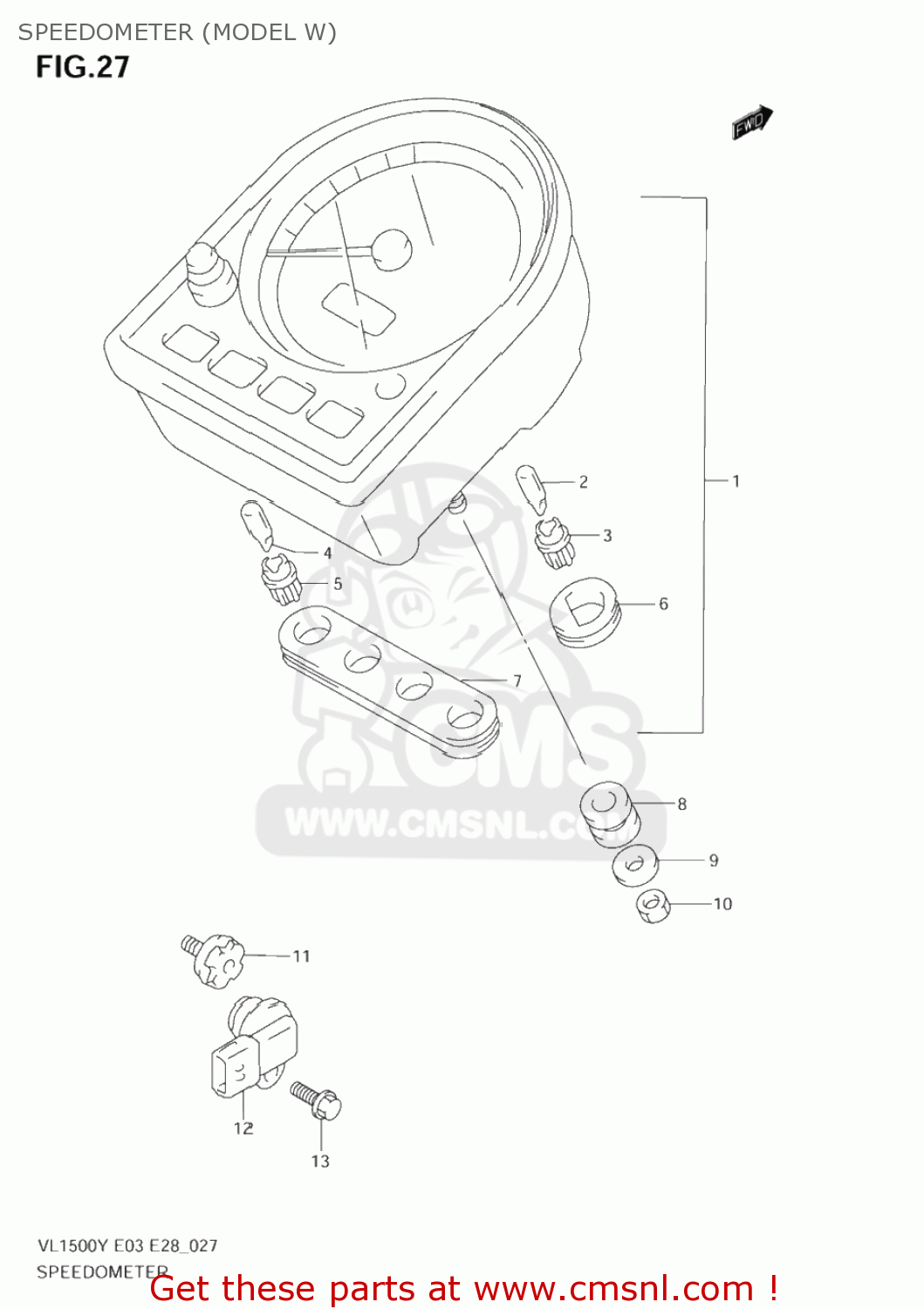

Speedometer (model w) diagram VL1500 INTRUDER 1998 (W) USA (E03)
SPEEDOMETER (MODEL W) VL1500 INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3410010F20
ref: 1-1
SPEEDOMETER ASSEMBLY
€ 828.00
1-2
3410010F10
ref: 1-2
SPEEDOMETER (KILO)
€ 817.50
2
0947112189
ref: 2
BULB(14V,0.84W)
€ 4.50
3
3417271E70
ref: 3
SOCKET,BULB
€ 7.50
4
0947112100
ref: 4
BULB(12V1.7W,WB372,T7)
€ 2.00
5
3417319D00
ref: 5
SOCKET
€ 17.00
6
3419802F00
ref: 6
BLIND,CAP
€ 12.00
7
3419810F00
ref: 7
BLIND,CAP
€ 10.00
8
3499645720
ref: 8
34189-32B00
CUSHION,METER
€ 5.00
9
0916005037
ref: 9
WASHER(5.5X16X1.2)
€ 1.50
10
0831000053
ref: 10
08310-0005A
NUT
€ 2.50
11
3498110F00
ref: 11
ROTOR,SPEED
€ 22.50
12
3499010F00
ref: 12
SENSOR,SPEED
€ 158.00
13
0910606073
ref: 13
BOLT(6X16)
€ 2.50
