REAR WHEEL (MODEL Y/K1)

VL1500 INTRUDER 1998 (W) USA (E03)

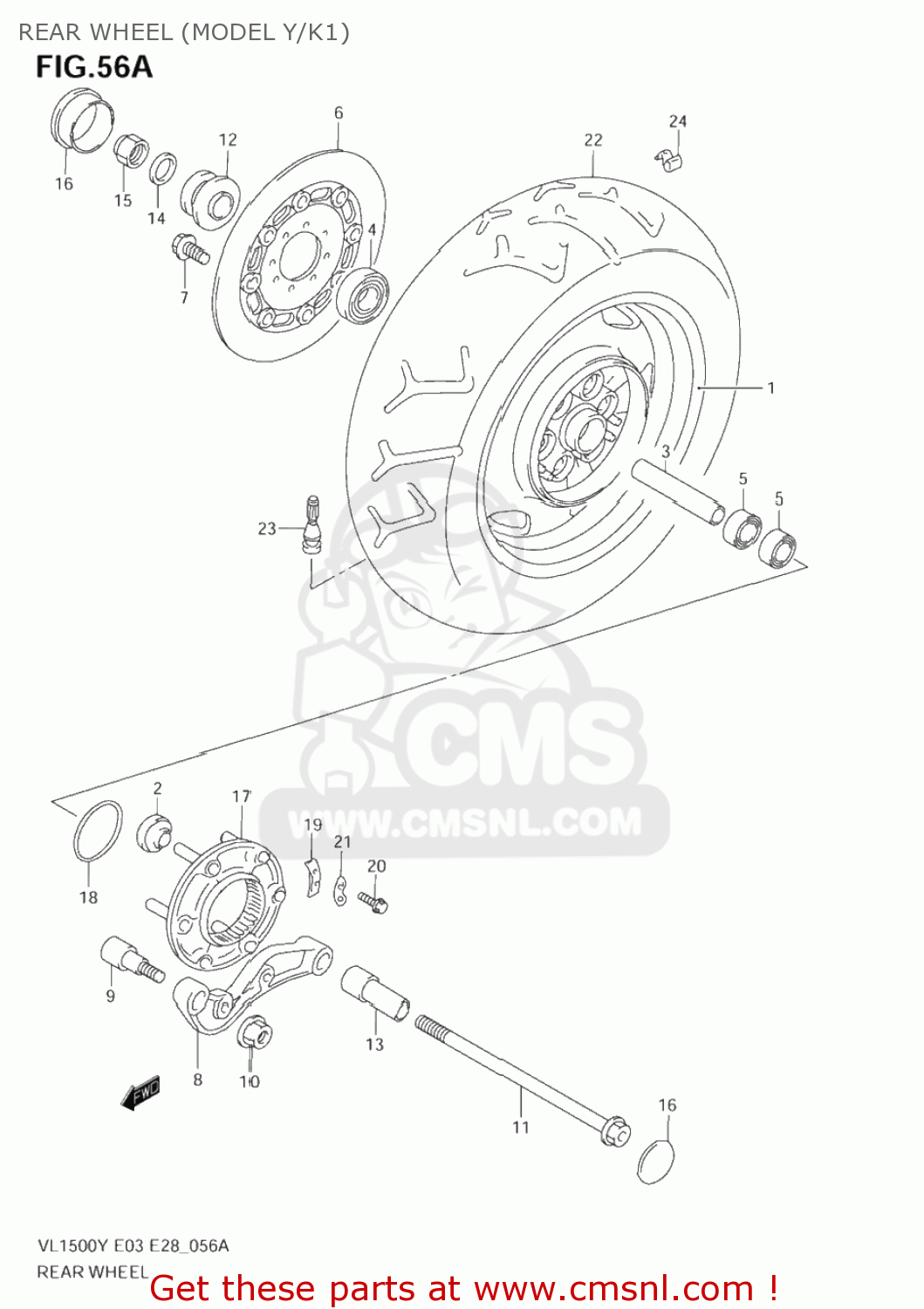

Rear wheel (model y/k1) diagram VL1500 INTRUDER 1998 (W) USA (E03)

REAR WHEEL (MODEL Y/K1) VL1500 INTRUDER 1998 (W) USA (E03)

REAR WHEEL (MODEL Y/K1) VL1500 INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

641001082012R
ref: 1

WHEEL SET,RR(15M/CXMT5.00)

€ 1,129.50

1

641001082012R
ref: 1

WHEEL SET,RR(15M/CXMT5.00)

€ 1,129.50

2

0931912019
ref: 2

BUSH

€ 10.50

3

0918020112
ref: 3

SPACER(20.8X27.2X124)

€ 21.00

4

0813362047
ref: 4

BEARING WHEEL REAR(20X47X14)

€ 22.50

5

0926220042
ref: 5

BEARING(20X47X14)

€ 21.00

6

6921010F10
ref: 6

DISC,RR BRAKE

€ 255.50

7

0910608125
ref: 7
09106-08148

BOLT 8X33

€ 6.00

8

6972110F00
ref: 8
69721-10F01

BRACKET,REAR CALIPER

€ 107.00

9

6424110F00
ref: 9

PIN,CALIPER BRACKET

€ 25.50

10

0831931123
ref: 10
08319-3112B

NUT

€ 3.00

11

6471110F00
ref: 11

AXLE,RR

€ 108.00

12

6474010F00
ref: 12

SPACER,RR AXLE,R

€ 25.00

13

6477210F00
ref: 13

SPACER,RR AXLE,L

€ 23.00

14

0832201183
ref: 14
08322-0118B

WASHER

€ 2.50

15

0915918004
ref: 15

NUT

€ 23.00

16

6479238B00
ref: 16

CAP,RR AXLE,L

€ 80.50

17

6468024A00
ref: 17

JOINT ASSY,RR HUB DRIVEN

€ 260.50

18

0928065003
ref: 18

O RING(D:2.1,ID:65)

€ 2.50

19

6467745110
ref: 19

WASHER,THRUST(T:1.6)

€ 2.50

20

0911906049
ref: 20

BOLT(6X16)

€ 1.50

21

0916906030
ref: 21

WASHER

€ 2.00

22

6511010F00
ref: 22

TIRE,RR(180/70-15M/C 76H)

€ 593.00

22

6511010F00
ref: 22

TIRE,RR(180/70-15M/C 76H)

€ 593.00

23

4313024A00
ref: 23

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

24-1

4323282000
ref: 24-1
43222-73H10

WEIGHT,WHEEL BALANCE 10G

€ 4.00

24-2

4323482000
ref: 24-2
43224-73H10

WEIGHT,WHEEL BALANCE 20G

€ 5.00

24-3

4323682000
ref: 24-3
43226-73H10

WEIGHT,BAL. 30

€ 6.00
