FRONT DAMPER (MODEL W/X/Y)

VL1500 INTRUDER 1999 (X) USA (E03)

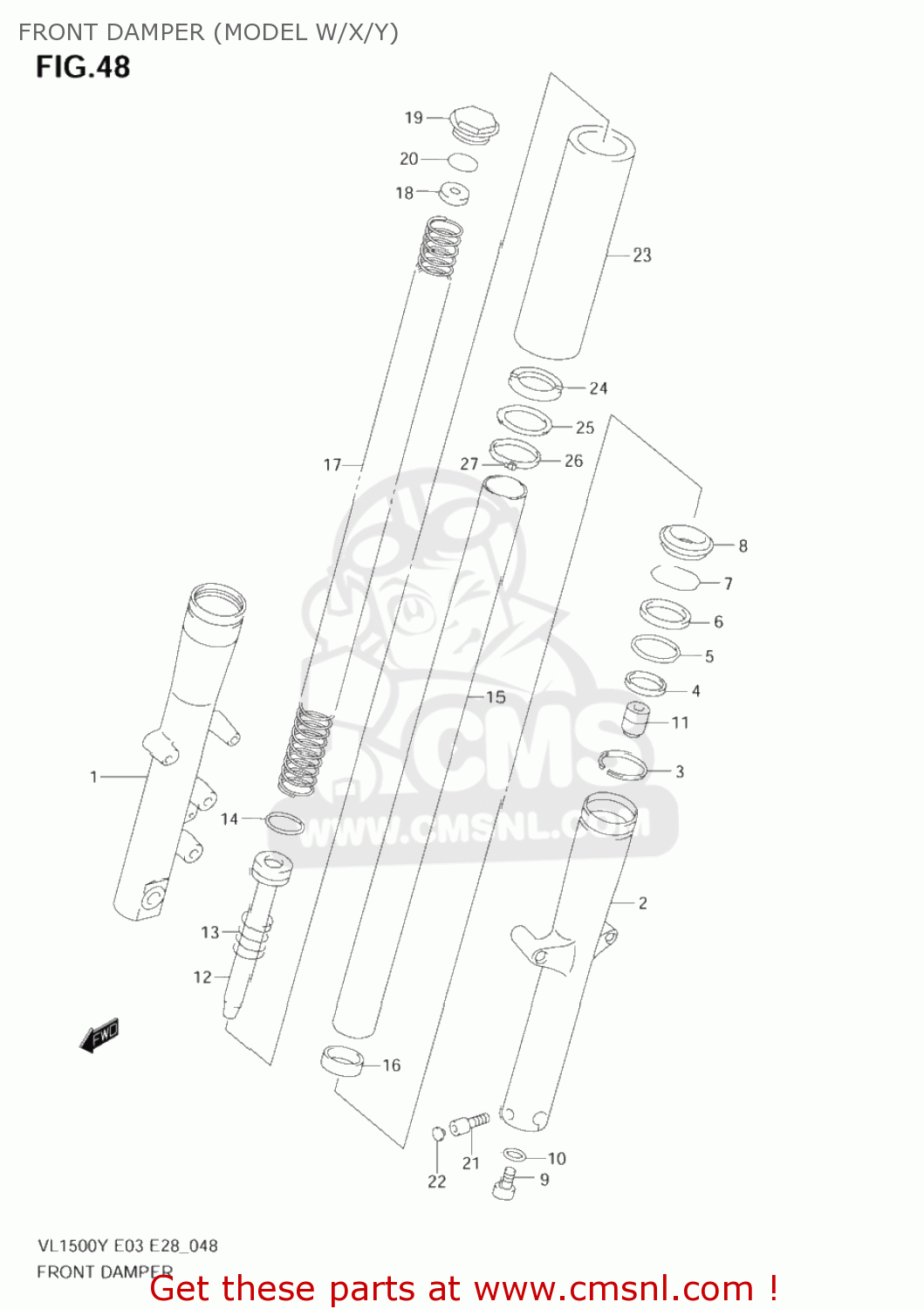

Front damper (model w/x/y) diagram VL1500 INTRUDER 1999 (X) USA (E03)

FRONT DAMPER (MODEL W/X/Y) VL1500 INTRUDER 1999 (X) USA (E03)

FRONT DAMPER (MODEL W/X/Y) VL1500 INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110310F00
ref:
51103-10F20

DAMPER ASSEMBLY,FRONT FORK

€ 599.50



5110410F00
ref:
51104-10F20

DAMPER ASSEMBLY,FRONT FORK

€ 771.50



5110310F20
ref:

DAMPER ASSY,FR FORK,R

€ 599.50



5110410F20
ref:

DAMPER ASSY,FR FORK,L

€ 771.50

1

5113110F00
ref: 1

TUBE,OUTER,R

€ 444.50

2

5114110F00
ref: 2

TUBE,OUTER,L

€ 444.50

3

5146910F00
ref: 3

GUIDE,CASE

€ 16.00

4

5115211D60
ref: 4

BUSH,GUIDE

€ 12.00

5

5116838B00
ref: 5

SPACER,SEAL

€ 5.00

6

5115308D00
ref: 6

SEAL,OIL

€ 15.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157147D50
ref: 8

SEAL,DUST

€ 18.00

9

5114742AA0
ref: 9
51147-06F10

BOLT,CENTER (8X18)

€ 3.00

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5119510F00
ref: 11

PIECE,OIL LOCK

€ 18.50

12

5114610F00
ref: 12

SEAT,PIPE

€ 71.50

13

5117710F00
ref: 13

SPRING,REBOUND

€ 7.00

14

5119647D00
ref: 14

RING,PISTON

€ 6.00

15-1

5111010F00
ref: 15-1
51110-10F20

TUBE,INNER

€ 465.50

15-2

5111010F20
ref: 15-2

TUBE,INNER

€ 465.50

16

5112110F00
ref: 16
51121-42E00

BUSHING,SLIDE

€ 15.50

17

5117110F00
ref: 17

SPRING,FR

€ 117.00

18

5135310F00
ref: 18

BOLT,FORK INNER

€ 17.50

19

5135138B00
ref: 19

BOLT

€ 81.00

20

5111738B00
ref: 20

O RING

€ 4.00

21

5116610F00
ref: 21

BOLT

€ 8.00

22

0925006009
ref: 22

CAP(OD:14.5)

€ 3.50

23

5146410F00
ref: 23

CASE,UNDER

€ 110.00

24

5146810F00
ref: 24

SEAT,RUBBER

€ 13.50

25

5146710F00
ref: 25

WASHER

€ 8.00

26

5146510F00
ref: 26

SPACER

€ 33.50

27

5146610F00
ref: 27

BOLT

€ 4.50
