MUFFLER
VL1500 INTRUDER 1999 (X) USA (E03)

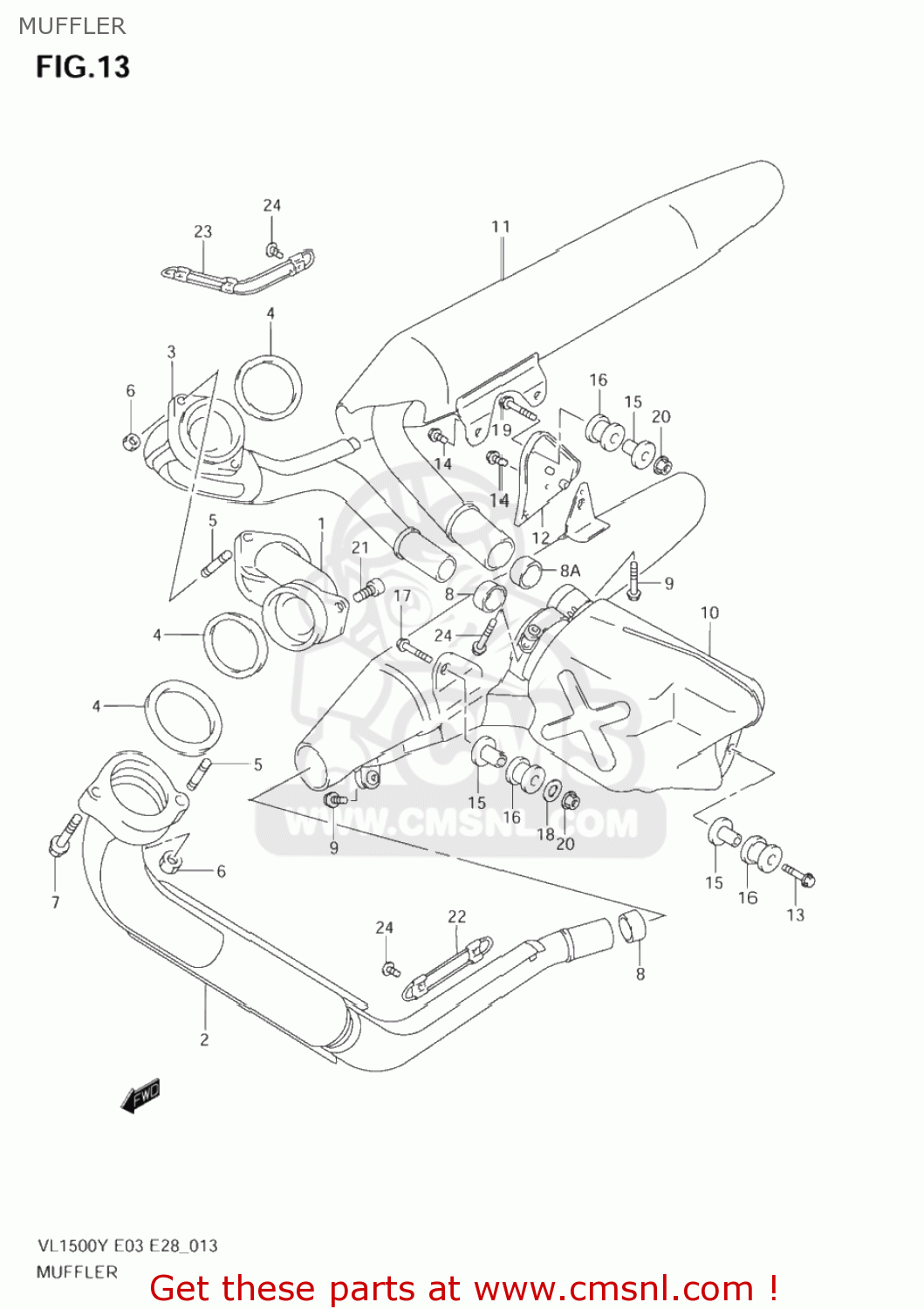

Muffler diagram VL1500 INTRUDER 1999 (X) USA (E03)
MUFFLER VL1500 INTRUDER 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1411110F01
ref: 1
MANIFOLD,EXHAUST RR
€ 176.00
2-1
1415010F00
ref: 2-1
14150-10FA0
PIPE COMP,EXHAUST,RIGHT
€ 708.50
2-2
1415010F20
ref: 2-2
14150-10FA0
PIPE COMP,EXHAUST,RIGHT
€ 708.50
3
1416010F00
ref: 3
PIPE,EXHAUST,L
€ 654.50
4-1
1418145C00
ref: 4-1
GASKET,EXHAUST PIPE (NAS)
€ 6.50
4-2
1418110F00
ref: 4-2
GASKET,EXHAUST PIPE (NAS)
€ 11.50
5
0910808142
ref: 5
BOLT,STUD
€ 3.00
6
0831320087
ref: 6
NUT
€ 2.50
7
0910408026
ref: 7
BOLT(8X35)
€ 4.00
8
1477113E00
ref: 8
CONNECTOR,MUFFLER
€ 12.00
8A-1
1477114D00
ref: 8A-1
CONNECTOR,MUFFLER JOINT
€ 19.50
8A-2
1477113E00
ref: 8A-2
CONNECTOR,MUFFLER
€ 12.00
9
0910608137
ref: 9
BOLT(8X33)
€ 5.50
10-1
1430510F20H01
ref: 10-1
14305-10F50-H01
MUFFLER COMP,RIGHT
€ 534.00
10-2
1430510F50H01
ref: 10-2
MUFFLER,R
€ 534.00
11-1
1434010F20H01
ref: 11-1
14340-10F50-H01
BODY COMP,MUFFLER
€ 349.00
11-2
1434010F50H01
ref: 11-2
BODY,MUFFLER,L
€ 349.00
12
1477010F00
ref: 12
BRACKET,MUFFLER SUPPORT
€ 19.00
13
0911808152
ref: 13
09118-08152-A05
BOLT 8X45
€ 5.00
14
0910308069
ref: 14
BOLT(8X14)
€ 7.00
15
0918008156
ref: 15
SPACER(8.6X12X27.1)
€ 6.50
16
0932012049
ref: 16
CUSHION
€ 9.00
17
0155008453
ref: 17
01550-0845A
BOLT
€ 3.00
18
0916008140
ref: 18
09160-08146
WASHER (8.5X33X1.6)
€ 3.00
19
0155008403
ref: 19
01550-0840A
BOLT
€ 3.50
20
0836125088
ref: 20
08361-2508A
NUT
€ 2.50
21
0713008253
ref: 21
07130-0825B
BOLT
€ 3.50
22-1
1478010F00
ref: 22-1
14780-10F10
GUARD,EXHAUST,RIGHT
€ 38.50
22-2
1478010F10
ref: 22-2
GUARD,EXH,R
€ 38.50
23-1
1479010F00
ref: 23-1
14790-10F10
GUARD,EXHAUST,LEFT
€ 45.50
23-2
1479010F10
ref: 23-2
GUARD,EXH,L
€ 45.50
24
0913906078
ref: 24
SCREW(6X10)
€ 3.00
