HANDLEBAR

VL1500 INTRUDER 1999 (X) USA (E03)

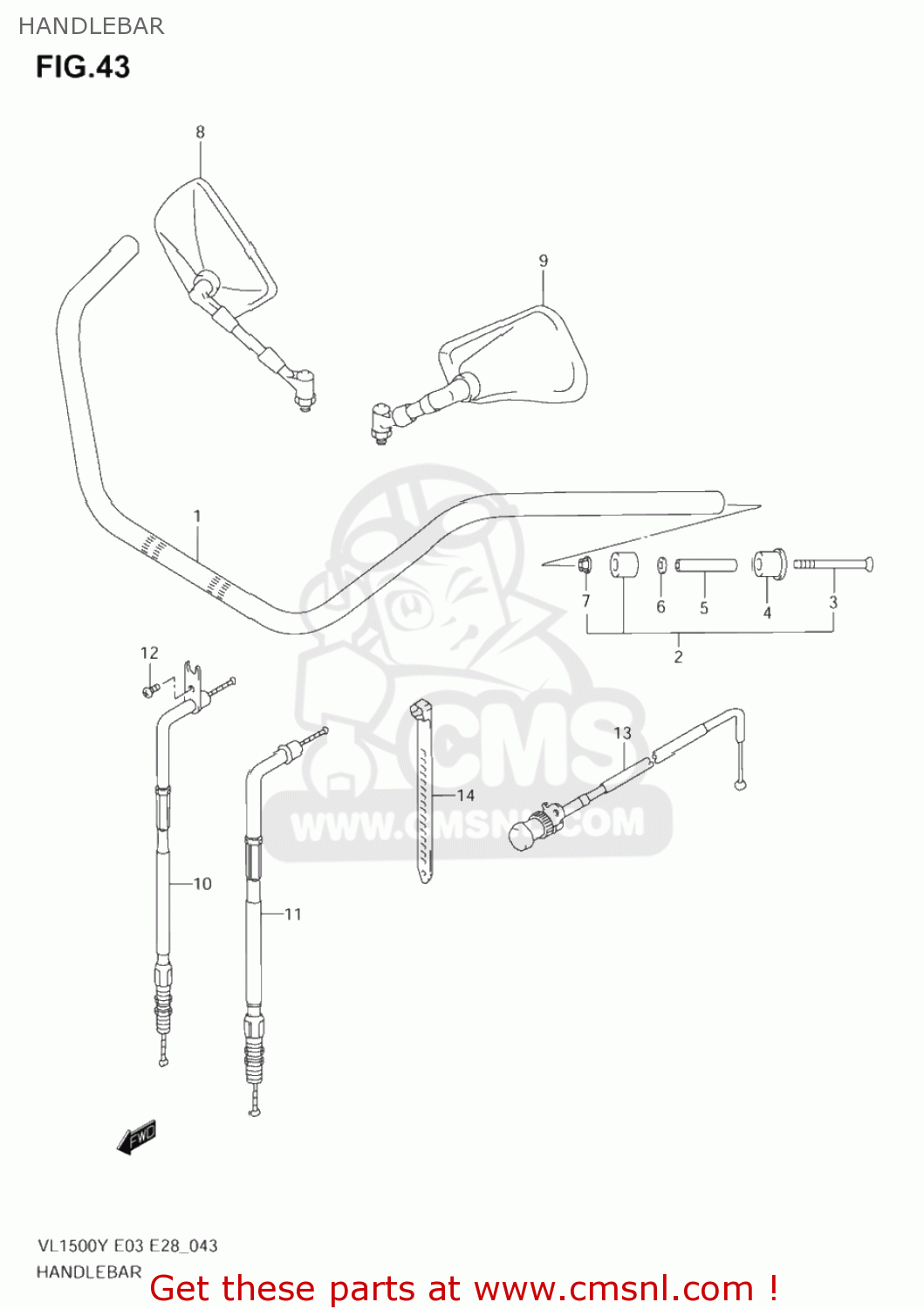

Handlebar diagram VL1500 INTRUDER 1999 (X) USA (E03)

HANDLEBAR VL1500 INTRUDER 1999 (X) USA (E03)

HANDLEBAR VL1500 INTRUDER 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611110F00
ref: 1

HANDLEBAR

€ 331.00

2-1

5620010860
ref: 2-1
56200-10861

BALANCER SET,HANDLEBAR

€ 77.00

2-2

5620010861
ref: 2-2

BALANCER SET,HANDLEBAR

€ 77.00

3

0912706017
ref: 3

SCREW(6X127)

€ 2.50

4

5627226D01
ref: 4

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5-1

5627609D00
ref: 5-1
56276-09D01

SPACER,EXPANDER

€ 6.00

5-2

5627609D01
ref: 5-2

SPACER,EXPANDER

€ 6.00

6-1

0916006013
ref: 6-1
09160-06121

WASHER (6.5X18X2)

€ 10.50

6-2

0916006121
ref: 6-2

WASHER(6.5X18X2)

€ 10.50

7

0915906024
ref: 7

NUT

€ 2.00

8-1

5650003F10
ref: 8-1
56500-03FB0

MIRROR ASSEMBLY,REAR VIEW

€ 393.50

8-2

5650041F00
ref: 8-2
56500-41F01

MIRROR ASSY,RE

€ 60.50

9-1

5660003F10
ref: 9-1
56600-03FB0

MIRROR ASSEMBLY,REAR VIEW

€ 305.50

9-2

5660041F00
ref: 9-2
56600-41F01

MIRROR ASSY,RE

€ 60.50

10

5830010F00
ref: 10
58300-10F0V

CABLE ASSEMBLY,THROTTLE NO

€ 51.00

11

5830010F10
ref: 11
58300-10F1V

CABLE ASSEMBLY,THROTTLE NO

€ 51.00

12

0214205087
ref: 12

SCREW

€ 2.00

13

5840010F00
ref: 13

CABLE ASSY,STARTER

€ 35.00

14

0940714403
ref: 14

CLAMP(L:125)

€ 2.50
