CLUTCH MASTER CYLINDER

VL1500B INTRUDER 2002 (K2) USA (E03)

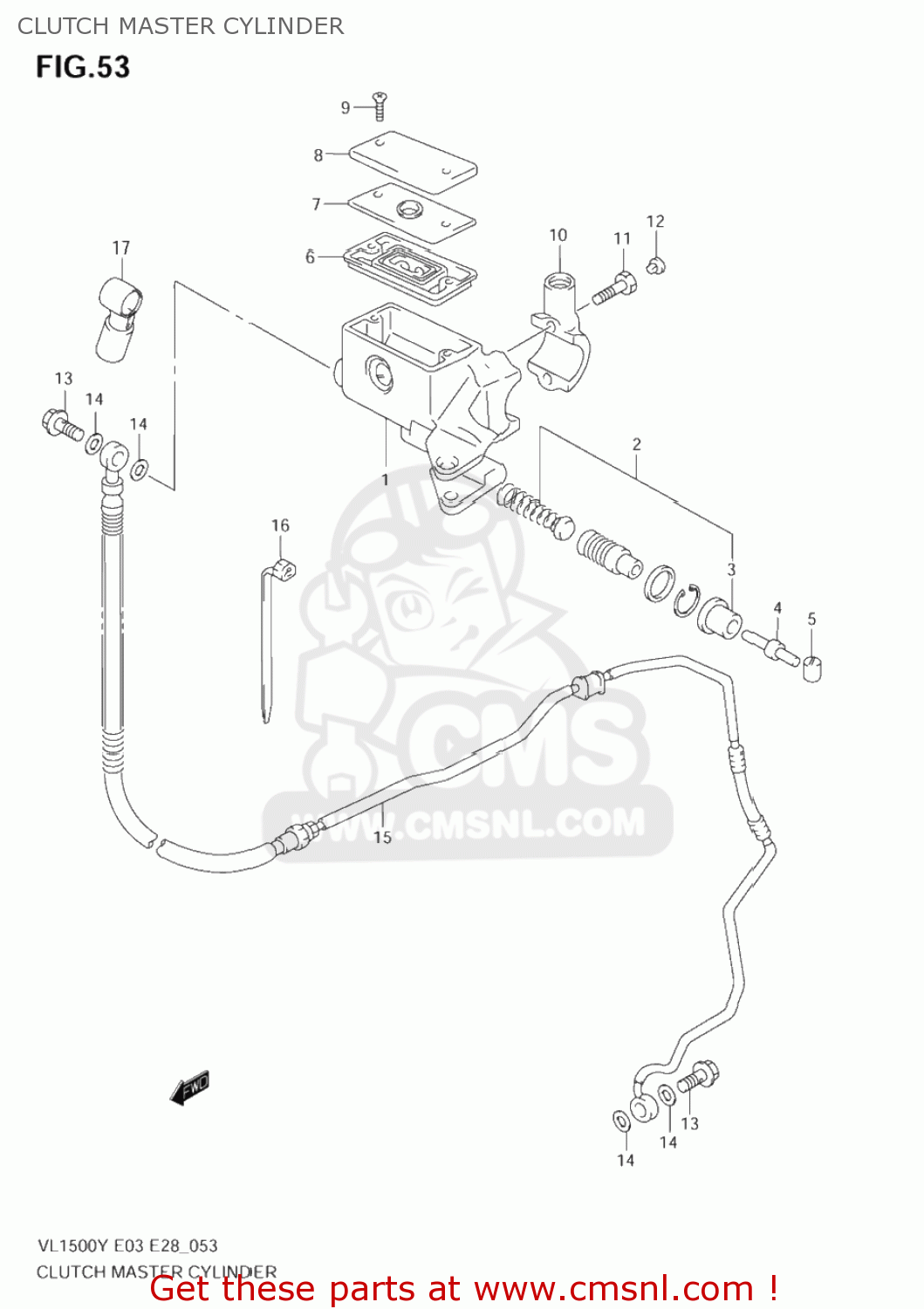

Clutch master cylinder diagram VL1500B INTRUDER 2002 (K2) USA (E03)

CLUTCH MASTER CYLINDER VL1500B INTRUDER 2002 (K2) USA (E03)

CLUTCH MASTER CYLINDER VL1500B INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5980010F00
ref: 1

CYLINDER ASSY,CLUTCH MASTER

€ 429.00

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987110F00
ref: 4

ROD,PUSH

€ 8.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966841C00
ref: 7

PLATE,DIAPHRAGM

€ 8.00

8

5966910F00
ref: 8

CAP

€ 59.50

9

0212204127
ref: 9

SCREW

€ 2.00

10

5967138A00
ref: 10

HOLDER

€ 37.50

11

0713006207
ref: 11

BOLT

€ 3.50

12

0925005008
ref: 12

CAP(OD:10)

€ 5.00

13

0936010042
ref: 13
09360-10062

BOLT UNION

€ 5.00

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15-1

5990010F00
ref: 15-1

HOSE ASSY,CLUTCH

€ 283.00

15-2

5990010F10
ref: 15-2

HOSE ASSY,CLUTCH

€ 256.00

16

0940725401
ref: 16

CLAMP(L:235)

€ 4.00

17

5971210F00
ref: 17

BOOT,CLUTCH MASTER CYLINDER

€ 6.00
