REAR CALIPER (MODEL X/Y/K1)

VL1500B INTRUDER 2002 (K2) USA (E03)

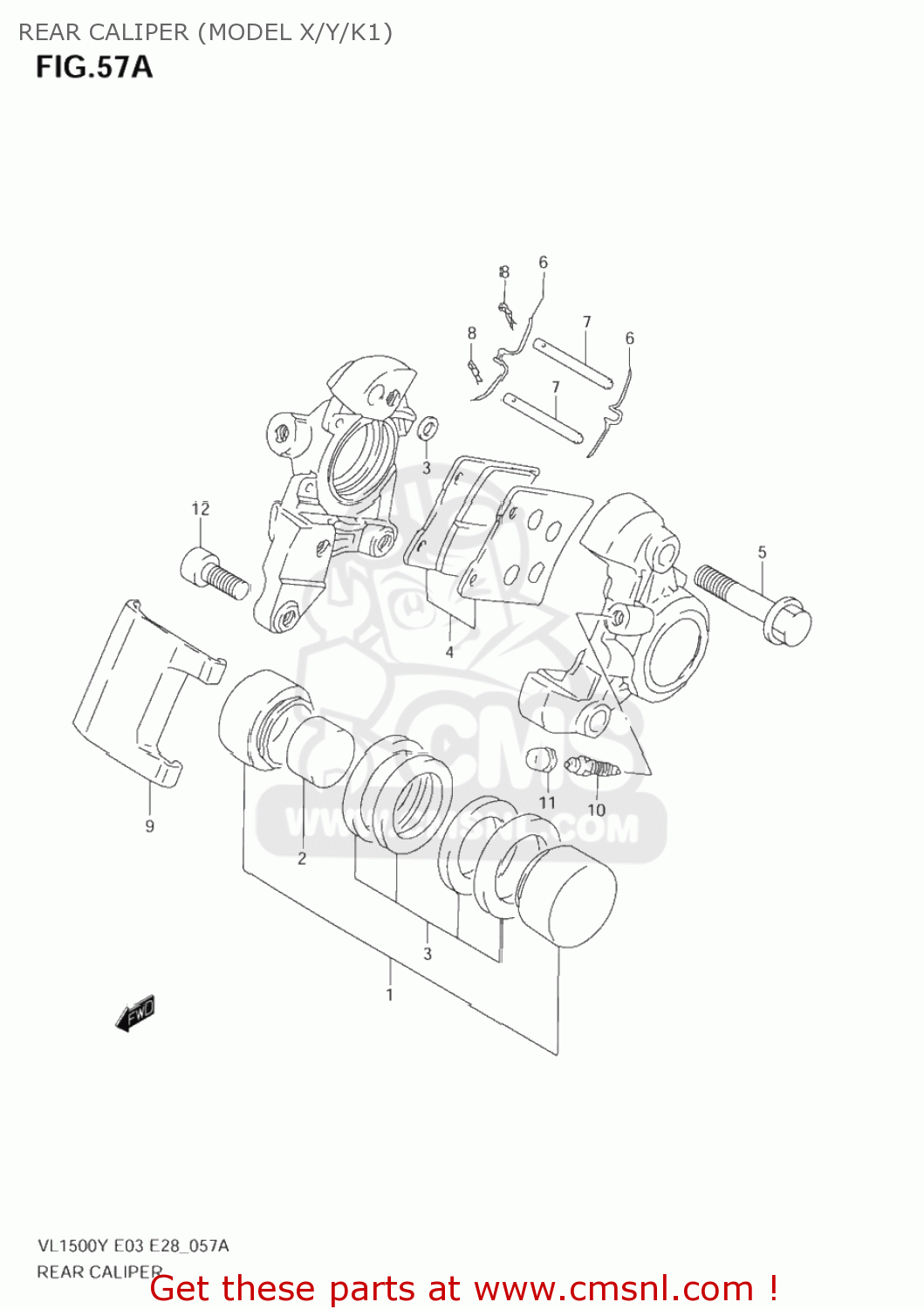

Rear caliper (model x/y/k1) diagram VL1500B INTRUDER 2002 (K2) USA (E03)

REAR CALIPER (MODEL X/Y/K1) VL1500B INTRUDER 2002 (K2) USA (E03)

REAR CALIPER (MODEL X/Y/K1) VL1500B INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910038B40
ref:
69100-38B50-999

CALIPER ASSEMBLY,REAR

€ 707.00



6910038B40
ref:
69100-38B50-999

CALIPER ASSEMBLY,REAR

€ 707.00



6910038B50
ref:
69100-38B50-999

CALIPER ASSY,R

€ 707.00



6910038B50
ref:
69100-38B50-999

CALIPER ASSY,R

€ 707.00



6910038B50
ref:
69100-38B50-999

CALIPER ASSY,R

€ 707.00

1

6910038850
ref: 1
69100-38851

PISTON SET

€ 176.00

2

6912610F00
ref: 2

INSULATOR,PISTON

€ 17.50

3

6910038830
ref: 3
69100-38831

SEAL SET,PISTON

€ 38.50

4-1

6910038860
ref: 4-1
69100-38870

PAD SET (NAS)

€ 57.50

4-2

6910038870
ref: 4-2

PAD SET (NAS)

€ 57.50

5

5914516700
ref: 5

BOLT,HOUSING

€ 8.00

6

5914316700
ref: 6

SPRING

€ 7.50

7

6914145000
ref: 7

PIN,PAD

€ 6.50

8

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

9-1

5915124A00
ref: 9-1

COVER

€ 18.00

9-2

5915124A01
ref: 9-2

COVER

€ 18.00

10

5912118410
ref: 10

BLEEDER

€ 8.00

11

5515666310
ref: 11

CAP,BLEEDER PLUG

€ 6.00

12

0713010203
ref: 12
07130-1020B

BOLT

€ 3.50
