FRONT FENDER (MODEL K3/K4)

VL1500B INTRUDER 2002 (K2) USA (E03)

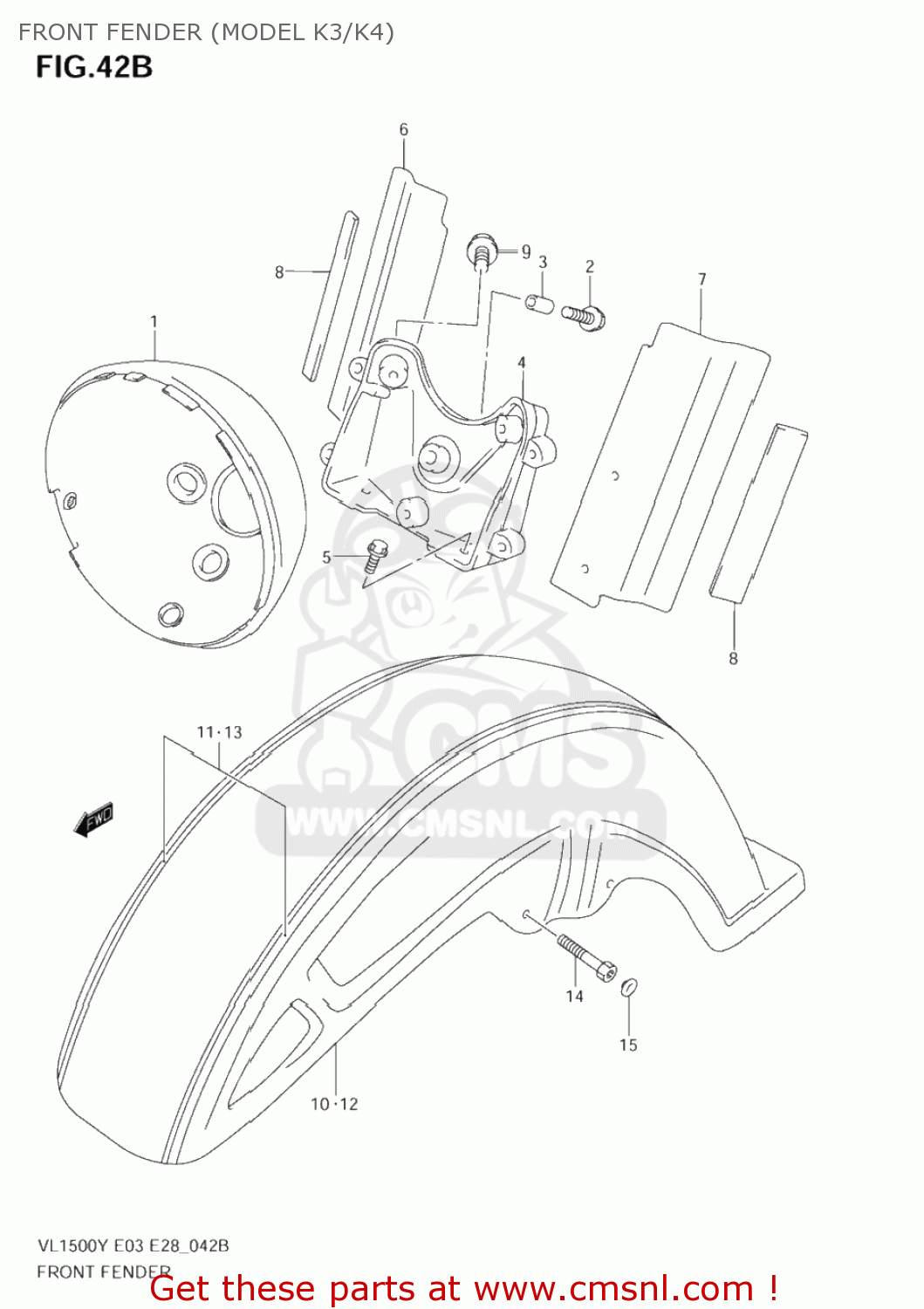

Front fender (model k3/k4) diagram VL1500B INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL K3/K4) VL1500B INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL K3/K4) VL1500B INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181010F00
ref: 1

HOUSING,HEADLAMP

€ 205.00

2

0911606147
ref: 2

BOLT(6X25)

€ 4.00

3

0918006076
ref: 3

SPACER(6.8X12X11)

€ 3.00

4

5185010F01
ref: 4

BRACKET,HEADLAMP HOUSING

€ 121.00

5

0155006163
ref: 5
01550-0616A

BOLT

€ 2.50

6

5187110F00
ref: 6

PLATE,HEADLAMP BRACKET,R

€ 26.00

7

5188110F00
ref: 7

PLATE,HEADLAMP BRACKET,L

€ 27.50

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

0913906027
ref: 9

SCREW(6X12)

€ 3.00

10-1

5310010F0033J
ref: 10-1

FENDER ASSY,FR(BLACK)

€ 588.00

10-2

5310010F00LA1
ref: 10-2

FENDER ASSY,FR

€ 649.00

10-3

5310010F00LT9
ref: 10-3

FENDER ASSY,FR

€ 545.50

11-1

6815010F10LW9
ref: 11-1

TAPE SET,FR FENDER

€ 78.00

11-2

6815010F10LA1
ref: 11-2

TAPE SET,FR FENDER

€ 62.00

11-3

6815010F10LT9
ref: 11-3

TAPE SET,FR FENDER

€ 65.00

12-1

5310010F20YAY
ref: 12-1

FENDER ASSY,FR(BLACK)

€ 555.50

12-2

5310010F20AAV
ref: 12-2

FENDER ASSY,FR

€ 701.50

12-3

5310010F20AAW
ref: 12-3

FENDER ASSY,FR

€ 732.50

13-1

6815010F20ADH
ref: 13-1

TAPE SET,FR FENDER

€ 73.00

13-2

6815010F20ADJ
ref: 13-2

TAPE SET,FR FENDER

€ 73.00

13-3

6815010F20ADC
ref: 13-3

TAPE SET,FR FENDER

€ 74.00

14

0713008407
ref: 14

BOLT

€ 3.50

15

0925006011
ref: 15

CAP(OD:11)

€ 2.50
