SIDE COVER (MODEL K1)

VL1500B INTRUDER 2002 (K2) USA (E03)

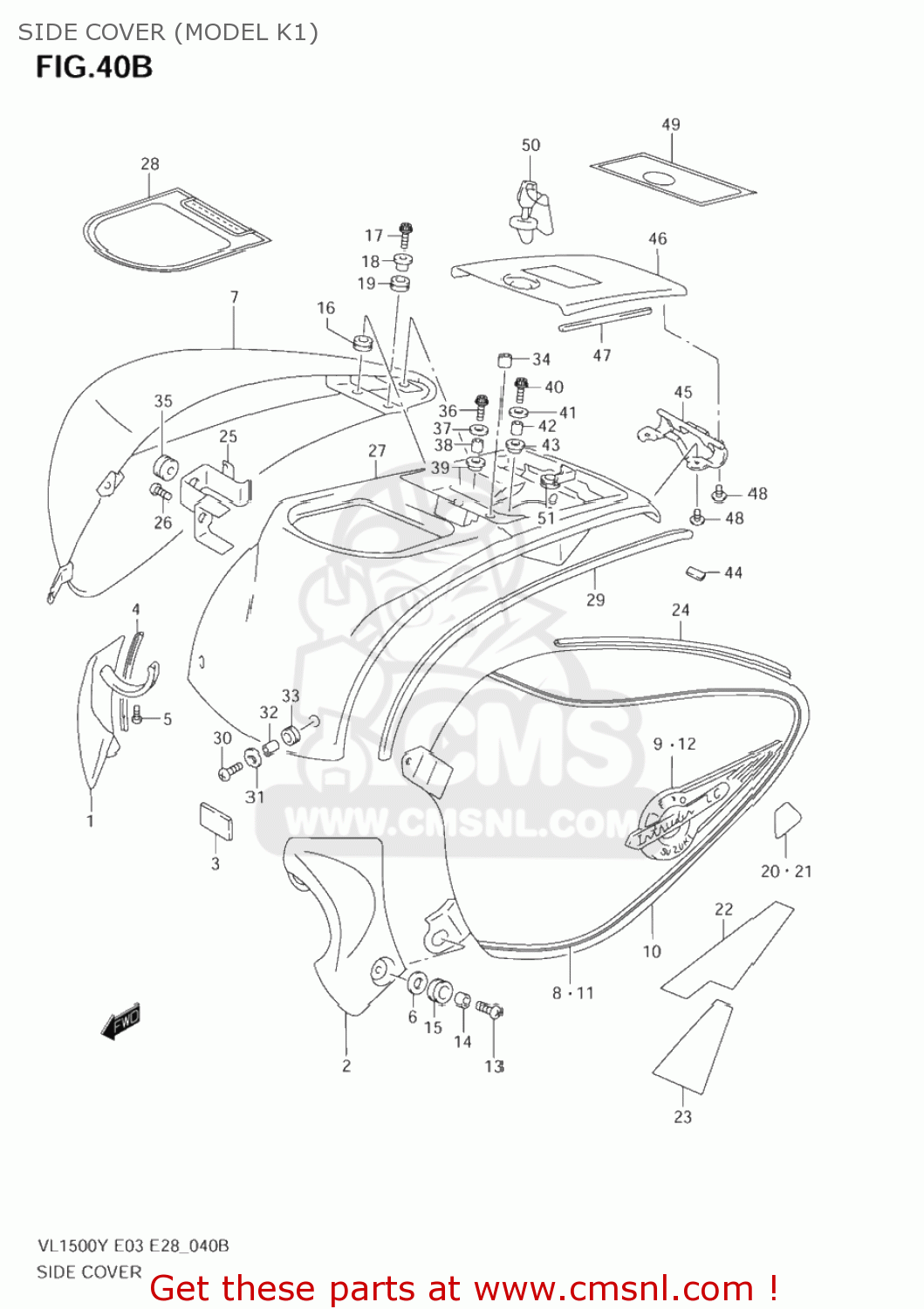

Side cover (model k1) diagram VL1500B INTRUDER 2002 (K2) USA (E03)

SIDE COVER (MODEL K1) VL1500B INTRUDER 2002 (K2) USA (E03)
SIDE COVER (MODEL K1) VL1500B INTRUDER 2002 (K2) USA (E03)
SIDE COVER (MODEL K1) VL1500B INTRUDER 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4751010F00
ref: 1
47510-10F01
COVER COMP,FRAME HEAD
€ 120.00
2
4752010F01
ref: 2
47520-10F02
COVER,FRAME HEAD,LEFT
4752010F01
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
4751410F00
€ 5.50
5
0913906028
ref: 5
SCREW(6X20)
0913906028
€ 3.50
6
0832201063
ref: 6
08322-0106B
WASHER
0832201063
€ 2.00
7-1
4780010F1033J
ref: 7-1
47800-10F20-33J
COVER ASSEMBLY,SIDE UPPER
€ 468.50
7-2
4780010F10FG1
ref: 7-2
47800-10F20-FG1
COVER VL1500/K
€ 517.50
7-3
4780010F10FG2
ref: 7-3
47800-10F20-FG2
COVER ASSY,SIDE UPR,R
€ 261.00
8-1
6813510F10BU8
ref: 8-1
68135-10F20-BU8
TAPE,COVER SIDE,UPPER
€ 75.50
8-2
6813510F10EZ7
ref: 8-2
68135-10F20-EZ7
TAPE,COVER SIDE UPR,R
€ 44.50
8-3
6813510F10EZ9
ref: 8-3
68135-10F20-EZ9
TAPE,COVER SIDE
€ 44.50
9
6811110F00
ref: 9
EMBLEM,TANK COVER,R
6811110F00
€ 61.00
10-1
4790010F1033J
ref: 10-1
47900-10F20-33J
COVER ASSEMBLY,SIDE UPPER
€ 486.50
10-2
4790010F10FG1
ref: 10-2
47900-10F20-FG1
COVER ASSY SID
€ 486.50
10-3
4790010F10FG2
ref: 10-3
47900-10F20-FG2
COVER ASSY,SIDE UPR,L
€ 261.00
11-1
6814510F10BU8
ref: 11-1
68145-10F20-BU8
TAPE,COVER SIDE,UPPER
€ 68.50
11-2
6814510F10EZ7
ref: 11-2
68145-10F20-EZ7
TAPE,COVER SIDE UPR,L
€ 44.50
11-3
6814510F10EZ9
ref: 11-3
68145-10F20-EZ9
TAPE,COVER SIDE UPR,L
€ 44.50
12
6812110F00
ref: 12
EMBLEM,TANK COVER,L
6812110F00
€ 61.00
13
0913906030
ref: 13
SCREW(6X16)
0913906030
€ 3.50
14
0918006260
ref: 14
SPACER(6.5X9X7.2)
0918006260
€ 3.50
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
16
4782210F00
ref: 16
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
17
0712006203
ref: 17
07120-0620B
BOLT
0712006203
€ 3.50
18
4782710F00
ref: 18
WASHER,SIDE UPR COVER
4782710F00
€ 5.00
19
4782610F00
ref: 19
CUSHION,SIDE UPR COVER
4782610F00
€ 7.50
20
4783810F00
ref: 20
TAPE,SIDE COVER UPR,R
€ 7.50
21
4784810F00
ref: 21
TAPE,SIDE COVER UPR,L
€ 7.50
22
4783510F00
ref: 22
CUSHION,SIDE UPR COVER,R
€ 45.00
23
4783610F00
ref: 23
CUSHION,SIDE UPR COVER,R
€ 18.50
24
4783710F00
ref: 24
47837-10FA0
MOLDING,SIDE UPPER COVER
€ 9.50
25
4785010F00
ref: 25
BRACKET,SIDE UPPER COVER
€ 9.00
26
0155006163
ref: 26
01550-0616A
BOLT
0155006163
€ 2.50
27
4782110F00
ref: 27
COVER,METER & FUEL INLET
4782110F00
€ 693.00
28
6889710F10
ref: 28
EMBLEM,METER COVER
6889710F10
€ 36.50
29
4782410F00
ref: 29
MOLDING,METER COVER
4782410F00
€ 9.00
30
0913906030
ref: 30
SCREW(6X16)
0913906030
€ 3.50
31
0916006036
ref: 31
WASHER(6.5X18X1.5)
0916006036
€ 1.50
32
0918006256
ref: 32
SPACER(6.5X9X5.7)
0918006256
€ 2.00
33
0932008051
ref: 33
09320-08066
CUSHION
0932008051
€ 7.50
34
0932106013
ref: 34
CUSHION
0932106013
€ 2.50
35
0932110007
ref: 35
CUSHION
0932110007
€ 4.50
36
0712006253
ref: 36
07120-0625A
BOLT,OIL PAN
0712006253
€ 2.50
37
0916006084
ref: 37
WASHER(6.5X18X1.6)
0916006084
€ 2.00
38
0918006265
ref: 38
SPACER(6.5X9X11)
0918006265
€ 4.50
39
4782510F00
ref: 39
CUSHION,METER COVER
4782510F00
€ 7.50
40
0712006163
ref: 40
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
41
0916006084
ref: 41
WASHER(6.5X18X1.6)
0916006084
€ 2.00
42
0918006256
ref: 42
SPACER(6.5X9X5.7)
0918006256
€ 2.00
43
0932008051
ref: 43
09320-08066
CUSHION
0932008051
€ 7.50
44
4782910F00
ref: 44
44612-13600
CUSHION,METER COVER RE
€ 3.00
45
4738010F00
ref: 45
47380-10F01
HINGE COMP,FUEL LID
€ 16.00
46
4781110F00
ref: 46
LID,FUEL INLET
4781110F00
€ 174.00
47
4781210F00
ref: 47
CUSHION,FUEL LID
4781210F00
€ 4.50
48
0214206123
ref: 48
02142-0612A
SCREW 6X12
0214206123
€ 2.00
49
6889810F10
ref: 49
EMBLEM,FUEL LID
€ 31.50
50
9570007860
ref: 50
LOCK SET,COVER
9570007860
€ 76.00
51
4782810F00
ref: 51
CUSHION,RR,L
4782810F00
€ 15.00
