REAR COMBINATION LAMP

VL1500T BOULEVARD C90 2009 (K9) USA (E03)

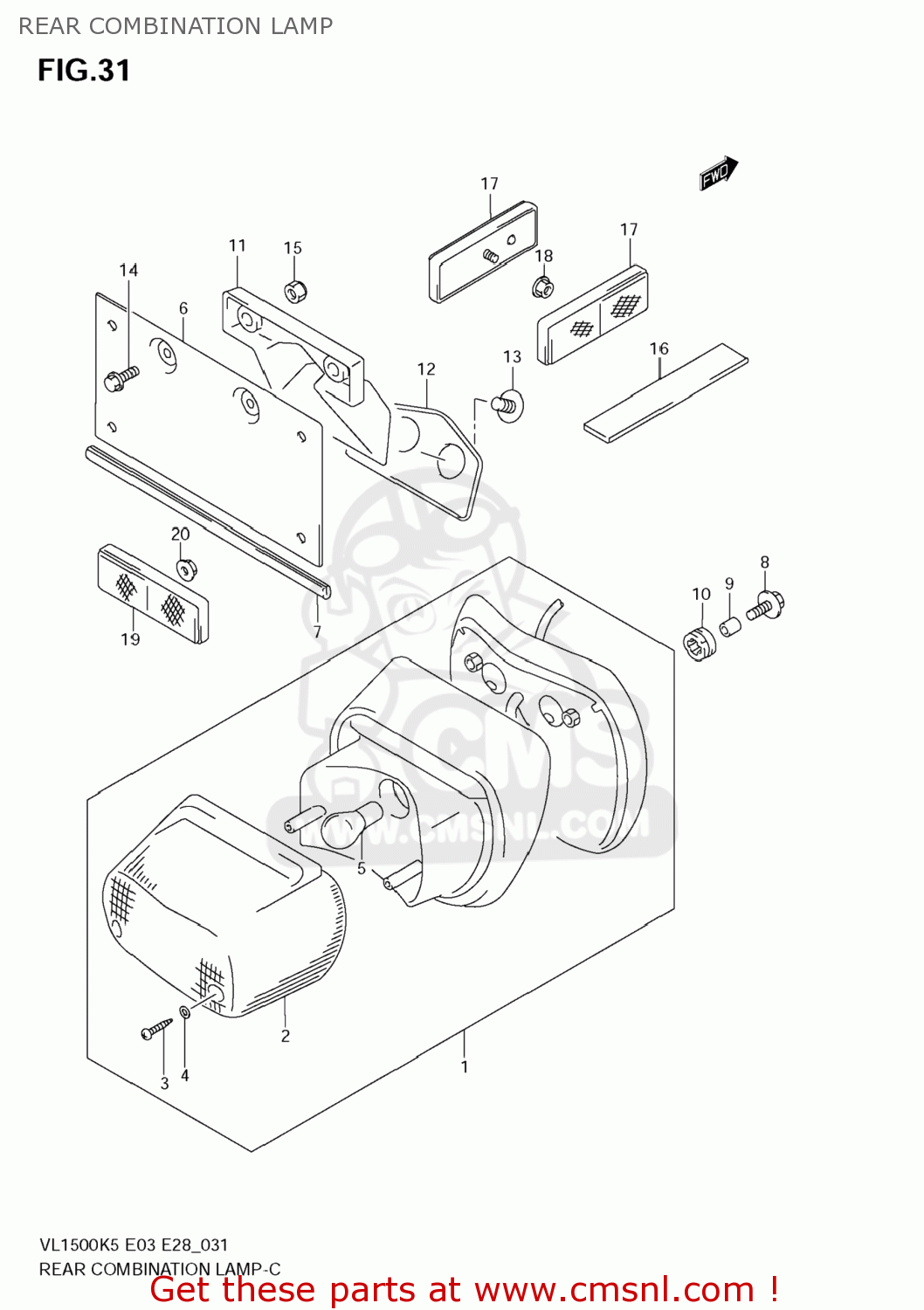

Rear combination lamp diagram VL1500T BOULEVARD C90 2009 (K9) USA (E03)

REAR COMBINATION LAMP VL1500T BOULEVARD C90 2009 (K9) USA (E03)
REAR COMBINATION LAMP VL1500T BOULEVARD C90 2009 (K9) USA (E03)
REAR COMBINATION LAMP VL1500T BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571010F30
ref: 1
LAMP ASSY,RR COMBINATION
€ 504.00
2
3571210F30
ref: 2
LENS
3571210F30
€ 50.00
3
0321104207
ref: 3
SCREW
0321104207
€ 1.50
4
3562743010
ref: 4
GASKET (NAS)
3562743010
€ 2.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
6
6346110F30
ref: 6
HOLDER,LICENSE PLATE
€ 0.00
7
9463519C00
ref: 7
MOLDING
9463519C00
€ 6.00
8
0911606115
ref: 8
BOLT(6X20)
0911606115
€ 2.00
9
0918006290
ref: 9
SPACER(6.5X10X12)
0918006290
€ 2.50
10
0932009010
ref: 10
CUSHION
0932009010
€ 2.50
11
3592810F00
ref: 11
STAY,LICENSE PLATE HOLDER
€ 119.00
12
3592910F00
ref: 12
CUSHION,LICENSE PLATE HOLDER
3592910F00
€ 8.00
13
0911606168
ref: 13
BOLT(6X16)
0911606168
€ 2.50
14
0913906067
ref: 14
SCREW(6X16)
0913906067
€ 3.00
15
0831310067
ref: 15
NUT
0831310067
€ 2.00
16
3365226E00
ref: 16
PROTECTOR(20X90)X1.0
3365226E00
€ 3.00
17
3597038B00
ref: 17
REFLEX REFLECTOR ASSY,RR
3597038B00
€ 27.00
18
083161005B
ref: 18
NUT
083161005B
€ 2.50
19
3597007F01
ref: 19
REFLECTOR ASSY,RR
3597007F01
€ 20.50
20
083161005B
ref: 20
NUT
083161005B
€ 2.50
