REAR CUSHION LEVER

VL1500T BOULEVARD C90 2009 (K9) USA (E03)

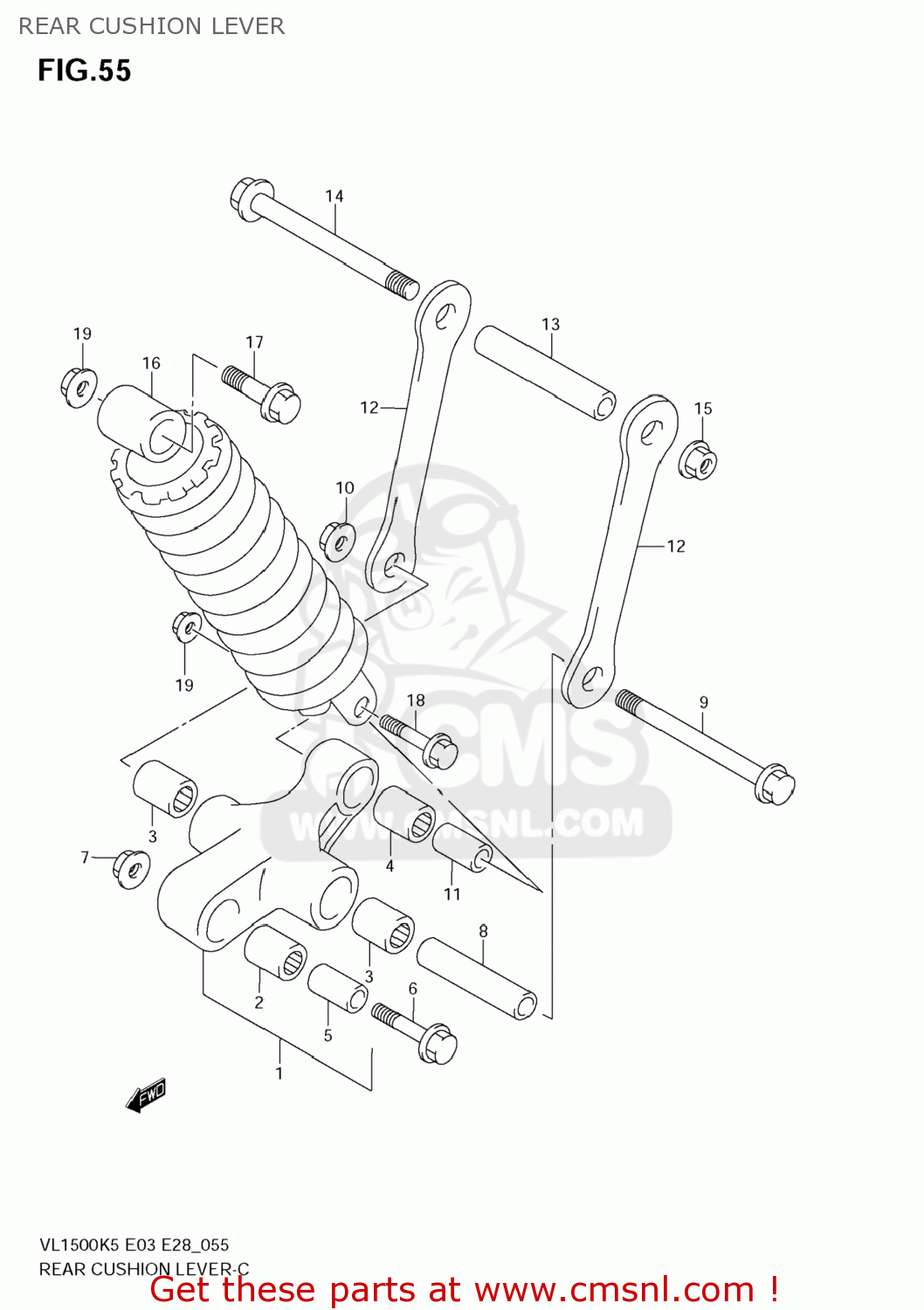

Rear cushion lever diagram VL1500T BOULEVARD C90 2009 (K9) USA (E03)

REAR CUSHION LEVER VL1500T BOULEVARD C90 2009 (K9) USA (E03)
REAR CUSHION LEVER VL1500T BOULEVARD C90 2009 (K9) USA (E03)
REAR CUSHION LEVER VL1500T BOULEVARD C90 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6260026840
ref: 1
LEVER SET,RR CUSHION
6260026840
€ 252.00
2
0926320074
ref: 2
BEARING(20X27X32)
0926320074
€ 25.00
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
0918014014
ref: 5
SPACER(14X20X34)
0918014014
€ 11.50
6
0910314016
ref: 6
BOLT(14X66)
0910314016
€ 6.50
7-1
0831931143
ref: 7-1
08319-3114B
NUT
0831931143
€ 9.00
7-2
083193114B
ref: 7-2
NUT
€ 9.00
8
0918014020
ref: 8
SPACER(14X20X99)
0918014020
€ 24.50
9
0910314017
ref: 9
BOLT(14X129)
0910314017
€ 14.50
10-1
0831931143
ref: 10-1
08319-3114B
NUT
0831931143
€ 9.00
10-2
083193114B
ref: 10-2
NUT
€ 9.00
11
6268440A10
ref: 11
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
12
6264110F00
ref: 12
ROD,RR CUSHION
€ 30.50
13
0918014020
ref: 13
SPACER(14X20X99)
0918014020
€ 24.50
14
0910314017
ref: 14
BOLT(14X129)
0910314017
€ 14.50
15
083193114B
ref: 15
NUT
€ 9.00
16-1
6210010F40
ref: 16-1
ABSORBER ASSY,RR SHOCK
€ 0.00
16-2
6210010F21
ref: 16-2
ABSORBER ASSY,RR SHOCK
€ 693.50
17
0910310064
ref: 17
BOLT(10X50)
0910310064
€ 4.50
18
0910310101
ref: 18
BOLT(10X54)
0910310101
€ 3.00
19-1
0831931103
ref: 19-1
08319-3110A
NUT
0831931103
€ 3.00
19-2
083193110B
ref: 19-2
NUT
083193110B
€ 3.00
